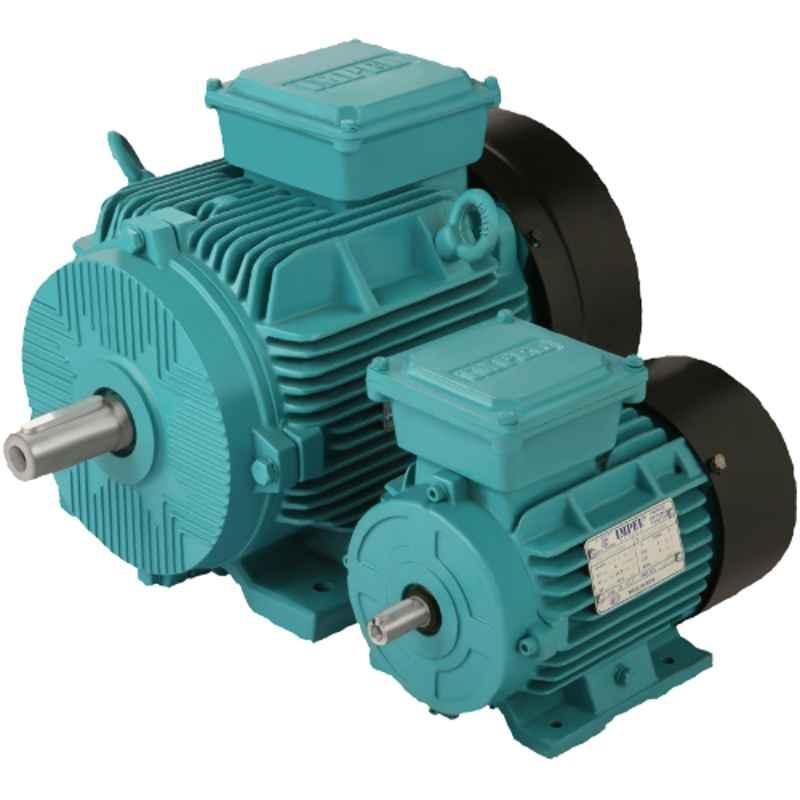

Impel 7.5HP 4 Pole 3 Phase IE3 Foot Mounted AC Induction Motor

Name: Impel 7.5HP 4 Pole 3 Phase IE3 Foot Mounted AC Induction Motor
Brand: IMPEL
SKU: MSNM9XYV3PYDKJ
Price: 24321 INR
Availability: OutOfStock

₹24,321 (Incl. of all taxes)

₹20,611 ₹3,710 GST

MRP ₹55,705 56% OFF

AVAILABLE ON REQUEST

Number of Poles

Efficiency

Motor Power

7.5 HP
5 HP

About This Product

Key Features

Longer Insulation & Bearing Lives.
Increased Tolerance of Overload Conditions.
Clock Wise & Anticlockwise as Seen From Drive End Side.
High Torque Level, High Power Factor & Low Temperature Rise.
Extended Winding Life, Lower Heat Output & Less Vibration.
Higher Tolerance for Increased Voltage Rates & Phase Imbalance.

Show All Key Features

Product Specifications

Brand	IMPEL
AC or DC	AC
Motor Power	7.5 HP
Mounting type	Foot Mounted
Power Rating	5.5 kW
Ambient Temperature	50 deg C
Class of insulation	F
Duty Cycle	S1
Efficiency	IE3
Frame Size	132s
Frequency	50 Hz ± 5%
Motor Winding	Copper
Number of Poles	4
Protection Class	IP44 & IP55
Speed	1500 rpm
Voltage	415 V ± 10%
Additional Details	Enclosure: TEFC Cooling Method: IC 41
Phase	Three Phase
Standards	IS12615:2018 & ISO 9001:2008
Warranty	2 Years
Country of origin	India
Manufacturer Details	Impetus Prolific Pvt Ltd, C/1/55, Rd Number D, Aji Vasahat, GIDC, Rajkot, Gujarat 360003
Packer Details	Impetus Prolific Pvt Ltd, C/1/55, Rd Number D, Aji Vasahat, GIDC, Rajkot, Gujarat 360003
Common/Generic Name	Induction Motor
Dimensions LxWxH	56x39x36 cm
Weight	93 kg

Show All Specifications

Product Details

Introducing the Impel 3 Phase 7.5 HP 4 Pole Foot Mounted AC Induction Motor, a high-performance electrical motor designed for a wide range of applications. As a member of the General Purpose Motors category, this IMPEL motor is perfect for general industrial usage, ensuring efficient and reliable performance. The foot-mounted design allows for easy installation and maintenance. With a duty cycle of S1, this motor is built to handle continuous operation with ease. Enclosed in a TEFC enclosure, it offers protection against dust, contaminants, and moisture, making it suitable for use in harsh environments. With a power rating of 7.5 HP and 4 poles, this motor provides optimal power and torque for various applications. Operating on three-phase AC power, it offers enhanced efficiency and durability. Upgrade to the IMPEL 3 Phase 7.5 HP 4 Pole Foot Mounted AC Induction Motor and experience the pinnacle of performance and reliability.
