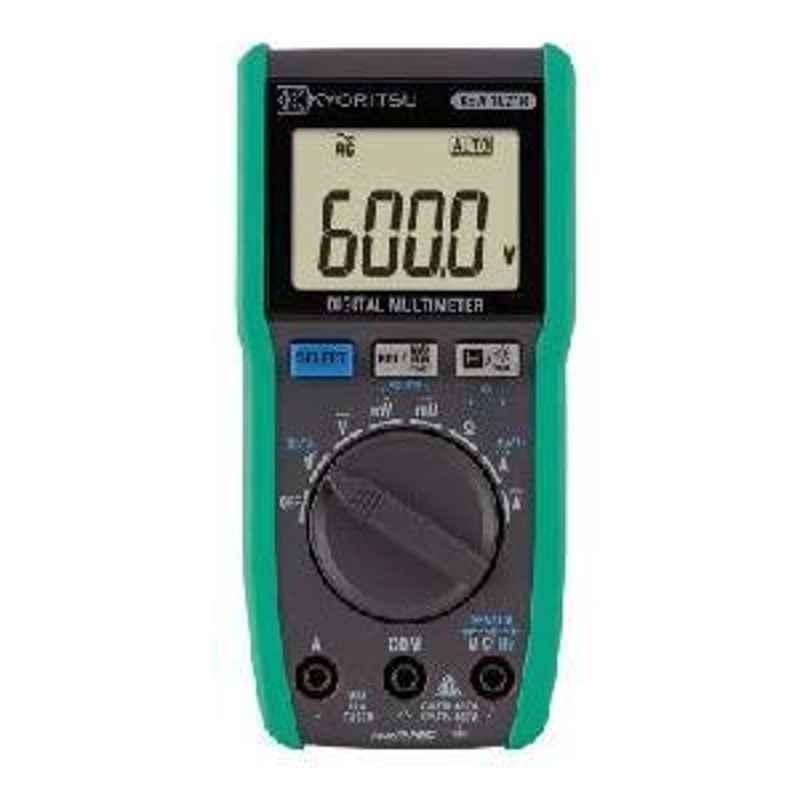

Kyoritsu Digital Multimeter 6-600V KEW-1021R

Name: Kyoritsu Digital Multimeter 6-600V KEW-1021R
Brand: Kyoritsu
SKU: MSN75DQGD1YD92
Price: 1806293 INR
Availability: OutOfStock

₹9,169 (Incl. of all taxes)

₹7,770 ₹1,399 GST

MRP ₹10,701 14% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Elegant and easy to use cabinet..
Large display with 6000 counts and backlight..
Enhanced current measuring function using an external clamp sensor..
Two detachable holders, flat and wing type..
Accurate reading with True RMS..
IEC 61010-1 CAT IV 300V / CAT III 600V / CAT II 1000V, IEC 61010-2-033, IEC 61010-031, IEC 61326-2-2 (EMC), EN 50581 (RoHS)..
Wing-type holder, Flat-type holder, 7066A (Test leads), 8919 (Ceramic fuse [10A/600V]) × 1 (included), 9097 (Carrying case), R03 × 2, Instruction manual..

Show All Key Features

Product Specifications

Brand	Kyoritsu
AC Voltage Accuracy	±1.0%rdg ±3dgt (40-500Hz)
AC Voltage Range	6/60/600V
Capacitance	60/600nF/6/60/600/1000µF
Capacitance Accuracy	±2.0%rdg ±5dgt (60/600nF), ±5.0%rdg ±5dgt (6/60/600/1000µF)
Continuity Buzzer	600Ω (Buzzer sounds below 90Ω)
Customer Care Number	78880 95810/95525 97468
DC Voltage Accuracy	±0.5%rdg ±3dgt
DC Voltage Range	6/60/600V
Dimensions	155 (L) x 75 (W) x 40 (D) mm
Diode Test	Open Loop Voltage: < 3.0V
Frequency	ACV 99.99/999.9Hz/9.999/99.99kHz ±0.1%rdg ±3dgt, ACA 99.99/999.9Hz/9.999kHz ±0.1%rdg ±3dgt
Model No	KEW-1021R
Power source	R03 (1.5V) × 2
Resistance Accuracy	±0.5%rdg ±4dgt (600Ω), ±0.5%rdg ±2dgt (6/60/600kΩ/6MΩ), ±1.5%rdg ±3dgt (40MΩ)
Resistance Range (Ohm)	600Ω/6/60/600kΩ/6/40MΩ
Type	Digital
Type of Product	Digital Multimeter
Weight	250 g (Approx)
Country of origin	Japan
Manufacturer Details	Kyoritsu 480 Sakado, Uwa-cho, Seiyo City, Ehime, 797-0045 Japan TEL 81-894-62-1171 / FAX 81-894-62-5531
Packer Details	Kyoritsu 480 Sakado, Uwa-cho, Seiyo City, Ehime, 797-0045 Japan TEL 81-894-62-1171 / FAX 81-894-62-5531
Importer Details	Kyoritsu KEW India Instruments Pvt. Ltd. 4, S P Nagar, Navrangpura, Ahmedabad-380006. India.T: +91 98246 80404; F : +91 79 2640 9942W: www.kew-ltd.co.in E: info.w@kew-india.co.in
Common/Generic Name	Digital Multimeter
Dimensions LxWxH	155x75x40 mm
Weight	217 g

Show All Specifications

Product Details

The Kyoritsu Digital Multimeter 6-600V KEW-1021R is one of the best selling products in the market. This device gives you accurate reading, helping you measure the electric supply. Well with this product you can measure voltage, current, and resistance of a circuit. The other name for this device is volt-ohm-milliammeter. This multimeter can be used to measure batteries, household wirings, electric motors and power supplies.
