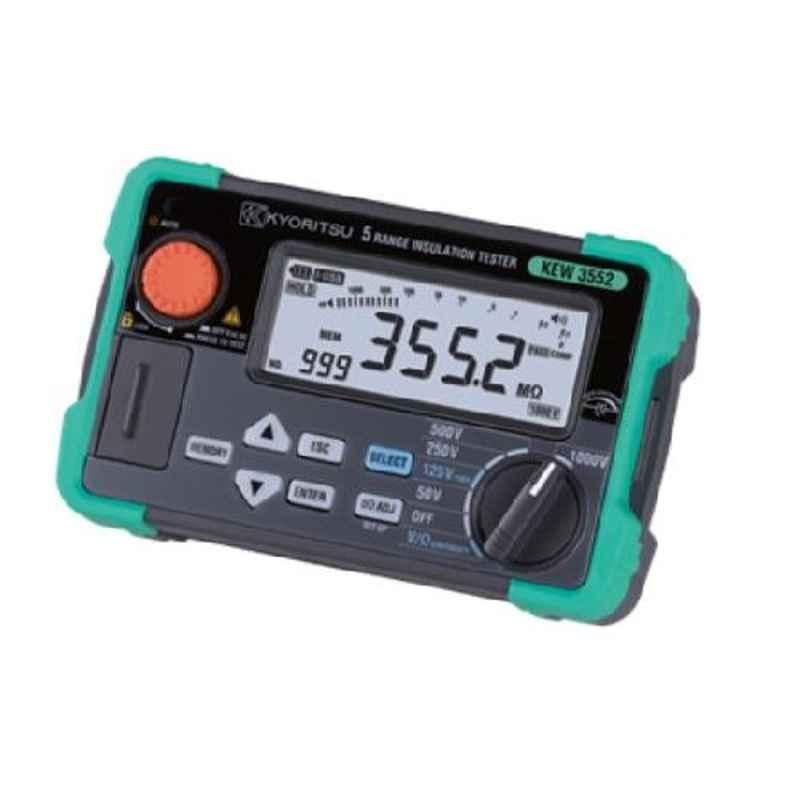

Kyoritsu KEW3552 Digital Insulation/Continuity Tester with USB Interface

Name: Kyoritsu KEW3552 Digital Insulation/Continuity Tester with USB Interface
Brand: Kyoritsu
SKU: MSN153VMR7ZJK3
Price: 54460 INR
Availability: InStock

₹54,460 (Incl. of all taxes)

₹46,152 + ₹8,308 GST

MRP ₹77,098 29% OFF

Buy More & Save More

Qty 2

₹54,051 /pc

29% OFF

Qty 3

₹53,847 /pc

30% OFF

Qty 4+

₹53,643 /pc

30% OFF

Sign Up & Earn 10 Mogli Coins

& save extra money on your next purchase.

Get at

₹54,360

with Coupon & Offers

Extra ₹100 OFF

All Coupons & Offers

India’s Leading B2B Online Store

4.7

google_logo Avg. Rating

50+ Lac

Orders Delivered

93%

Happy Customers

Money Back

Genuine Product

Easy Return

Get GST Invoice

Secure Payments

365 Days Help Desk

About This Product

Key Features

Fastest Measurement Speed: 0.5sec.
Six Ranges Available for Insulation Resistance Test: 50, 100, 125, 250, 500 & 1000V.
Insulation Measurement Upto: 40Gω & Diagnostic Insulation Test: PI, DAR.
Mid Scale Value: 2MΩ (50V)/5MΩ(100V/125V)/10MΩ(250V)/100MΩ(500V)/200MΩ(1000V).

Show All Key Features

Product Specifications

Brand	Kyoritsu
Accessories	7260 (Test Leads with Remote Control Switch), 7261A (Test Leads with Alligator Clip), 8017A (Extension Prod Long), 9173 (Carrying Case), 9121 (Shoulder Strap), LR6 (AA)(1.5V)x4 & Instruction Manual
Accuracy	Continuty Accuracy: ±2.5% rdg ±8dgt First Effective Measuring Range Accuracy: ±2% rdg ±2dgt Second Effective Measuring Range Accuracy: ±5% rdg ±4dgt
Battery Type	AA
Battery Voltage	1.5 V
Customer Care Number	78880 95810/95525 97468
Dimensions	97x156x46 mm
Interface	USB
Measuring Range	Continuty Auto Range: 40/400/4000 Ω Auto Range: 100 MΩ (50V)/200 MΩ (100V)/250 MΩ (125V)/500 MΩ (250V)/20 GΩ (500V)/40 GΩ (1000V) First Effective Measuring Range: 0.100-10 MΩ (50V)/0.100-20 MΩ (100V)/0.100-25 MΩ (125V)/0.100-50 MΩ (250V)/0.100-500 MΩ (500V)/0.100-1000 MΩ (1000V) Second Effective Measuring Range: 0.050-0.099 MΩ (50/100/125/250/500/1000 V)/10.01-100 MΩ (50V)/20.01-200 MΩ (100V)/25.01-250 MΩ (125V)/50.1-500 MΩ (250V)/501-2000 MΩ (500V)/1001-4000 MΩ (1000V)
Number of Batteries	4
Output Current	Continuty Output Short Circuit Current: 200 mA
Output Voltage	Continuty Output Voltage on Open Circuit: 5 V
Rated Current	1-1.1 mA
Short Circuit Current	Max. 1.5 mA
Standards	IEC61010 CAT III 600V/CAT IV 300V IEC61557-1,2,4 IEC61326-1 & 2-2 IEC60529 (IP40)
Test Voltage	50, 100, 125, 250, 500 & 1000 V
Voltage	AC: 2-600 V at 45-65 Hz & DC: 2-600 V
Warranty	12 Months
Weight	490 g
Country of origin	Japan
Manufacturer Details	Kyoritsu 480 Sakado, Uwa-cho, Seiyo City, Ehime, 797-0045 Japan TEL 81-894-62-1171 / FAX 81-894-62-5531
Packer Details	Kyoritsu 480 Sakado, Uwa-cho, Seiyo City, Ehime, 797-0045 Japan TEL 81-894-62-1171 / FAX 81-894-62-5531
Importer Details	Kyoritsu KEW India Instruments Pvt. Ltd. 4, S P Nagar, Navrangpura, Ahmedabad-380006. India.T: +91 98246 80404; F : +91 79 2640 9942W: www.kew-ltd.co.in E: info.w@kew-india.co.in
Common/Generic Name	Tester
Dimensions LxWxH	97x156x46 mm
Weight	490 g

Show All Specifications

Product Details

The Kyoritsu KEW3552 Digital Insulation/Continuity Tester offers rapid and precise insulation resistance measurements across six voltage ranges, from 50V up to 1000V, reaching up to 40GÎ©. Its continuity auto-range supports 40 to 4000Î© with a short circuit current of 200mA, ensuring reliable detection. Featuring a compact design (97x156x46 mm) and a lightweight build of 490g, it integrates a USB interface for seamless data transfer. With a fastest measurement speed of just 0.5 seconds and advanced diagnostic tests like PI and DAR, this tester delivers professional-grade performance for electrical maintenance and troubleshooting.
