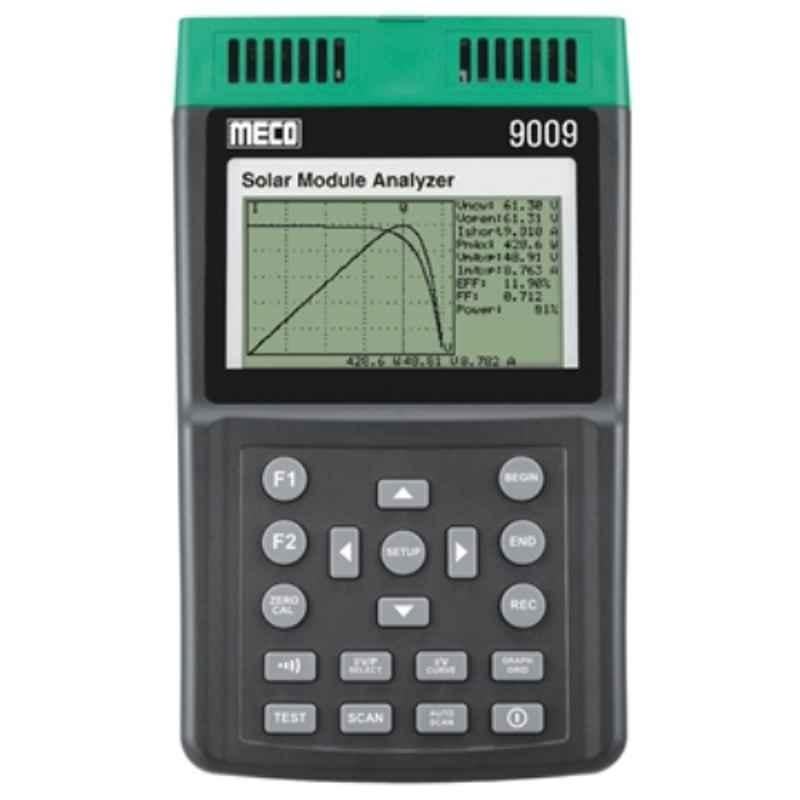

Meco 9009 60V 12A Solar Module Analyzer

Name: Meco 9009 60V 12A Solar Module Analyzer
Brand: Meco
SKU: MSN457MWOMWN9J
Price: 151488 INR
Availability: OutOfStock

₹151,488 (Incl. of all taxes)

₹128,379 ₹23,109 GST

MRP ₹185,850 18% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Manual Single Point I-V Test, Max. Voltage (Vmaxp) at Pmax & Max. Current (Imaxp) at Pmax.
Real Time data Logging, RS232C (to USB Bridge) Cable for PC & Communicate with PC via USB Cable.
Voltage at Open Circuit (Vopen), Current at Short Circuit (Ishort) & I-V Curve with Cursor to Display each Data Point.
Measures Vnow, Voc, Isc, Pmax, VmaxP, ImaxP, Efficiency & Fill Factor with PC Connectivity, Memory Record & Backlight Display.

Show All Key Features

Product Specifications

Brand	Meco
AC Adapter	AC 110V or 220V input, DC 15V / 3A output
Additional Details	Standard Light Source Setting: 10 W/m2 -1000 W/m2 Solar Panel Area Setting: 0.001 m2-9999 m2
Battery Capacity	3400 mAh
Battery Type	Rechargeable Lithium Battery
Battery Voltage	60 V
DC Current	0.01 - 12 Amp
DC Voltage	0 - 60 V
Data Logging	100 Records
Display Type	LCD with Backlight
Model	9009
Notes	Images are for Reference Purposes Only
Operating Temperature Range	5 to 50 deg C
Package Contents	1 Pc Lithium Battery 11.1V (Rechargeable), 1 Pc RS232C (to USB Bridge) Cable, 1 Pc Software CD, 1 Pc AC Adapter, Kelwin Clips (2 Clips, Banana Plugs) x 1 Set (10 Max, 12A for 1 minute)
Power Consumption	500 W
Resolution	1 mV, 1 mA
Sampling Time	0-99 min
Standards	EN 61326- 1:2006 EN 61010- 1:2001 CAT I 60V Pollution Degree 2
Storage Temperature Range	-20 to 60 deg C
Temperature Coefficient	0.1% of Full Scale/deg C(<18 deg C or >28 deg C)
Country of origin	India
Manufacturer Details	MECO INSTRUMENTS PVT. LTD., Plot No. EL-1, MIDC Electronic Zone, TTC Industrial Area, Mahape, Navi Mumbai, 400710
Packer Details	MECO INSTRUMENTS PVT. LTD., Plot No. EL-1, MIDC Electronic Zone, TTC Industrial Area, Mahape, Navi Mumbai, 400710
Common/Generic Name	Power Analysers
Dimensions LxWxH	25.7x15.5x5.7 cm
Weight	1.16 kg

Show All Specifications

Product Details

The Meco 9009 60V 12A Solar Module Analyzer is a high-performance power analyzer designed for efficient solar panel testing. With a wide range of attributes including AC/DC voltage and current measurement, standard light source and solar panel area settings, and a sampling time of up to 99 minutes, this analyzer provides accurate and reliable data to optimize solar power systems. Key features such as manual single point I-V test, real-time data logging, and PC connectivity via USB cable make it easy to analyze key parameters like Vnow, Voc, Pmax, and efficiency. Enhance your solar panel testing with the Meco 9009 Solar Module Analyzer.
