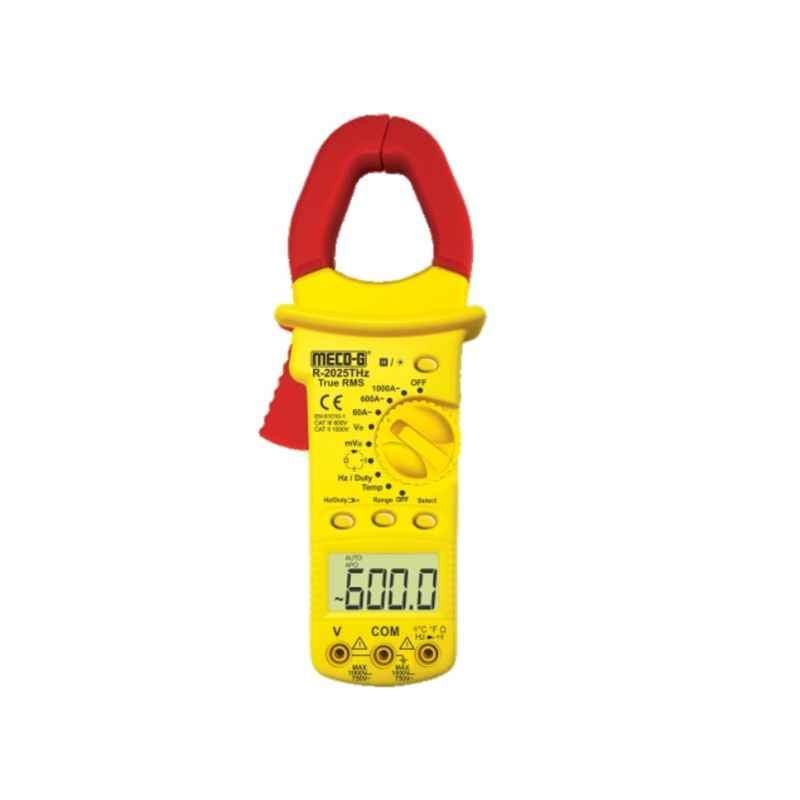

MECO-G 1000A AC Digital Auto Ranging Clamp Meter, R-2025THz

Name: MECO-G 1000A AC Digital Auto Ranging Clamp Meter, R-2025THz
Brand: MECO-G
SKU: MSN2VZF4PSO0UR
Price: 2079 INR
Availability: OutOfStock
Rating: 4 (5 reviews)

4.0

(5 Reviews)

₹2,079 (Incl. of all taxes)

₹1,761 + ₹318 GST

MRP ₹2,520 17% OFF

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

Auto Power-Off: If the meter is idle for 15 minutes, the meter will automatically turn off.
Low Battery Indication.
Data Hold.
Back Light.

Show All Key Features

Product Specifications

Brand	MECO-G
AC Current Accuracy	± (2.5% of reading + 10 digits)
AC Current Range	60A/600A/1000A
AC Current Resolution	60A: 10mA 600A: 100mA 1000A: 1A
AC Voltage Accuracy	600mV: ± (1.2% of reading + 8 digits) 6 to 600 V: ± (1.2% of reading + 6 digits) 750 V: ± (1.2% of reading + 8 digits)
AC Voltage Range	600mV/6V/60V/600V/750V
AC Voltage Resolution	600mV: 0.1mV 6V: 1mV 60V: 10mV 600V: 100mV 750V: 1V
Accuracy	Duty Cycle: ±1%
Battery Type	6F22
Battery Voltage	9 V
Capacitance Accuracy	± (8.0% of reading ± 5 digits)
Capacitance Range	60nF/600nF/6µF/60µF/400µ/20mF
Counts	6000
Customer Care Number	0091-22-24179467,24149657
DC Voltage Accuracy	600mV: ± (0.8% of reading + 5 digits) 6 to 600 V: ± (0.8% of reading + 3 digits) 1000 V: ± (1.0% of reading + 5 digits)
DC Voltage Range	600mV/6V/60V/600V/1000V
DC Voltage Resolution	600mV: 0.1mV 6V: 1mV 60V: 10mV 600V: 100mV 1000 V: 1V
Dimensions	140x70x35 mm
Display Digit	3-5/6
Duty Cycle	0.01 to 99.9%
Frequency Accuracy	± 1.0% ± 5 Digits
Frequency Range	0 to 60 MHz
Item Code	R-2025THz
Items in Pack	1 Piece
Jaw Opening	45 mm
Operating Humidity	≤ 80% RH
Operating Temperature	0 to 40 deg C
Package Contents	1 Pc Test Leads, 1 Pc K-Type Thermocouple Leads, Carrying Case, Instruction Manual
Power source	Battery
Resistance Accuracy	± (1.5% of reading + 5 digits)
Resistance Range	600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ
Resistance Resolution	600Ω: 100mΩ 6KΩ: 1Ω 60KΩ: 10Ω 600KΩ: 100Ω 6MΩ: 1KΩ 60MΩ: 10KΩ
Resolution	Duty Cycle: 0.01%
Sensing	True RMS
Specifications	GB4793-1, IEC 61010-1, CAT II 600V
Storage Temperature	-10 to 50 deg C
Temperature Accuracy	-40 to 150 deg C: ± 1% + 4 digits 150 to 1370 deg C: ±2% + 3 digits
Temperature Range	-40 to 1370 deg C
Warranty	6 Months
Weight	180 g
Country of origin	India
Manufacturer Details	Spark instruments, 102 City Apartment 127 Saraswati Nagar University Road , Gwalior, Madhya Pradesh-474002, India , Phone: +91-8448233444
Packer Details	Spark instruments, 102 City Apartment 127 Saraswati Nagar University Road , Gwalior, Madhya Pradesh-474002, India , Phone: +91-8448233444
Common/Generic Name	Clamp Meter
Dimensions LxWxH	185x65x28 mm
Weight	180 g

Show All Specifications

Product Details

The MECO-G 1000A AC Digital Auto Ranging Clamp Meter is a great choice for those who need a reliable and accurate clamp meter. It features a large jaw opening for easy clamping, auto ranging for easy use, and a backlit LCD display for easy reading. The MECO-G clamp meter is a great choice for measuring dc voltage and current, as well as ac current. It has a range of 600mV to 6V, 60V to 600V, and 1000V, making it suitable for a variety of applications. The ac current range is 60A to 600A, and 1000A, with an accuracy of � (2.5% of reading + 10 digits). The clamp meter also features a resistance accuracy of � (1.5% of reading + 5 digits).
