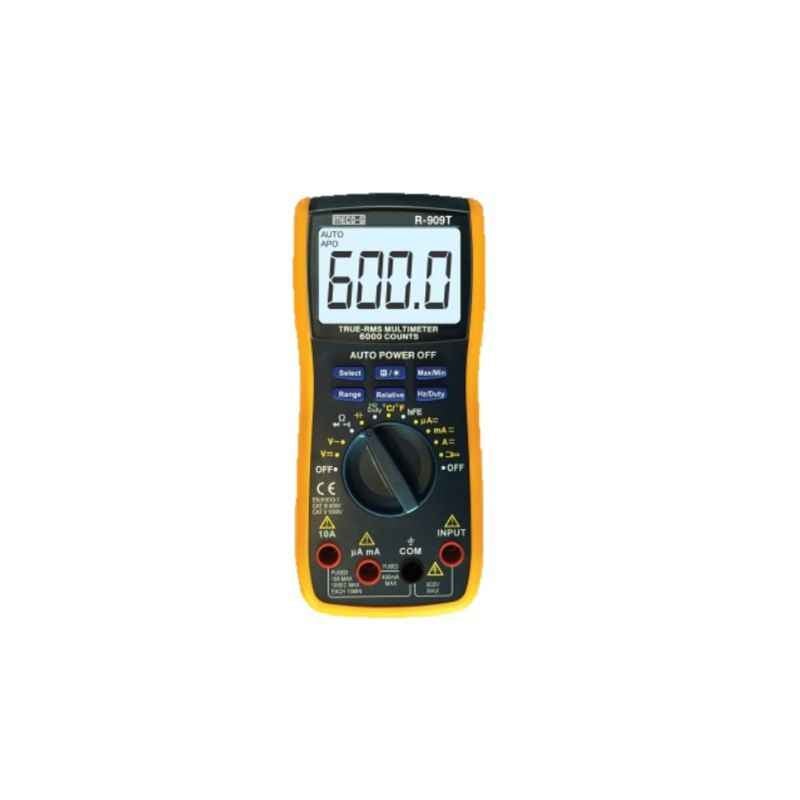

MECO-G Digital Auto Ranging Multimeter, R-909T

Hover to Zoom

MECO-G Digital Auto Ranging Multimeter, R-909T

Check for price and availability.

Key features

  • Data Hold.
  • Back Light.
  • Low Battery Indication.
  • Open Circuit Voltage: About 1.5V.
  • Auto Power-off: If the meter is idle for 15 minutes, the meter will automatically turn off.

Product Specifications

Brand MECO-G
Frequency Range

Upto 60 MHz

DC Voltage Range

600 mV-1000 V

Counts

6000

Battery Voltage

9 V

AC Current Accuracy

±2.0% + 10 Digit

Sensing

True RMS

AC Current Range

600µA to 10Amp

Includes

Test Leads, Instruction Manual, K-Type Thermocouple Leads & Carrying Case

AC Voltage Resolution

600mV: 0.1mV

6V: 1mV

60V: 10mV

600V: 100mV

750V: 1V

Package Contents

1 Pc Test Leads, 1 Pc K-Type Thermocouple Leads, Carrying Case, Instruction Manual

Resistance Accuracy

±(1.5% + 5 Digit)

Capacitance Accuracy

±(0.8% + 5 digit)

Specifications

GB4793-1, IEC 61010-1, CAT II 600V

Capacitance Range

60nF/600nF/6µF/60µF/600µF/20µF

Power source

Battery

AC Voltage Range

600mV to 750V

DC Voltage Accuracy

±(0.8% + 5 dgt)

Display Digit

3-5/6

Item Code

R-909T

AC Voltage Accuracy

±(1.2% rdg + 8 Digits)

Resistance Range

600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ

Storage Temperature

-10 to 50 deg C

Items in Pack

1 Piece

Operating Temperature

0 to 40 deg C

Capacitance Resolution

60nF: 0.01nF

600nF: 0.1nF

6μF: 0.001μF

60μF: 0.01μF

600μF: 0.1μF

20μF: 0.1μF

Temperature Accuracy

±5% + 4 digit

Warranty

6 Months

DC Voltage Resolution

600mV: 0.1mV

6V: 1mV

60V: 10mV

600V: 100mV

1000 V: 1V

Resistance Resolution

600Ω: 0.1Ω

6KΩ: 0.001kΩ

60KΩ: 0.01kΩ

600KΩ: 0.1kΩ

6MΩ: 0.001MΩ

60MΩ: 0.01MΩ

DC Current Resolution

600µA: 0.1µA

6000µA: 1µA

60mA: 0.01mA

600mA: 0.1mA

6A: 0.001A

10A: 0.01A

Battery Type

6F22

Weight

360 g

Frequency Accuracy

± 1.0% ± 5 Digits

Resistance Range (Ohm)

600 ohm to 60 Mohm

Operating Humidity

≤ 80% RH

DC Current Accuracy

±1.5% + 5 Digit

DC Current Range

600µA to 10Amp

Temperature Range

-40 deg - 1370 deg C

Capacitance

60nF to 20µF

AC Current Resolution

600µA: 0.1µA

6000µA: 1µA

60mA: 0.01mA

600mA: 0.1mA

6A: 0.001A

10A: 0.01A

Display

3⅚ Digits LCD Display

Safety Standard

As per GB4793-1, IEC 61010-1, CAT II 600V.

Moglix Guarantees

  • Genuine Products
  • Secure Payment
  • Easy Returns

Product Information

MECO-G Digital Auto Ranging Multimeter, R-909T is a premium quality Multimeters from MECO-G. Moglix is a well-known ecommerce platform for qualitative range of Multimeters. All MECO-G Digital Auto Ranging Multimeter, R-909T are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture MECO-G Digital Auto Ranging Multimeter, R-909T, are sourced from the most reliable and official Multimeters vendors, chosen after performing detailed market surveys. Thus, MECO-G products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of MECO-G Multimeters.
