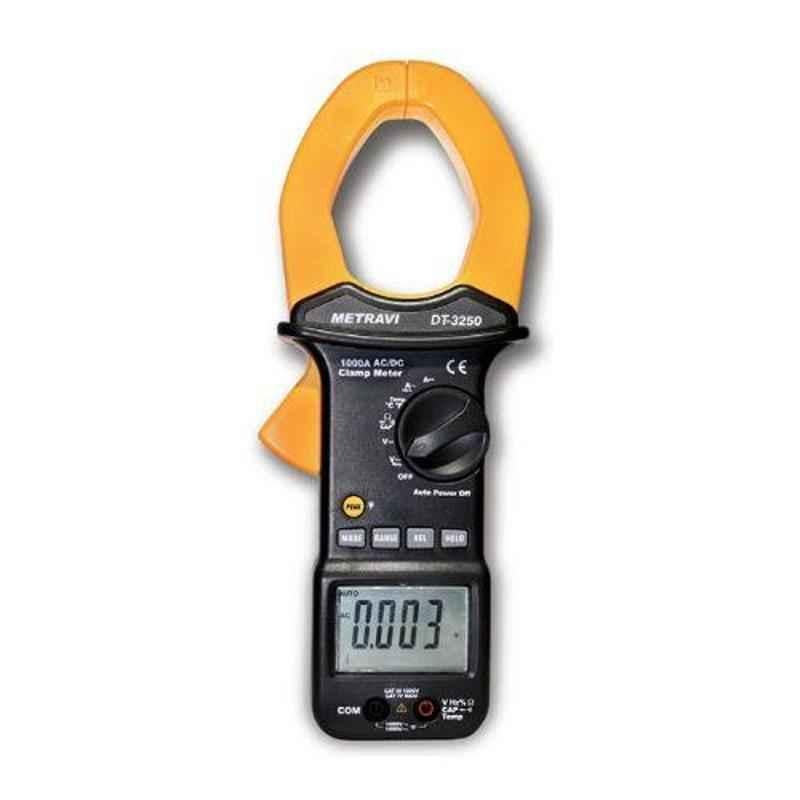

Metravi Digital AC/DC Clamp Meter, DT-3250

Hover to Zoom

Metravi Digital AC/DC Clamp Meter, DT-3250

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand	Metravi
AC Current Accuracy	±2.0%
AC Current Range	0-1000 Amp
AC Current Resolution	100mA to 1 Amp
AC Voltage Accuracy	±1.2%
AC Voltage Range	0-1000 V
AC Voltage Resolution	1mV to 1V
Battery Type	Alkaline
Capacitance Accuracy	±3.5%
Capacitance Range	0-4nF/40nF/400nF/4uF/40uF/400uF
Capacitance Resolution	0.001nF to 0.1µF
Colour	Yellow & Black
Customer Care Number	+91 33 46057739
DC Current Accuracy	±2.0%
DC Current Range	0-1000 Amp
DC Current Resolution	100mA to 1 Amp
DC Voltage Accuracy	±1%
DC Voltage Range	0-1000 V
DC Voltage Resolution	0.1mV to 1V
Diameter	Jaw: 52 mm
Digits	3-3/4 Digits
Display	41 Segment Backlit LCD
Duty Cycle	0.5% to 99%
Frequency Accuracy	±1.0%
Frequency Range	40Hz to 1kHz
Item Code	DT-3250
Number of Batteries	1
Power source	Battery Operated
Resistance Accuracy	±1.0%
Resistance Range	0 – 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ
Resistance Resolution	0.1Ω to 10kΩ
Sampling Time	2 Times/Sec
Standards	CAT III 1000V, CAT IV 600V, EN-61010-1, IEC 1010-1
Temperature Accuracy	±3%
Temperature Range	-20 to 1000 deg C
Temperature Resolution	0.1 deg C
Country of origin	India
Manufacturer Details	Metravi Instruments Pvt Ltd, 32A, Ganesh Chandra Avenue, 4th Floor, Kolkata, West Bengal-700013, India , Phone: +91-8448233444
Packer Details	Metravi Instruments Pvt Ltd, 32A, Ganesh Chandra Avenue, 4th Floor, Kolkata, West Bengal-700013, India , Phone: +91-8448233444
Common/Generic Name	Clamp Meter
Dimensions LxWxH	230x85x40 mm
Weight	370 g

Show All Specifications

Product Details

Data & Peak Hold, Auto-ranging, 52mm Jaw Size, DC/AC Voltage,1000A DC/AC Current, Frequency, Temperature, Capacitance, Resistance, Duty Cycle, Diode and Continuity Test Facility, 600V AC/DC Protection on all ranges, Frequency through voltage and Current measurement possible, Auto Power Off, Confirms CAT-III 600V & CAT-IV 1000V
