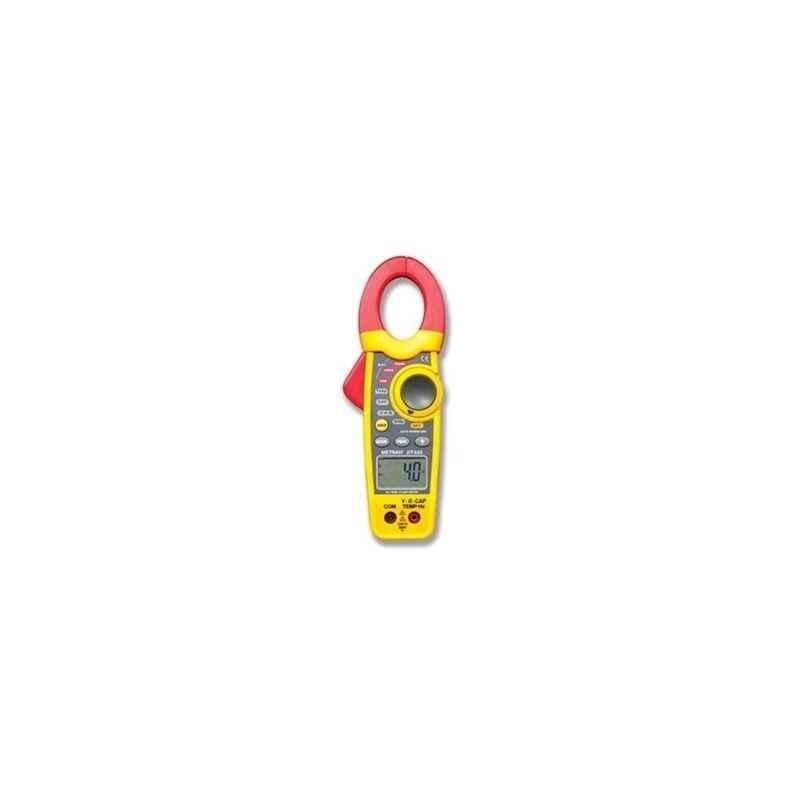

Metravi DT-525 Display LCD 3-¾ Digits Digital Clamp Meter

Name: Metravi DT-525 Display LCD 3-¾ Digits Digital Clamp Meter
Brand: Metravi
SKU: MSN2VZDUT35567
Price: 6873 INR
Availability: OutOfStock

₹6,873 (Incl. of all taxes)

₹5,824 + ₹1,049 GST

MRP ₹7,710 10% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Sensitivity: 5Vrms min.

Product Specifications

Brand	Metravi
AC Current Range	T-RMS : 40A. 400A. 1000A
AC Current Resolution	0.01A. 0.1A.1A
AC Voltage Accuracy	± (2.8% + 10 digits)± (2.8% + 8 digits)± (3.0% + 8 digits)
AC Voltage Range (Volts)	T-RMS : 400mV.4V.40V.400V.600V
Auto Power Off	Low Battery Indication, Auto Power Off Approx 20 minutes
Capacitance Accuracy	± (5.0% + 30 digits)± (5.0% + 20 digits)± (3.0% + 5 digits).± (4.0% + 10 digits)± (4.5% + 10 digits)± (5.0% + 10 digits)
Capacitance Range	4nF.40nF.400nF.4µF.40µF.400µF.4mF.40mF
Continuity Check	Threshold <35fi; Test current <1mA
Counts	4000
Customer Care Number	+91 33 46057739
DC Voltage Range	40mV.4V.40V.400V.600V
Diode Test	Test Current of 0.3mA typical Open circuit voltage 1.5V DC
Display	3 ½ Digit
Frequency	4 kHz
Frequency Accuracy	± (1.5.% + 2 Digits)
Input Impedance	10Mfi (VDC and VAC)
Item Code	DT-525
Items in Pack	1 piece
Jaw Opening	30 mm Opening Approx
Measurement Rate	2 per second, nominal
Relative Humidity	Up to 85%
Resistance Accuracy	± (1.0% + 4 digits)± (1.5% + 2 digits)± (2.5% + 5 digits)± (3.5% + 10 digits)
Resistance Range	400Ω.4kΩ.40kΩ.400kΩ.4MΩ.40mΩ
Sensing	TRMS
Weight	303 g
Country of origin	India
Manufacturer Details	Metravi Instruments Pvt Ltd, 32A, Ganesh Chandra Avenue, 4th Floor, Kolkata, West Bengal-700013, India , Phone: +91-8448233444
Packer Details	Metravi Instruments Pvt Ltd, 32A, Ganesh Chandra Avenue, 4th Floor, Kolkata, West Bengal-700013, India , Phone: +91-8448233444
Common/Generic Name	Clamp Meter
Dimensions LxWxH	240x100x50 mm
Weight	303 g

Show All Specifications

Product Details

Metravi DT-525 Display LCD 3-¾ Digits Digital Clamp Meter is a premium quality product from Metravi . Moglix is a well-known ecommerce platform for qualitative range of Clamp Meters. All Metravi DT-525 Display LCD 3-¾ Digits Digital Clamp Meter are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Metravi DT-525 Display LCD 3-¾ Digits Digital Clamp Meter, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Metravi products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Metravi Clamp Meters .
