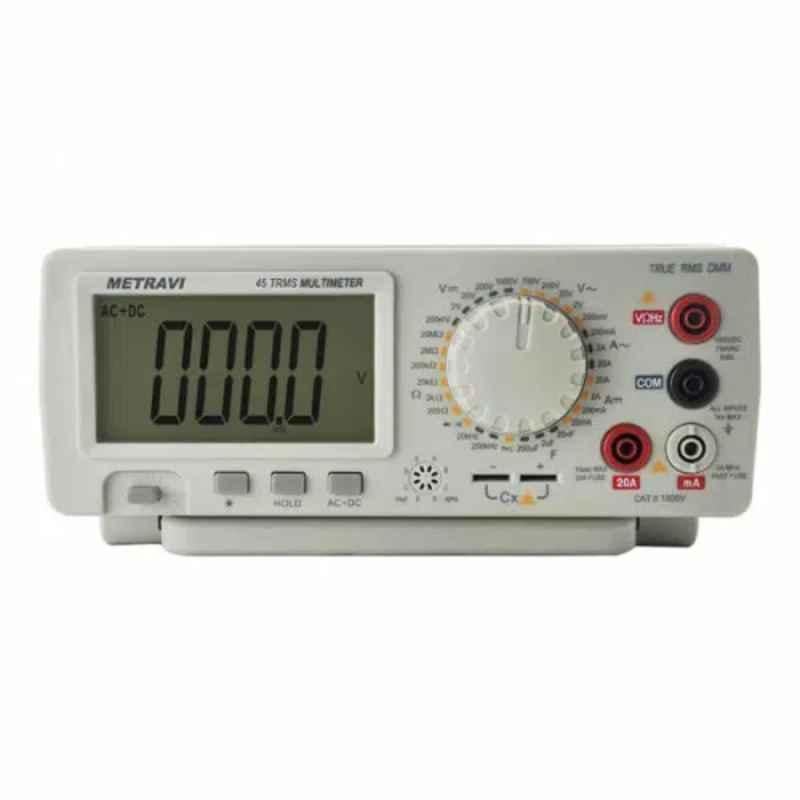

Metravi M-45 Bench Type Digital Multimeter 0-1000V AC

Name: Metravi M-45 Bench Type Digital Multimeter 0-1000V AC
Brand: Metravi
SKU: MSNEKPQL88YW52
Price: 10459 INR
Availability: OutOfStock

₹10,459 (Incl. of all taxes)

₹8,863 + ₹1,596 GST

MRP ₹13,759 23% OFF

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand	Metravi
AC Current Accuracy	±(2.0%+40)
AC Current Range	2mA-10A
AC Voltage Accuracy	±(0.8% + 40)
AC Voltage Range	2V-1000V
Capacitance Accuracy	±(5%+10)
Capacitance Range (F)	20nF-200μF
Counts	19999
Customer Care Number	+91 33 46057739
DC Current Accuracy	±(1.5% + 40)
DC Current Range	200.0μA-10A
DC Voltage Accuracy	±(0.2%+5)
DC Voltage Range	200mV-1000V
Dimensions	300x245x105 mm
Display	4½
Frequency Accuracy	±(1.2%+10)
Frequency Range (Hz)	2kHz-200kHz
Model No	M-45
Operating Temperature	0 to 40°C
Power Input	AC (external power adapter AC220V / DC9V-200mA) or DC (internal battery type 2 R14/1.5V 6 pieces)
Resistance Accuracy	±(5% + 40)
Resistance Range (Ohm)	200Ω-200MΩ
Storage Temperature	-10 to 50°C
Temperature Accuracy	±(2.5%+20)
Temperature Range(C)	-40°C to 1000°C
Type	Digital
Type of Product	Bench Type Digital Multimeter
Weight (g)	About 1500g (without the accessories)
Country of origin	India
Manufacturer Details	Metravi Instruments Pvt Ltd, 32A, Ganesh Chandra Avenue, 4th Floor, Kolkata, West Bengal-700013, India , Phone: +91-8448233444
Packer Details	Metravi Instruments Pvt Ltd, 32A, Ganesh Chandra Avenue, 4th Floor, Kolkata, West Bengal-700013, India , Phone: +91-8448233444
Common/Generic Name	Digital Multimeter
Dimensions LxWxH	300x245x105 mm
Weight	217 g

Show All Specifications

Product Details

The Metravi M-45 Bench Type Digital Multimeter 0-1000V AC is one of the best selling products in the market. This device gives you accurate reading, helping you measure the electric supply. Well with this product you can measure voltage, current, and resistance of a circuit. The other name for this device is volt-ohm-milliammeter. This multimeter can be used to measure batteries, household wirings, electric motors and power supplies.
