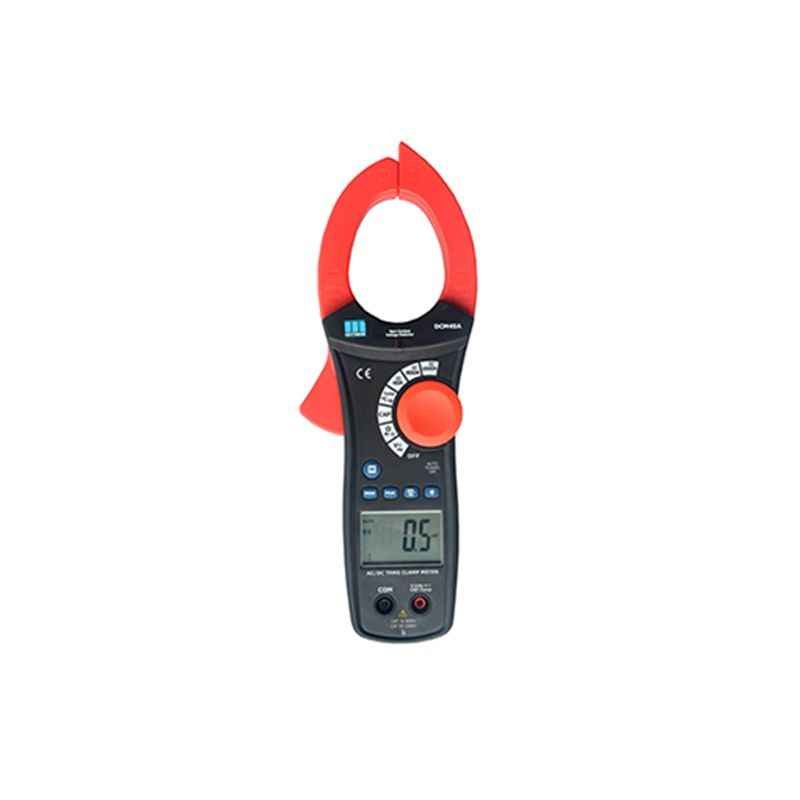

Motwane DCM-45A Digital AC/DC Clamp Meter with Test Certificate

Name: Motwane DCM-45A Digital AC/DC Clamp Meter with Test Certificate
Brand: Motwane
SKU: MSN2KM1GPJYQ9V
Price: 15839 INR
Availability: OutOfStock

₹15,839 (Incl. of all taxes)

₹13,422 ₹2,417 GST

MRP ₹17,640 10% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Overload indication ‘OL’.
Diode and Continuity Check Functions.
Auto Power off.
Data Hold.
Zero Adjustment.
Peak Hold.

Show All Key Features

Product Specifications

Brand	Motwane
AC Current Accuracy	±(3.0 % + 8 Digits)
AC Current Range	40-1000 A 1000A( max.)
AC Current Resolution	0.01 A / 0.1 A / 1 A
AC Voltage Accuracy	±(2 % + 8 Digits)
AC Voltage Range	400 mV-600 V 600 V
Capacitance Range	4 nF-40 mF
Customer Care Number	91-8022058200
DC Current Accuracy	±(3.0 % + 8 Digits)
DC Current Range	40-1000 A 1000 A (max.)
DC Voltage Accuracy	±(2.0 % + 2 Digits
DC Voltage Range (Volts)	400 mV-600 V 600 V (max.)
Dimensions	271x93x47 mm
Display	3¾ Digits LCD Counts: 4000
Frequency	0-4 kHz
Frequency Accuracy	±(1.5 % + 2 Digits)
Items in Pack	1 Piece
Jaw Opening	52 mm
Model	dcm45a
Notes	Test Certificate Certificate Type: Manufacturer
Operating Environment	5° to 40°C
Power Supply	1x9V Battery
Resistance Accuracy	±(3.5 % + 10 Digits)
Resistance Range	400Ω-40MΩ
Temperature Accuracy	±(3 % + 5°C)
Temperature Range	-20° to 760°C
Warranty	1 Year
Weight	500 g
Country of origin	India
Manufacturer Details	The MOTWANE Manufacturing Company Private Limited, Gyan Baug Nashik Road-422101, Maharashtra, India
Packer Details	The MOTWANE Manufacturing Company Private Limited, Gyan Baug Nashik Road-422101, Maharashtra, India
Common/Generic Name	Clamp Meter
Dimensions LxWxH	255x73x38 mm
Weight	500 g

Show All Specifications

Product Details

Multi-featured DCM 45A is made for wide applications to serve Heavy Industries-Steel, Cement, Process, Railways, Oil & Gas, Utilities, UPS Inverter manufacturers, etc. DCM 45A is a ‘Single solution delivering multiple applications’ with measurement functions like AD/DC voltage, AC/DC current, Non-contact voltage detection, Resistance, Diode test, Continuity check, Capacitance, Frequency, Temperature. Best suited for AC/DC current measurement with non-contact voltage detection which makes the measurement more easy.
