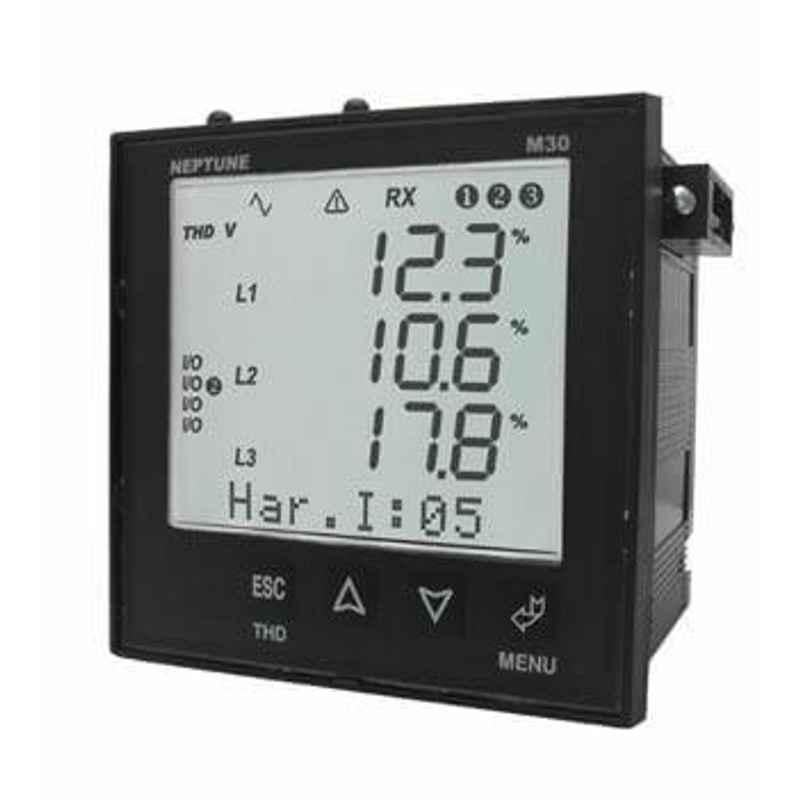

Neptune M30 Power Analyzer/Data Logger

Name: Neptune M30 Power Analyzer/Data Logger
Brand: Neptune
SKU: MSNPKEPZY1GQ9G
Price: 25661 INR
Availability: OutOfStock

₹25,661 (Incl. of all taxes)

₹21,746 ₹3,915 GST

MRP ₹32,400 20% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Reactive Power: 3-Phase / 3-Wire (Aron) Class 2.
Current Transformer Ratio: 1 to 2000 (programmable).
Voltage Transformer Ratio: 10 to 4000.0 (programmable).
Demand Time: 1 - 60 min. (programmable).
Communication Interface: MODBUS RTU (RS-485).
Baud Rate: 1200 - 38400 bps.
Address: 1 - 247.
Parity: no. odd, even.
Alarm Contact: Output 1 / Output 2: 2 NO Relay: 5 A, 1250 VA (resistive).
Energy Pulse Output 3: Active Energy Pulse Output (1 kWh to 50MWh / pulse) - NPN Transistor.
Energy Pulse Potput 4: Reactive Energy Pulse Output (1 kVArh to 50MVArh / pulse) - NPN Transistor.
Switch Period: Min. 1 sec. (100-2500 msec. pulse width).
Analog output (optional): 4 - 20 mA.
Data Logging: Selectable 28 parameters with Time Stamp (15000 records).

Show All Key Features

Product Specifications

Brand	Neptune
Class	Voltage: Class 0.5 Current: Class 0.5 Frequency: Class 0.1 Active Power: Class 1
Customer Care Number	8871352676
Degree of Protection	IP40 (front panel)
Dimensions	96x96 mm
Display	3.6 inch LCD with Backlight, 12mm Height.
Installation	Terminal / Flush-mounting with rear terminals
Internal Memory	1 MB
Item Code	M30
Load	< 1 VA (Current burden)
Measurement Range	Voltage: 1.0-4000, 0 kV Current: 5 mA - 10000 A Frequency: 45.0 - 65.0 Hz Power: 0 - 4000 M (W, VAr, VA) Energy: 0 - 99 999 999 kWh, kVArh
Network	3-phase / 4-wire(Star). 3-phase / 3-wire(Delta)
Operating Current	Max. 50 mA
Operating Voltage	230V AC ± 10%: 50/60 Hz
Protection	Equipment Protection: Double Insulation ( ), Measurement Category III.
Voltage	5-24 V DC (max. 30 V DC)
Weight	0.75 kg
Country of origin	India
Manufacturer Details	NEPTUNE FAIRDEAL PRODUCTS PVT LTD, 3/2 Shraddhanand marg Near Mathurawala Chawani Indore-452001 MP , Indore, Madhya Pradesh-452001, India , Phone: +91-8448233444
Packer Details	NEPTUNE FAIRDEAL PRODUCTS PVT LTD, 3/2 Shraddhanand marg Near Mathurawala Chawani Indore-452001 MP , Indore, Madhya Pradesh-452001, India , Phone: +91-8448233444
Common/Generic Name	Power Analyzer
Dimensions LxWxH	96x96 mm
Weight	750 g

Show All Specifications

Product Details

Neptune M30 Power Analyzer/Data Logger is a premium quality product from Neptune . Moglix is a well-known ecommerce platform for qualitative range of Power Analysers. All Neptune M30 Power Analyzer/Data Logger are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Neptune M30 Power Analyzer/Data Logger, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Neptune products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Neptune Power Analysers .
