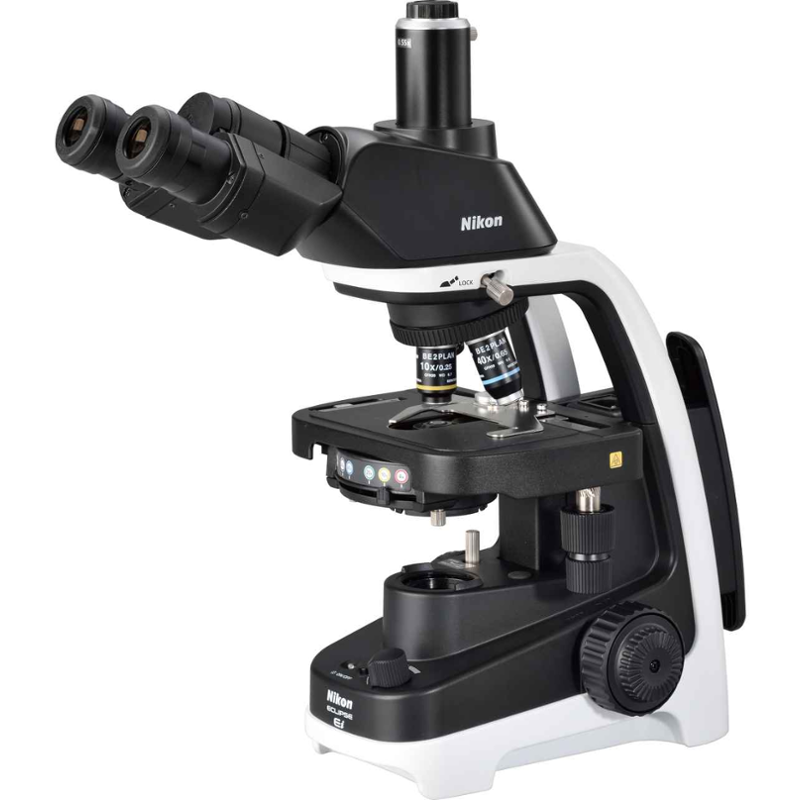

Nikon Eclipse Ei 4W Optical LED Trinocular Microscope with 100x Zoom

AVAILABLE ON REQUEST

About This Product

Key Features

Reversed-Type Nosepiece.
Safe & Secure Focusing.
Fine Focus with Either Hand.
Stress-free Stage Operation.
Tube Orientation Displayed During Storage.
Comfortable Observation Posture.
Illustrative Presentation of Handles.
The Best Aperture Can Be Set Intuitively.
Lighting Status Can Be Checked at a Glance.

Show All Key Features

Product Specifications

Brand	Nikon
Microscope Type	Trinocular Microscope
Condenser	Abbe Condenser, NA 0.1-1.25, Color-Coded Position Guide Markings of Aperture Diaphragm & Corresponding to Objective Magnifications
Eye Pieces	EC-E CFI 10X (20) E2-CFI 15X (12)
Frequency	50-60 Hz
Illumination	High luminescent white LED illuminator, 45 mm diameter filter can be installed
Model	Eclipse Ei
Objectives	CFI BE2 Plan Achromat 4x (0.1/25mm) CFI BE2 Plan Achromat 10x (0.25/6.7mm) CFI BE2 Plan Achromat 20x (0.4/3.7mm) CFI BE2 Plan Achromat 40x (0.65/0.6mm) CFI BE2 Plan Achromat 60x (0.8/0.25mm) CFI BE2 Plan Achromat 100x Oil (1.25/0.14mm)
Power	4 W
Voltage	Input: 100-240 V AC Output: 5 V DC
Additional Details	Optical System: CFI Infinity Optical System Focusing Mechanism: Coaxial Coarse Fine Focusing, Cross Roller Guide, Focusing Stroke: Up 2 mm Down 13 mm, Coarse: 37.7 mm, Rotation, Fine: 0.2 mm, Rotation with Coarse Focus Knob Torque Adjustment Ring, Includes Stage Vertical Movement Stopper EC-T-TF Trinocular Tube, Eyepiece Port: 50/50, Inclination: 25 deg, Pupillary Distance: 50 - 75 mm, Eyepoint Height: Adjustable to 2 Positions
Country of origin	Japan
Manufacturer Details	2 Chome-15-3 Konan, Minato City, Tokyo 108-0075, Japan
Packer Details	2 Chome-15-3 Konan, Minato City, Tokyo 108-0075, Japan
Importer Details	Plot No.71, Sector 32, Institutional Area, Gurgaon 122001 Haryana
Common/Generic Name	Microscope
Dimensions LxWxH	23.6x28x40.1 cm
Weight	6 kg

Show All Specifications

Product Details

Introducing the Nikon Eclipse Ei 4W Optical LED Trinocular Microscope, a powerful tool for scientific research and exploration. This microscope is specifically designed for professionals in the field, offering a stunning 100x zoom capability to bring even the tiniest details into focus. With its trinocular design, users can easily capture images or videos through a dedicated camera port while simultaneously viewing through the eyepieces. The EC-E CFI 10X (20) eyepieces provide comfortable viewing, ensuring a clear and crisp image. The microscope utilizes the renowned CFI Infinity Optical System, guaranteeing exceptional image quality and accuracy. Its Abbe condenser, with an NA range of 0.1-1.25, ensures optimal illumination for precise observations. The color-coded position guide markings of the aperture diaphragm make it easy to match with objective magnifications. The Nikon Eclipse Ei model operates at a voltage input of 100-240 V AC and consumes just 4 W of power. Explore the microscopic world with Nikon and experience unrivaled precision and reliability.
