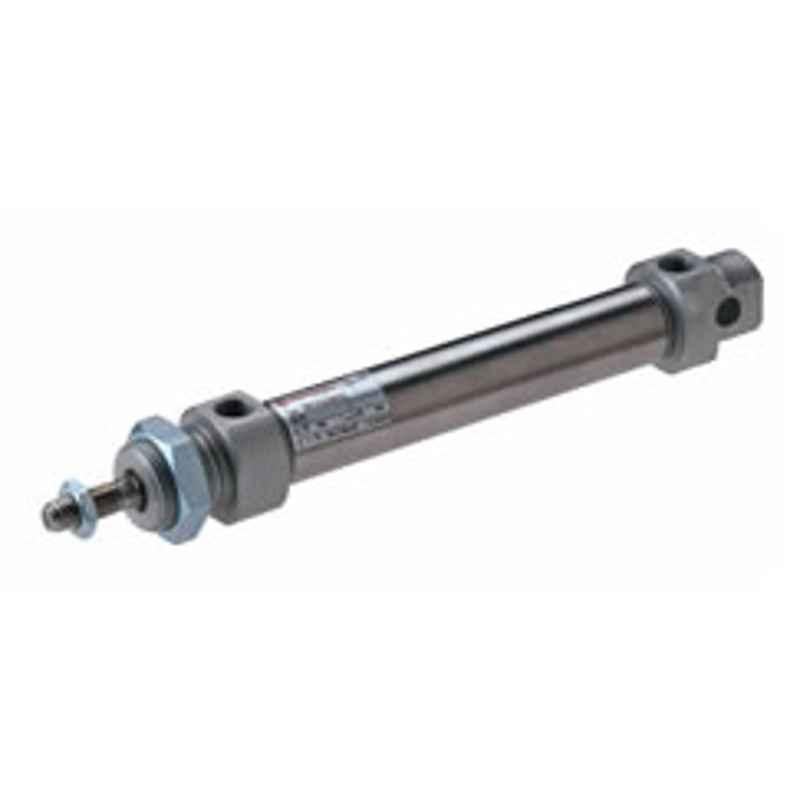

Norgren 20mm ISO Roundline Double Acting Cylinder, RM/8020/M/250

AVAILABLE ON REQUEST

About This Product

Key Features

Magnetic Piston as Standard.
High Strength, Double Crimped End Cap Design.
Corrosion Resistant.
Buffer or Adjustable Cushioning.
Nose Mounting Nut & Piston Rod Locknut as Standard.

Show All Key Features

Product Specifications

Brand	Norgren
Diameter	Cylinder: 20 mm
Dimensions	30x4.8x1.8 cm
Material	Barrel: Stainless Steel End Covers: Clear Anodized Aluminium Alloy Piston Rod: Stainless Steel Buffer, Wiper: PUR Seals: NBR
Medium	Compressed Air, Filtered, Lubricated or Non Lubricated
Model	RM/8020/M/250
Notes	Box Opening Video will be Required for any Type of Exchange
Operating Pressure	1 to 10 bar
Operating Temperature	-10 to 80 deg C
Operation	Double Acting with Magnetic Piston & Buffer or Adjustable Cushioning
Standards	ISO 6432
Stroke Length	250 mm
Variants	Standard with Integral eye Mounting
Weight	320 g
Country of origin	India
Manufacturer Details	IMI Norgren Herion Private Limited B-30A, Sector-85, Noida, Uttar Pradesh-201305, Tel: +91 120 4089500 Email: india@imi-precision.com
Packer Details	IMI Norgren Herion Private Limited B-30A, Sector-85, Noida, Uttar Pradesh-201305, Tel: +91 120 4089500 Email: india@imi-precision.com
Common/Generic Name	Double Acting Cylinder
Dimensions LxWxH	30x4.8x1.8 cm
Weight	320 g

Show All Specifications

Product Details

Norgren 20mm ISO Roundline Double Acting Cylinder, RM/8020/M/250 is a premium quality product from Norgren . Moglix is a well-known ecommerce platform for qualitative range of Round Cylinder. All Norgren 20mm ISO Roundline Double Acting Cylinder, RM/8020/M/250 are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Norgren 20mm ISO Roundline Double Acting Cylinder, RM/8020/M/250, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Norgren products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Norgren Round Cylinder .
