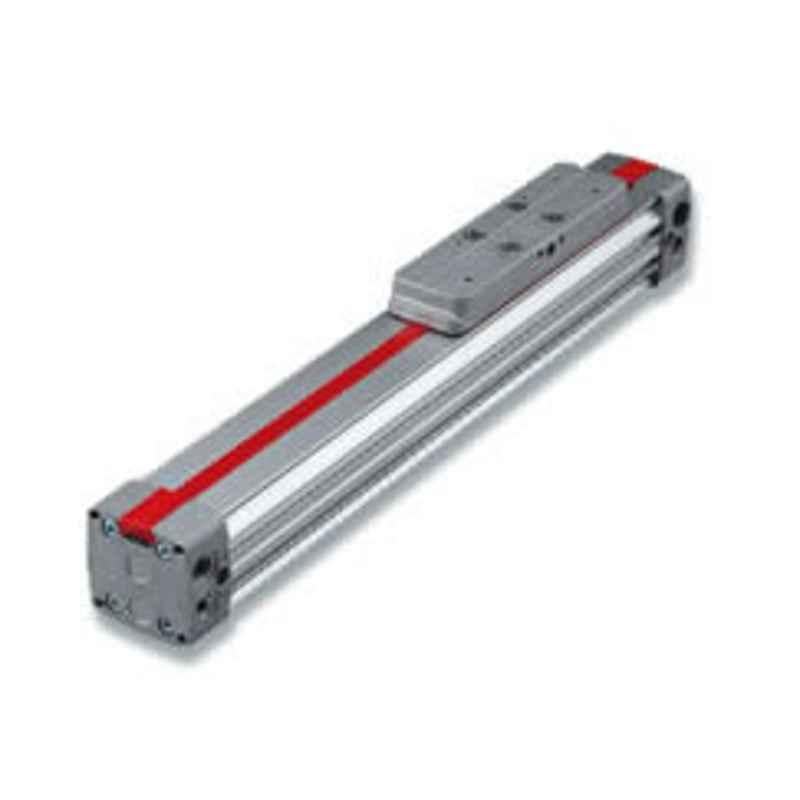

Norgren 25mm Internal Guide Lintra Plus Rodless Cylinder, M/146025/M/200

AVAILABLE ON REQUEST

About This Product

Key Features

Proven & Patented Sealing System.
Dust Protection as Standard.
Interchangeability with Series M/46000.
New Lightweight Design Extrusion with Universal Mounting Grooves.

Show All Key Features

Product Specifications

Brand	Norgren
Diameter	Cylinder: 25 mm
Dimensions	40.8x6x5.6 cm
Guiding Systems	Internal
Material	End Covers: Aluminium Diecast Carriage, Closer & Cover: Aluminium Diecast Guiding Bridge & Profile Barrel: Anodized Aluminium Seal Strip, Wiper & Piston Seal: PUR Cover Strip: PA Others Seal: NBR Mounting Screws: A2E Shim Ring: Stainless Steel(A2)
Medium	Compressed Air, Filtered, Lubricated or Non Lubricated
Model	M/146025/M/200
Notes	Box Opening Video will be Required for any Type of Exchange
Operating Pressure	1 to 8 bar
Operating Temperature	-30 to 80 deg C
Stroke Length	200 mm
Weight	1180 g
Country of origin	India
Manufacturer Details	IMI Norgren Herion Private Limited B-30A, Sector-85, Noida, Uttar Pradesh-201305, Tel: +91 120 4089500 Email: india@imi-precision.com
Packer Details	IMI Norgren Herion Private Limited B-30A, Sector-85, Noida, Uttar Pradesh-201305, Tel: +91 120 4089500 Email: india@imi-precision.com
Common/Generic Name	Pneumatic Cylinders
Dimensions LxWxH	40.8x6x5.6 cm
Weight	1.18 kg

Show All Specifications

Product Details

Norgren 25mm Internal Guide Lintra Plus Rodless Cylinder, M/146025/M/200 is a premium quality product from Norgren . Moglix is a well-known ecommerce platform for qualitative range of Pneumatic Cylinders. All Norgren 25mm Internal Guide Lintra Plus Rodless Cylinder, M/146025/M/200 are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Norgren 25mm Internal Guide Lintra Plus Rodless Cylinder, M/146025/M/200, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Norgren products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Norgren Pneumatic Cylinders .
