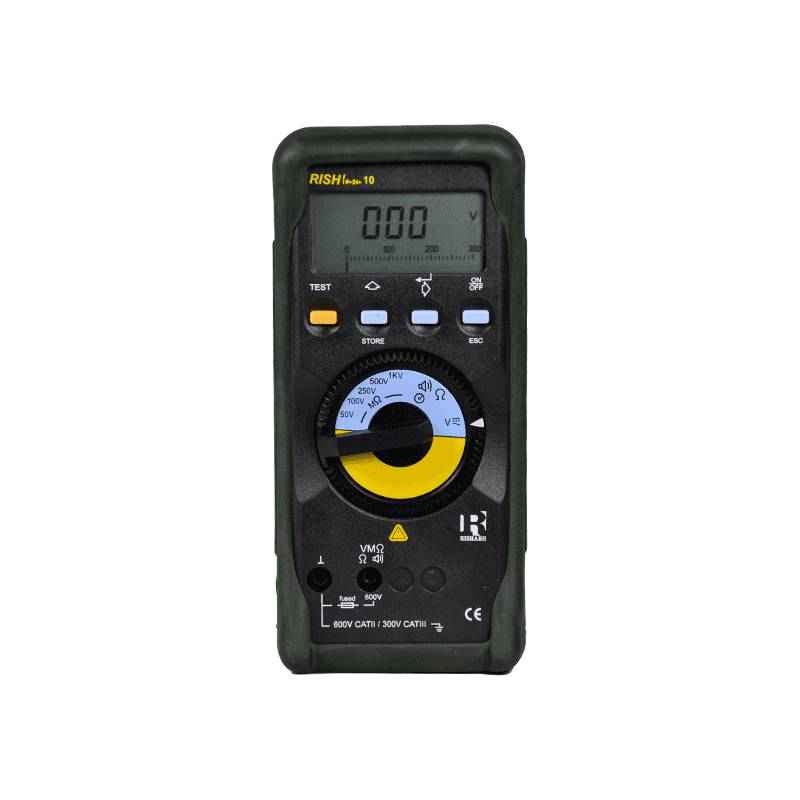

Rishabh Insu 10 Insulation Tester

Name: Rishabh Insu 10 Insulation Tester
Brand: Rishabh
SKU: MSNJ4SG0RR3
Price: 4079 INR
Availability: InStock
Rating: 4.25 (1 reviews)

4.3

(1 Reviews)

₹4,079 (Incl. of all taxes)

₹3,456 ₹623 GST

MRP ₹6,278 35% OFF

Buy More & Save More

Qty 2

₹4,048 /pc

35% OFF

Qty 3

₹4,033 /pc

35% OFF

Qty 4 - 5

₹4,017 /pc

36% OFF

Qty 6 - 7

₹3,987 /pc

36% OFF

Qty 8+

₹3,956 /pc

36% OFF

Sign Up & Earn 10 Mogli Coins

& save extra money on your next purchase.

Get at

₹3,979

with Coupon & Offers

Extra ₹100 OFF

All Coupons & Offers

India’s Leading B2B Online Store

4.7

google_logo Avg. Rating

50+ Lac

Orders Delivered

93%

Happy Customers

Money Back

Genuine Product

Easy Return

Get GST Invoice

Secure Payments

365 Days Help Desk

About This Product

Key Features

Stop Watch.
Live circuit detection.
Blown fuse indication.
Auto-power off function.
Lead resistance null facility.
Insulation Resistance Measurement.
Hands-free continuity testing.
Storage of MIN & MAX values.
Protective holster for rough duty.
Storage Memory for last 50 readings.
Low Resistances Measurement (0.01Ohm... 99.9 Ohm).
Automatic discharge for capacitive circuits after test Measurement.
Pre-selectable measurement time for Insulation Resistance Measurement.
Pre-selectable limit checks: Go & No-go option for Mohm.

Show All Key Features

Product Specifications

Brand	Rishabh
Dimension	195x84x35 mm
Item Code	IT10-1N00000000000
Items in Pack	1 Piece
Low Battery Display	Yes
Model	RISH Insu 10
Operating Humidity Range	90% RH at 40 deg C max.
Operating Temperature Range	-20 to +40 deg C (full range) -20 to +60 deg C (upto 100M )
Power Input	6 X 1.5V cells IEC LR6 Alkaline
Power Supply	6X1.5V cells IEC LR6 (Alkaline)
Resistance	10K-999M Ω
Storage Temperature Range	-25 to +65 deg C
Voltage	1000 V
Weight	500g (Including Battery)
Country of origin	India
Manufacturer Details	Megha Enterprises, 1693/22, 1st floor, Gali jog dhain Bhagirath palace, Delhi , New Delhi, New Delhi-110006, India , Phone: +91-8448233444
Packer Details	Megha Enterprises, 1693/22, 1st floor, Gali jog dhain Bhagirath palace, Delhi , New Delhi, New Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Insulation Tester
Dimensions LxWxH	195x84x35 mm
Weight	416 g

Show All Specifications

Product Details

Test Voltages 50V/ 100V/ 250V/ 500V/ 1000V

Test voltages from 50V to 1000V can be selected for Insulation Resistance measurement. It covers all insulation tests up to 1000V.

Insulation Resistance Measurement

The instrument is capable of measuring insulation resistance from 10 KOhm ...999 MOhm.

Hands-free continuity testing

Continuity testing (0-10 with acoustic signal) can be done without pressing the test button. In addition to the display function, an acoustic signal can be activated which sounds if the adjustable limit value is violated.

Voltmeter

Instrument measures voltages > 25V ... 600 V AC/DC.

Automatic discharge for capacitive circuits after test Measurement

Capacitive devices under test, such as cables and windings that get charged during the test are discharged by the tester.

Live circuit detection

Displays presence of voltages > 25V irrespective of function selected.

Pre-selectable measurement time for Insulation Resistance Measurement

In normal course, the insulation test terminates and the measured insulation resistance value remains on display for 2 sec after the test key is released. with the Pre-selectable measurement time feature, the insulation test continues and the measured value remains on the display for the pre-determined time. Pre-selectable time: 10 sec - 5 min.

Pre-selectable limit checks (Go/ No-go option) for MOhm

An acoustic signal can be generated when the measured value of insulation resistance falls below an adjustable limit value.

Lead resistance null facility

The instrument provides a facility to compensate the resistance of the leads for an accurate measurement of low resistance.

Storage of MIN/MAX values

In addition to the display of the actual measured value, the minimum or maximum value can constantly be updated or stored.

Storage Memory for last 50 readings

The instrument provides a facility to store and recall 10 values in each of the 5 ranges of insulation resistance measurement.

Blown fuse indication

The display FUSE points to a blown fuse.

Stop Watch

This function allows you to measure elapsed time up to 1 hour.

Auto-power off function

The instrument turns off automatically, if any of the keys or the instrument turns off automatically, if any of the keys or the selector switch have not been activated for about 10 minutes in insulation range and 5 minutes in other ranges or can be switched to continuous operation.

Protective holster for rough duty

A holster of soft rubber with tilt stand protects the meter against damage in the case of shock and drop.

Low Resistances Measurement (0.01Ohm... 99.9 Ohm)

Low resistances can be measured up to 99.9Ohm. There are two measuring ranges for Low W: 9.99Ohm and 99.9Ohm.
