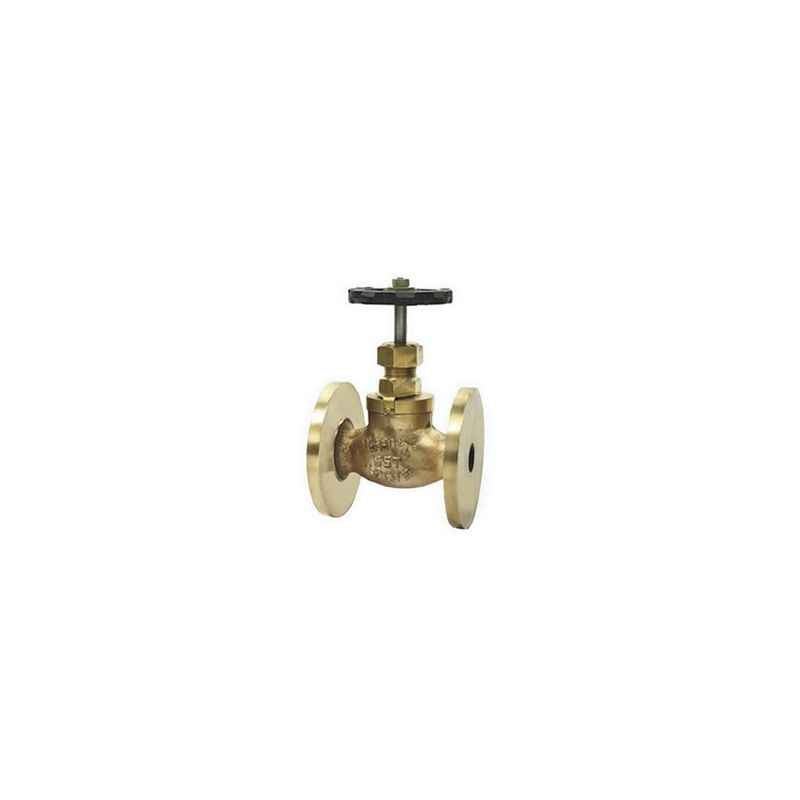

Sant 15mm Flange End Bronze Globe Steam Stop Valves, IBR 1B

Name: Sant 15mm Flange End Bronze Globe Steam Stop Valves, IBR 1B
Brand: Sant
SKU: MSNJ4M3SRR3
Price: 6227 INR
Availability: OutOfStock

₹6,227 (Incl. of all taxes)

₹5,275 ₹952 GST

MRP ₹8,927 30% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Screwed in bonnet inside screw rising stem.
Renewable seat.
Renewable Disc.
Gland Packing : Graphited Asbestos.
Working Pressure : Max. BOP 250 Psig at 225 deg C.

Show All Key Features

Product Specifications

Brand	Sant
Ends	Flanged as per BS 10 Table-H F.F. (undrilled)
Hydro Test Pressure (Body)	500 Psig
Item Code	IBR 1B
Series	IBR
Size	15 mm 1/2 In
Specifications	Bronze IBR Clause 282(a) IV GrB SS AISI-410
Type	Straight Type
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 Gali Piao Wali Chawri Bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 Gali Piao Wali Chawri Bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Globe Valves
Dimensions LxWxH	14x8x10 cm
Weight	142 g

Show All Specifications

Product Details

The Sant 15mm Flange End Bronze Globe Steam Stop Valve from the IBR 1B series offers reliable performance in steam applications. Crafted with bronze in compliance with IBR Clause 282(a) IV GrB and featuring SS AISI-410 components, this straight type valve comes with flanged ends per BS 10 Table-H F.F. (undrilled). Designed for durability, it includes a screwed-in bonnet with an inside screw rising stem, renewable seat and disc, and graphited asbestos gland packing. With a maximum working pressure of 250 Psig at 225Â°C and hydro test pressure of 500 Psig, it ensures safe and efficient steam flow control.
