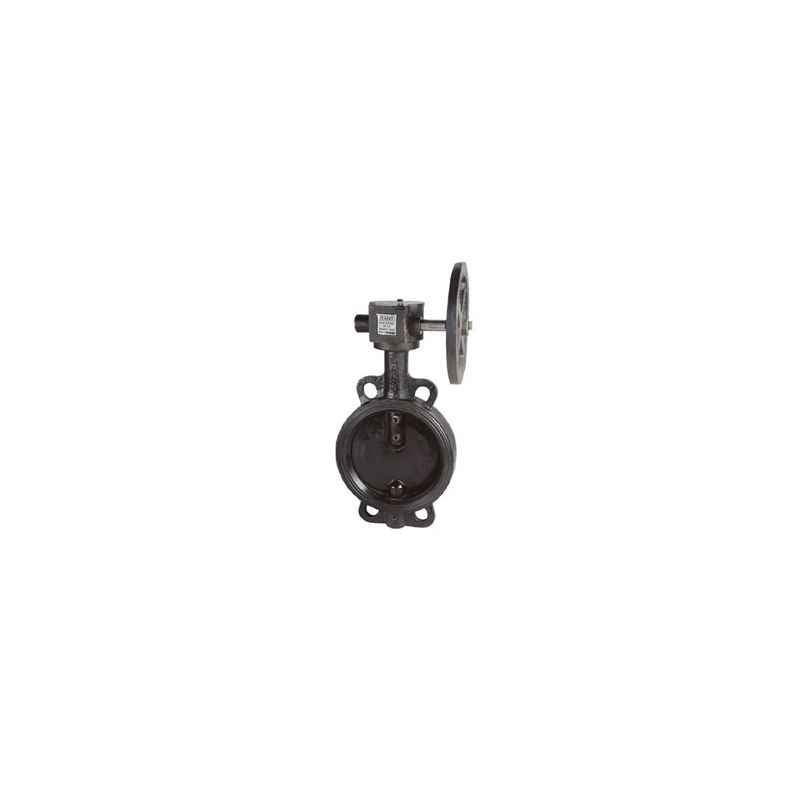

Sant 2.5 Inch Cast Iron Butterfly Valve, CR 21A

AVAILABLE ON REQUEST

About This Product

Key Features

Wafer Type.
Type of Disc: SG Iron.
Type of Pattern: Short Pattern.
Stem: AISI-410 Stainless Steel.
End Details: Suitable insertion between Flanges as per BS-10 Table D/E ANSI B 16.1 CI-125.

Show All Key Features

Product Specifications

Brand	Sant
End Connection	Wafer Type
Size	65 mm
Body Material	Cast Iron (IS 210 Gr FG 200)
Item Code	CR 21A
Model	CR
Pressure Rating	PN1.6
Seat Type	Nitrile/EPDM Rubber Lining Seat
Additional Details	End Details: Suitable insertion between Flanges as per BS-10 Table D/E ANSI B 16.1 CI-125 Short Pattern
Standards	IS-210 Gr. FG-200 Cast Iron
Test Pressure	Body: 2.4 MPa (348 PSIG) Hyd Seat: 1.6 MPa (232 PSIG) Hyd
Working Pressure	Not Available

Show All Specifications

Product Details

Sant 2.5 Inch Cast Iron Butterfly Valve, CR 21A is a premium quality product from Sant . Moglix is a well-known ecommerce platform for qualitative range of Butterfly Valves. All Sant 2.5 Inch Cast Iron Butterfly Valve, CR 21A are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Sant 2.5 Inch Cast Iron Butterfly Valve, CR 21A, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Sant products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Sant Butterfly Valves .
