Sant 25mm Screwed Female BSP Taper Threads Bronze Globe Steam Stop Valves, IBR 2A

Name: Sant 25mm Screwed Female BSP Taper Threads Bronze Globe Steam Stop Valves, IBR 2A
Brand: Sant
SKU: MSNJHS04RR3
Price: 9087 INR
Availability: OutOfStock

₹9,087 (Incl. of all taxes)

₹7,702 ₹1,385 GST

MRP ₹13,041 30% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Bolted Bonnet O/S and yoke type rising stem.
Renewable seat.
Renewable Disc.
Gland Packing : Graphited Asbestos.
Working Pressure : Max. BOP 250 Psig at 225 deg C.

Show All Key Features

Product Specifications

Brand	Sant
Ends	Screwed Female BSP Taper Threads to BS 21
Hydro Test Pressure (Body)	500 Psig
Item Code	IBR 2A
Series	IBR
Size	25 mm 1 In
Specifications	Bronze IBR Clause 282(a) IV GrB SS AISI-410
Type	Straight Type
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 Gali Piao Wali Chawri Bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 Gali Piao Wali Chawri Bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Globe Valves
Dimensions LxWxH	25x15x5 cm
Weight	142 g

Show All Specifications

Product Details

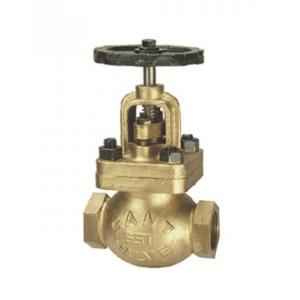

The Sant 25mm Screwed Female BSP Taper Threads Bronze Globe Steam Stop Valve from the IBR 2A series offers reliable performance for steam applications. Crafted from bronze IBR Clause 282(a) IV GrB with SS AISI-410 components, this straight type valve features a bolted bonnet O/S and yoke type rising stem for durability and ease of maintenance. It includes renewable seat and disc, with gland packing made of graphited asbestos to ensure a secure seal. Designed for a maximum working pressure of 250 Psig at 225Â°C and hydro tested at 500 Psig, itâ€™s ideal for precise steam flow control with BSP taper thread ends to BS 21 standards.
