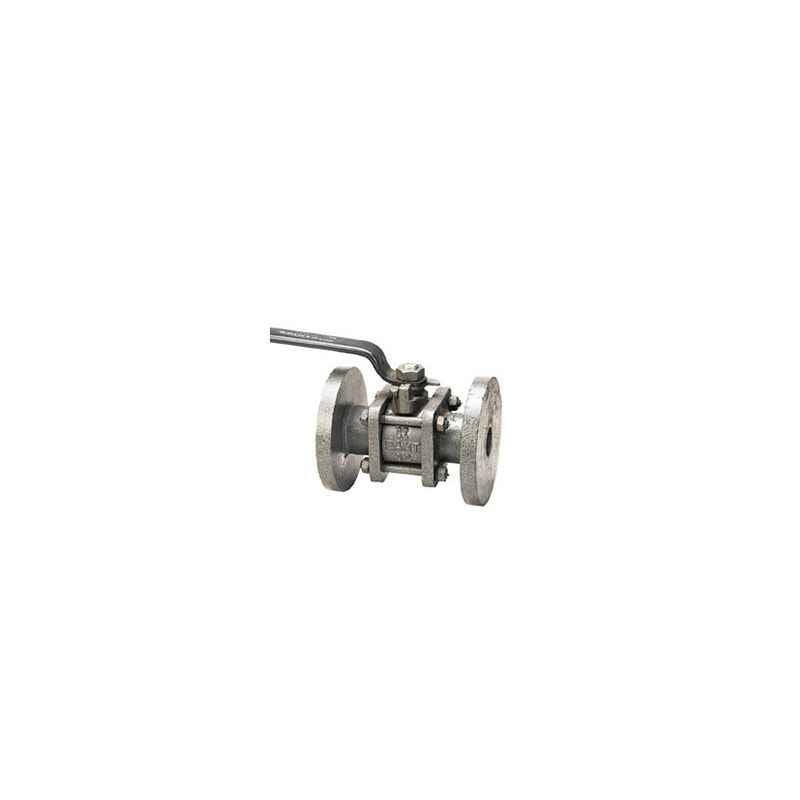

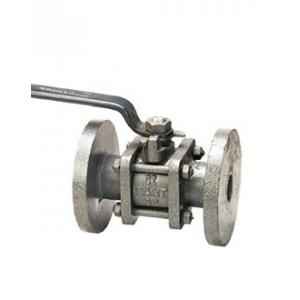

Sant 3 Inch Cast Iron Ball Valve, CI 18

Name: Sant 3 Inch Cast Iron Ball Valve, CI 18
Brand: Sant
SKU: MSN2R5MG0EE1SR
Price: 9443 INR
Availability: OutOfStock

₹9,443 (Incl. of all taxes)

₹8,004 ₹1,439 GST

MRP ₹14,657 35% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Three piece design.
Gland Packing: Teflon Rings.
End Details: Flanges as per IS:3516-1966 Undrilled.
Trim: AISI 410 Stem Stainless Steel AISI 304 Ball.

Show All Key Features

Product Specifications

Brand	Sant
Bore Type	Full
Nominal Size	80 mm
Number of Ways	2
Body Material	Cast Iron
Body Test Pressure	21barg 300 PSIG (Hyd)
Class	CL-125
Item Code	CI 18
Seat Test Pressure	220 PSIG(15.4barg) (Hyd) & 100 PSIG (6.9 bar) Air
Series	CI
Additional Details	Seat: Renewable Teflon
Standard	IS-9890 -1981 Class-125
material grade	IS 210 Gr FG 200
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 Gali Piao Wali Chawri Bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 Gali Piao Wali Chawri Bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Ball Valve
Weight	72 g

Show All Specifications

Product Details

The Sant 3 Inch Cast Iron Ball Valve, CI 18, offers reliable flow control with a robust three-piece design and full bore for optimal performance. Made from durable cast iron with a renewable Teflon seat, it ensures long-lasting sealing and minimal maintenance. Equipped with stainless steel components, including an AISI 304 ball and AISI 410 stem, this valve meets IS-9890 -1981 Class-125 standards. With flange ends per IS:3516-1966 (undrilled) and Teflon ring gland packing, it withstands seat test pressures up to 220 PSIG (hydraulic) and 100 PSIG (air), making it ideal for industrial piping systems.
