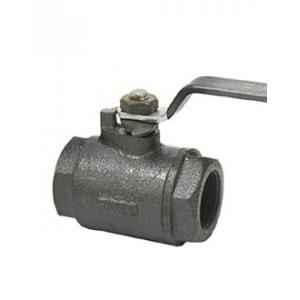

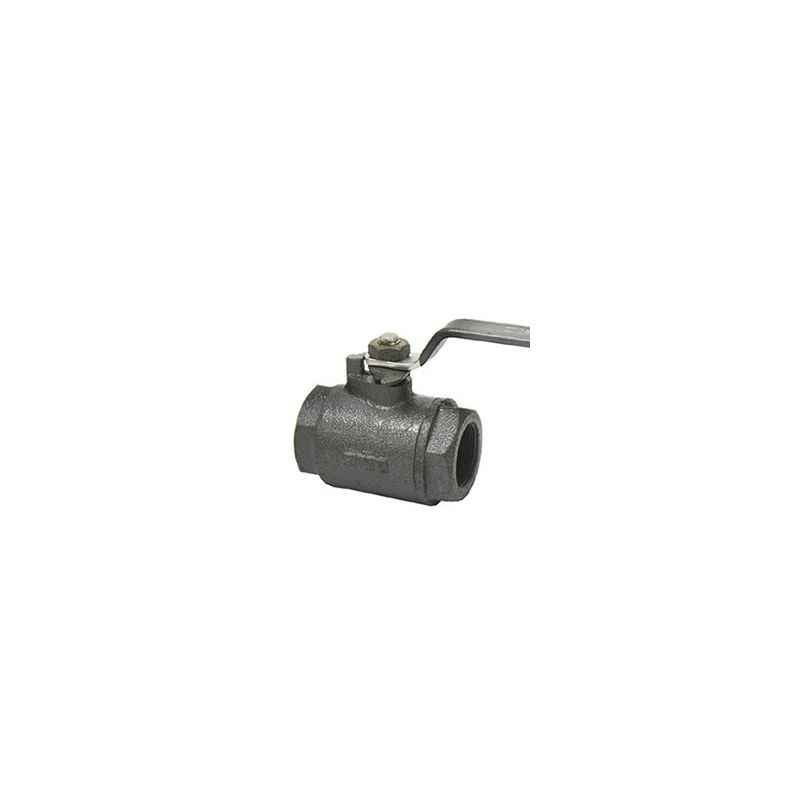

Sant 4 Inch Cast Iron Ball Valve, CI 17

Name: Sant 4 Inch Cast Iron Ball Valve, CI 17
Brand: Sant
SKU: MSN2R5OZVV9TCL
Price: 15292 INR
Availability: OutOfStock

₹15,292 (Incl. of all taxes)

₹12,961 ₹2,331 GST

MRP ₹23,735 35% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Two piece design.
Gland Packing: Teflon Rings.
Trim: AISI 410 Stem, Stainless Steel AISI 304 Ball.
End Details: Screwed Female BSP Parallel Threads BS:21.

Show All Key Features

Product Specifications

Brand	Sant
Bore Type	Full
Nominal Size	100 mm
Number of Ways	2
Body Material	Cast Iron
Body Test Pressure	21barg 300 PSIG (Hyd)
Class	CL-125
Design	Two Piece
Item Code	CI 17
Seat Test Pressure	220 PSIG(15.4barg) (Hyd) & 100 PSIG (6.9 bar) Air
Series	CI
Additional Details	Seat: Renewable Teflon
Standard	IS-9890 -1981 Class-125
material grade	IS 210 Gr FG 200
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 Gali Piao Wali Chawri Bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 Gali Piao Wali Chawri Bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Ball Valve
Weight	72 g

Show All Specifications

Product Details

The Sant 4 Inch Cast Iron Ball Valve, CI 17, offers reliable performance with its robust two-piece design and full bore construction. Engineered to meet IS-9890 -1981 Class-125 standards, it features a renewable Teflon seat and Teflon ring gland packing for enhanced sealing and durability. This 2-way valve withstands seat test pressures of 220 PSIG (hydraulic) and 100 PSIG (air), ensuring secure operation. Equipped with a stainless steel AISI 304 ball and AISI 410 stem trim, it includes screwed female BSP parallel threads BS:21 for easy installation and maintenance in various industrial applications.
