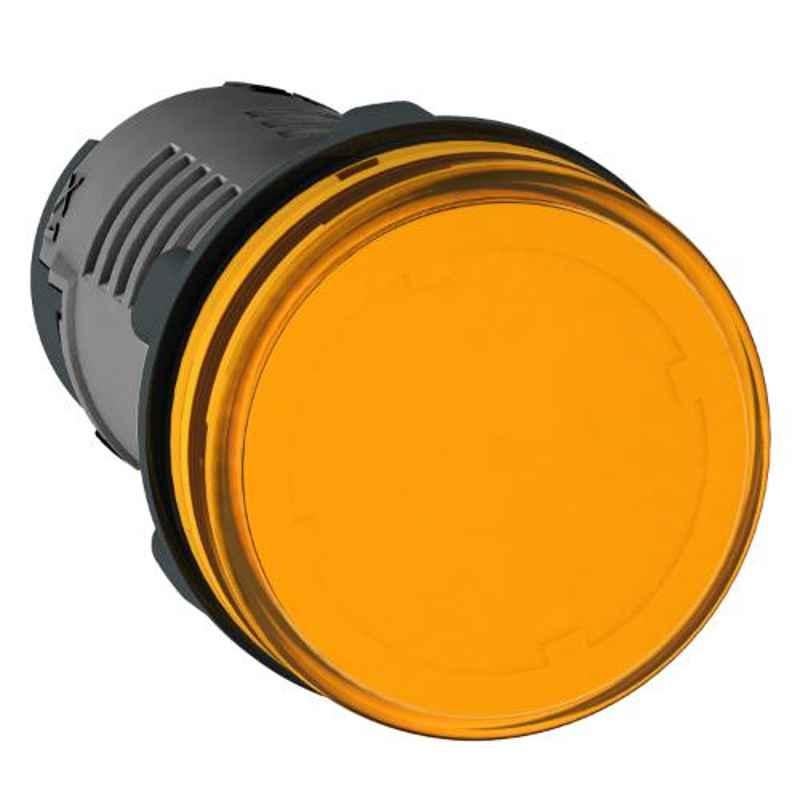

Schneider Electric Easy Harmony XA2 110V Amber Round Integral Led Pilot Light with Screw Clamp Terminal, XA2EVF5LC

Name: Schneider Electric Easy Harmony XA2 110V Amber Round Integral Led Pilot Light with Screw Clamp Terminal, XA2EVF5LC
Brand: Schneider Electric
SKU: MSNEKPQPEJ1Y52
Price: 219 INR
Availability: InStock

₹219 (Incl. of all taxes)

₹185 ₹34 GST

MRP ₹286 23% OFF

Buy More & Save More

Qty 2

₹217 /pc

24% OFF

Qty 3

₹216 /pc

24% OFF

Qty 4 - 5

₹215 /pc

24% OFF

Qty 6 - 7

₹214 /pc

25% OFF

Qty 8+

₹212 /pc

25% OFF

Sign Up & Earn 10 Mogli Coins

& save extra money on your next purchase.

Get Best Offers & Coupons

for Your Purchase

All Coupons & Offers

India’s Leading B2B Online Store

4.7

Avg. Rating

50+ Lac

Orders Delivered

93%

Happy Customers

Money Back

Genuine Product

Easy Return

Get GST Invoice

Secure Payments

365 Days Help Desk

About This Product

Key Features

Screw Clamp for Easy Wiring.
Bright Amber Visual Indicator.
Works on 110V Systems Smoothly.

Product Specifications

Brand	Schneider Electric
Activity	IDSIG
Ambient Temperature	Storage: -40 to 80 deg C Operation: -25 to 70 deg C
Bulb Base	Integral LED
Certification	CE & CCC
Colour	Amber
Component Name	XA2E
Connections	Terminals: Screw Clamp Terminals, <= 2x1.5 mm² with Cable End Conforming to EN/IEC 60947-1 Screw Clamp Terminals, 1x0.5-1x2.5 mm² without Cable End Conforming to EN/IEC 60947-1
Current Consumption	18-21 mA
Customer Care Number	1800 103 0011
Depth	53 mm
Device Mounting	Fixing Hole-Diameter: 22.5 mm 22.3 +0.4/0 Conforming to EN/IEC 60947-5-1
Diameter	22 mm
Fixing Center	>= 30x40 mm (Support Panel) Metal-Thickness: 1-6 mm >= 30x40 mm (Support Panel) Plastic-Thickness: 2-6 mm
Fixing Mode	Fixing Nut Beneath Head Recommended Torque: 1.2 Nm (±0.4 Nm)
Frequency	50-60 Hz
Height	29 mm
Impulse Voltage	6 kV EN/IEC 60947-1
Item Code	XA2EVF5LC
Life Hours	50000hr at Rated Voltage & 25 deg C
Light Source	LED
Mounting Diameter	22 mm
Overvoltage Category	Class I Conforming to IEC 536
Protection Class	IP40 (Front Face) Conforming to IEC 60529 IP40 (Rear Face) Conforming to IEC 60529
Protective Treatment	TC
Series	Easy Harmony XA2
Shape	Round
Shape of Signaling Unit Head	Round
Shock Resistance	50 gn (Duration: 11 ms) for Half Sine Wave Acceleration Conforming to IEC 60068-2-27 30 gn (Duration: 18 ms) for Half Sine Wave Acceleration Conforming to IEC 60068-2-27
Signalling Type	Steady
Standards	GB 14048.1 GB 14048.5 IEC 60947-1 IEC 60947-5-1
Supply Voltage	0.8-1.1 V AC
Terminal Type	(X1-X2)PL
Torque	Tightening: 0.8-1.2 Nm Conforming to EN 60947-1
Type	Monolithic Pilot Light
Vibration Resistance	5 gn (f: 2-500 Hz) Conforming to IEC 60068-2-6
Voltage	110 V
Warranty	1 Year
Weight	0.017 kg
Width	29 mm
Country of origin	India
Manufacturer Details	Schneider Electric, 10th Floor, DLF Cyber city,Building Number 10 C,Gurgaon,Haryana-122002,,India.
Packer Details	Schneider Electric, 10th Floor, DLF Cyber city,Building Number 10 C,Gurgaon,Haryana-122002,,India.
Common/Generic Name	Pilot Light
Weight	17 g

Show All Specifications

Product Details

ntroducing the Schneider Electric Easy Harmony XA2 110V Amber Round Integral LED Pilot Light, a reliable and efficient solution for your pilot lamp needs. This product belongs to the category of Pilot Lamps, designed and manufactured by the reputable brand Schneider Electric.

Featuring a mounting diameter of 22 mm, this monolithic pilot light is easy to install and provides a secure connection with its screw clamp terminal. Weighing only 0.017 kg, it is lightweight and portable.

For easy installation, the fixing mode of this pilot light involves a fixing nut beneath the head, and it is recommended to use a torque of 1.2 Nm (±0.4 Nm).

The component name of this pilot light is XA2E, and it is specifically designed for IDSIG activities. For any inquiries or assistance, our dedicated customer care team can be reached at 1800 103 0011.

Choose the Schneider Electric Easy Harmony XA2 110V Amber Round Integral LED Pilot Light for a reliable and efficient solution to your pilot lamp needs.
