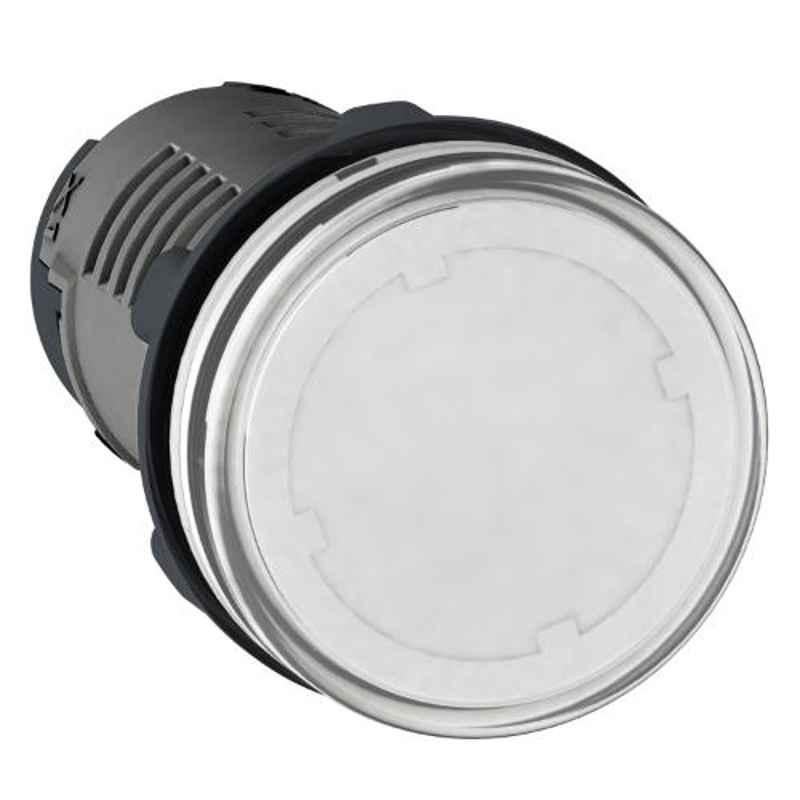

Schneider Electric Easy Harmony XA2 110V White Round Integral Led Pilot Light with Screw Clamp Terminal, XA2EVF1LC

Name: Schneider Electric Easy Harmony XA2 110V White Round Integral Led Pilot Light with Screw Clamp Terminal, XA2EVF1LC
Brand: Schneider Electric
SKU: MSN4K6ZYEXX3KQ
Price: 249 INR
Availability: OutOfStock
Rating: 4.6 (5 reviews)

4.6

(5 Reviews)

₹249 (Incl. of all taxes)

₹211 + ₹38 GST

MRP ₹338 26% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Reach Free of SVHC.
Mercury Free & RoHS Exemption Information.

Product Specifications

Brand	Schneider Electric
Activity	IDSIG
Ambient Temperature	Storage: -40 to 80 deg C Operation: -25 to 70 deg C
Bulb Base	Integral LED
Certification	CE & CCC
Colour	White
Component Name	XA2E
Connections	Terminals: Screw Clamp Terminals, <= 2x1.5 mm² with Cable End Conforming to EN/IEC 60947-1 Screw Clamp Terminals, 1x0.5-1x2.5 mm² without Cable End Conforming to EN/IEC 60947-1
Customer Care Number	1800 103 0011
Depth	53 mm
Device Mounting	Fixing Hole-Diameter: 22.5 mm 22.3 +0.4/0 Conforming to EN/IEC 60947-5-1
Diameter	22 mm
Fixing Center	>= 30x40 mm (Support Panel) Metal-Thickness: 1-6 mm >= 30x40 mm (Support Panel) Plastic-Thickness: 2-6 mm
Fixing Mode	Fixing Nut Beneath Head Recommended Torque: 1.2 Nm (±0.4 Nm)
Frequency	50-60 Hz
Height	29 mm
Impulse Voltage	6 kV EN/IEC 60947-1
Item Code	XA2EVF1LC
Life Hours	50000hr at Rated Voltage & 25 deg C
Light Source	LED
Mounting Diameter	22 mm
Overvoltage Category	Class I Conforming to IEC 536
Protection Class	IP40 (Front Face) Conforming to IEC 60529 IP40 (Rear Face) Conforming to IEC 60529
Protective Treatment	TC
Series	Easy Harmony XA2
Shape	Round
Shape of Signaling Unit Head	Round
Shock Resistance	50 gn (Duration: 11 ms) for Half Sine Wave Acceleration Conforming to IEC 60068-2-27 30 gn (Duration: 18 ms) for Half Sine Wave Acceleration Conforming to IEC 60068-2-27
Signalling Type	Steady
Standards	IEC 60947-1 GB 14048.1 IEC 60947-5-1 GB 14048.5
Supply Voltage	0.8-1.1 V AC
Terminal Type	(X1-X2)PL
Type	Monolithic Pilot Light
Vibration Resistance	5 gn (f: 2-500 Hz) Conforming to IEC 60068-2-6
Voltage	110 V
Warranty	1 Year
Weight	0.017 kg
Width	29 mm
Country of origin	India
Manufacturer Details	Schneider Electric, 10th Floor, DLF Cyber city,Building Number 10 C,Gurgaon,Haryana-122002,,India.
Packer Details	Schneider Electric, 10th Floor, DLF Cyber city,Building Number 10 C,Gurgaon,Haryana-122002,,India.
Common/Generic Name	Pilot Light
Weight	17 g

Show All Specifications

Product Details

The Schneider Electric Easy Harmony XA2EVF1LC pilot light is a compact, visually clear indicator solution designed for control panels in industrial and commercial environments. Featuring a white, round, integral LED lens, it provides excellent visibility for status indication, signaling functions such as 'Power On' or 'System Ready'. Operating at 110V AC, the unit delivers energy-efficient illumination with a long service life, reducing maintenance frequency and costs. The screw clamp terminal ensures firm and reliable wiring connections, while its robust plastic bezel and body offer resistance to vibration, dust, and moisture. Designed to fit standard 22mm diameter panel cutouts, it allows easy and secure installation into new and existing panels. Compliant with international electrical safety standards, the XA2EVF1LC combines functional design with dependable performance, making it ideal for automation systems, machinery controls, and any application where visual feedback is critical to operation and safety.
