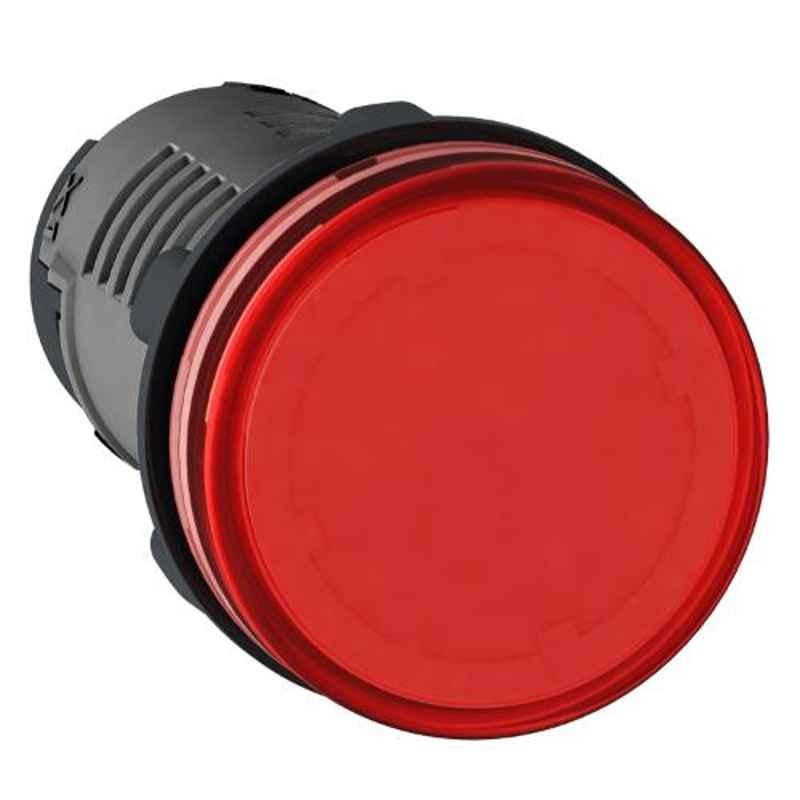

Schneider Electric 22mm 110VDC Red Round LED Pilot Light with Screw Clamp Terminal, XA2EVFD4LC

Name: Schneider Electric 22mm 110VDC Red Round LED Pilot Light with Screw Clamp Terminal, XA2EVFD4LC
Brand: Schneider Electric
SKU: MSNVK13P2MMJ91
Price: 594 INR
Availability: OutOfStock

₹198 (Incl. of all taxes)

₹167 ₹31 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Reach Free of SVHC.
Mercury Free & RoHS Exemption Information.

Product Specifications

Brand	Schneider Electric
Activity	IDSIG
Ambient Temperature	Storage: -40 to 80 deg C Operation: -25 to 70 deg C
Bulb Base	Integral LED
Certification	CE & CCC
Component Name	XA2E
Connections	Terminals: Screw Clamp Terminals, <= 2x1.5 mm² with Cable End Conforming to EN/IEC 60947-1 Screw Clamp Terminals, 1x0.5-1x2.5 mm² without Cable End Conforming to EN/IEC 60947-1
Current Consumption	18-21 mA
Customer Care Number	1800 103 0011
Depth	53 mm
Device Mounting	Fixing Hole-Diameter: 22.5 mm 22.3 +0.4/0 Conforming to EN/IEC 60947-5-1
Diameter	22 mm
Fixing Center	>= 30x40 mm (Support Panel) Metal-Thickness: 1-6 mm >= 30x40 mm (Support Panel) Plastic-Thickness: 2-6 mm
Fixing Mode	Fixing Nut Beneath Head Recommended Torque: 1.2 Nm (±0.4 Nm)
Frequency	50-60 Hz
Height	29 mm
Impulse Voltage	6 kV EN/IEC 60947-1
Item Code	XA2EVFD4LC
Lens Colour	Red
Life Hours	50000hr at Rated Voltage & 25 deg C
Light Source	LED
Mounting Diameter	22 mm
Overvoltage Category	Class I Conforming to IEC 536
Protection Class	IP40 (Front Face) Conforming to IEC 60529 IP40 (Rear Face) Conforming to IEC 60529
Protective Treatment	TC
Series	Harmony Easy XA2
Shape	Screw Head: Cross Compatible with JIS No 1 Screwdriver Cross Compatible with Philips No 1 Screwdriver Cross Compatible with Pozidriv No 1 Screwdriver Slotted Compatible with Flat 4 mm Screwdriver Slotted Compatible with Flat 5.5 mm Screwdriver
Shape of Signaling Unit Head	Round
Shock Resistance	50 gn (Duration: 11 ms) for Half Sine Wave Acceleration Conforming to IEC 60068-2-27 30 gn (Duration: 18 ms) for Half Sine Wave Acceleration Conforming to IEC 60068-2-27
Signalling Type	Steady
Standards	GB 14048.5 IEC 60947-1 GB 14048.1 IEC 60947-5-1
Supply Voltage	0.8-1.1 V DC
Terminal Type	(X1-X2)PL
Torque	Tightening: 0.8-1.2 Nm Conforming to EN 60947-1
Type	Monolithic Pilot Light
Vibration Resistance	5 gn (f: 2-500 Hz) Conforming to IEC 60068-2-6
Voltage	110 V DC Insulation: 250 V (Pollution Degree 3) Conforming to EN/IEC 60947-1
Warranty	1 Year
Weight	0.017 kg
Width	29 mm
Country of origin	India
Manufacturer Details	Schneider Electric, 10th Floor, DLF Cyber city,Building Number 10 C,Gurgaon,Haryana-122002,,India.
Packer Details	Schneider Electric, 10th Floor, DLF Cyber city,Building Number 10 C,Gurgaon,Haryana-122002,,India.
Common/Generic Name	Pilot Light
Weight	17 g

Show All Specifications

Product Details

Schneider Electric 22mm 110VDC Red Round LED Pilot Light with Screw Clamp Terminal, XA2EVFD4LC is a premium quality product from Schneider Electric . Moglix is a well-known ecommerce platform for qualitative range of Pilot Lamps. All Schneider Electric 22mm 110VDC Red Round LED Pilot Light with Screw Clamp Terminal, XA2EVFD4LC are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Schneider Electric 22mm 110VDC Red Round LED Pilot Light with Screw Clamp Terminal, XA2EVFD4LC, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Schneider Electric products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Schneider Electric Pilot Lamps .
