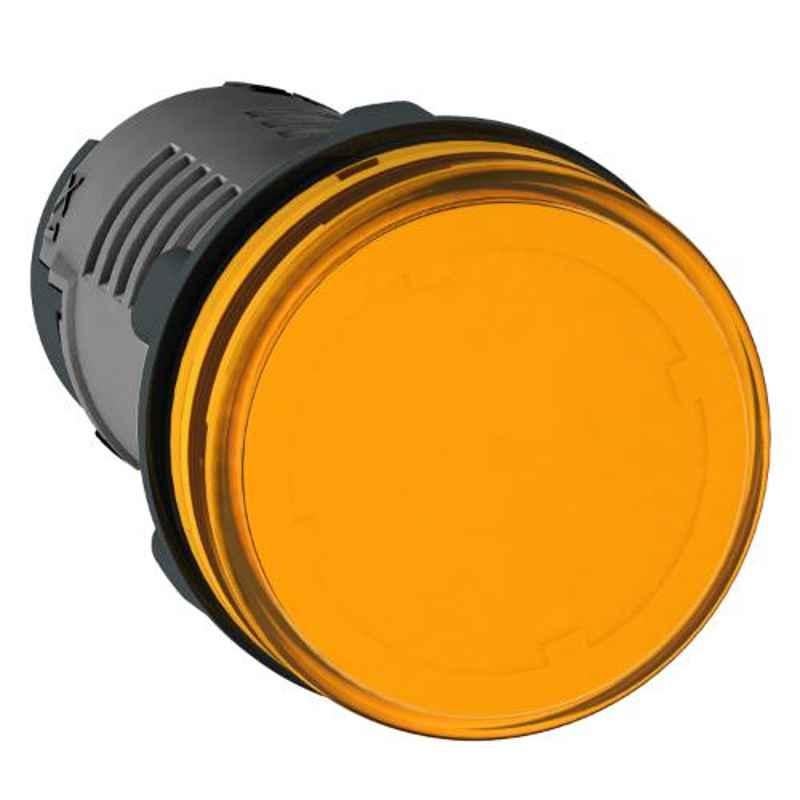

Schneider Electric Easy Harmony XA2 380-400V Amber Round Integral Led Pilot Light with Screw Clamp Terminal, XA2EVQ5LC

Hover to Zoom

Schneider Electric Easy Harmony XA2 380-400V Amber Round Integral Led Pilot Light with Screw Clamp Terminal, XA2EVQ5LC

Name: Schneider Electric Easy Harmony XA2 380-400V Amber Round Integral Led Pilot Light with Screw Clamp Terminal, XA2EVQ5LC
Brand: Schneider Electric
SKU: MSNQ94P6WVJNK0
Price: 1350 INR
Availability: OutOfStock

₹270 (Incl. of all taxes)

₹228 ₹42 GST

MRP ₹328 17% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Operates at 380-400V Suitable for Higher Voltage Applications.
Screw Clamp Terminal Ensures Easy & Reliable Wiring Connection.
Amber Round Integral LED Pilot Light for Clear Visual Signalling.

Product Specifications

Brand	Schneider Electric
Activity	IDSIG
Ambient Temperature	Storage: -40 to 80 deg C Operation: -25 to 70 deg C
Bulb Base	Integral LED
Certification	CE & CCC
Colour	Amber
Component Name	XA2E
Connections	Terminals: Screw Clamp Terminals, <= 2x1.5 mm² with Cable End Conforming to EN/IEC 60947-1 Screw Clamp Terminals, 1x0.5-1x2.5 mm² without Cable End Conforming to EN/IEC 60947-1
Customer Care Number	1800 103 0011
Depth	53 mm
Device Mounting	Fixing Hole-Diameter: 22.5 mm 22.3 +0.4/0 Conforming to EN/IEC 60947-5-1
Diameter	22 mm
Fixing Center	>= 30x40 mm (Support Panel) Metal-Thickness: 1-6 mm >= 30x40 mm (Support Panel) Plastic-Thickness: 2-6 mm
Fixing Mode	Fixing Nut Beneath Head Recommended Torque: 1.2 Nm (±0.4 Nm)
Frequency	50-60 Hz
Height	29 mm
Impulse Voltage	6 kV EN/IEC 60947-1
Item Code	XA2EVQ5LC
Life Hours	50000hr at Rated Voltage & 25 deg C
Light Source	LED
Mounting Diameter	22 mm
Overvoltage Category	Class I Conforming to IEC 536
Protection Class	IP40 (Front Face) Conforming to IEC 60529 IP40 (Rear Face) Conforming to IEC 60529
Protective Treatment	TC
Series	Easy Harmony XA2
Shape	Round
Shape of Signaling Unit Head	Round
Shock Resistance	50 gn (Duration: 11 ms) for Half Sine Wave Acceleration Conforming to IEC 60068-2-27 30 gn (Duration: 18 ms) for Half Sine Wave Acceleration Conforming to IEC 60068-2-27
Signalling Type	Steady
Standards	IEC 60947-5-1 IEC 60947-1 GB 14048.5 GB 14048.1
Supply Voltage	0.8-1.1 V AC
Terminal Type	(X1-X2)PL
Torque	Tightening: 0.8-1.2 Nm Conforming to EN 60947-1
Type	Monolithic Pilot Light
Vibration Resistance	5 gn (f: 2-500 Hz) Conforming to IEC 60068-2-6
Voltage	380-400 V
Warranty	1 Year
Weight	0.017 kg
Width	29 mm
Country of origin	India
Manufacturer Details	Schneider Electric, 10th Floor, DLF Cyber city,Building Number 10 C,Gurgaon,Haryana-122002,,India.
Packer Details	Schneider Electric, 10th Floor, DLF Cyber city,Building Number 10 C,Gurgaon,Haryana-122002,,India.
Common/Generic Name	Pilot Light
Weight	17 g

Show All Specifications

Product Details

he Schneider Electric Easy Harmony XA2 380-400V Amber Round Integral Led Pilot Light with Screw Clamp Terminal, XA2EVQ5LC is a reliable and efficient pilot lamp that falls under the category of Pilot Lamps. This product is proudly brought to you by the renowned brand Schneider Electric, known for its high-quality electrical equipment.

With a mounting diameter of 22 mm, this monolithic pilot light is designed to provide a clear and distinct indication of the operational status of various electrical systems. Weighing just 0.017 kg, it is lightweight and easy to handle. The fixing nut beneath the head is the recommended fixing mode and requires a torque of 1.2 Nm (±0.4 Nm) for optimal performance.

The XA2E component of this pilot light ensures seamless integration with other electrical components, making it versatile and adaptable for various applications. Its activity IDSIG ensures smooth and reliable signaling. And in case of any queries or assistance, our dedicated customer care number 1800 103 0011 is always available to assist you.

Overall, the Schneider Electric Easy Harmony XA2 380-400V Amber Round Integral Led Pilot Light is a dependable and efficient solution for your pilot lamp needs.
