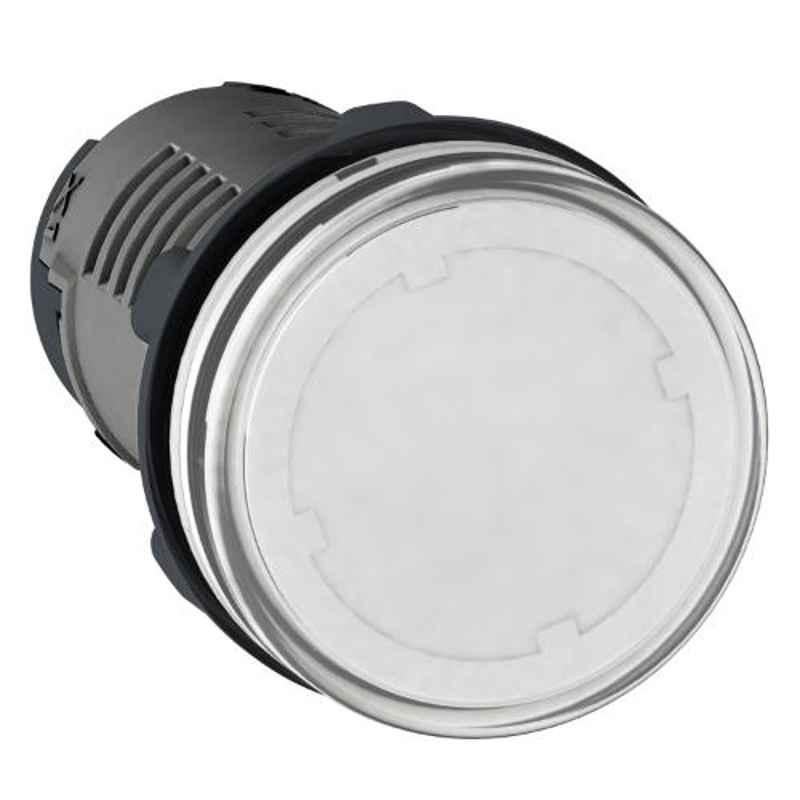

Schneider Electric Easy Harmony XA2 380-400V White Round Integral Led Pilot Light with Screw Clamp Terminal, XA2EVQ1LC

Name: Schneider Electric Easy Harmony XA2 380-400V White Round Integral Led Pilot Light with Screw Clamp Terminal, XA2EVQ1LC
Brand: Schneider Electric
SKU: MSN75DQJ3D7D92
Price: 1350 INR
Availability: OutOfStock
Rating: 4.6 (5 reviews)

4.6

(5 Reviews)

₹270 (Incl. of all taxes)

₹228 + ₹42 GST

MRP ₹307 12% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Reach Free of SVHC.
Mercury Free & RoHS Exemption Information.

Product Specifications

Brand	Schneider Electric
Activity	IDSIG
Ambient Temperature	Storage: -40 to 80 deg C Operation: -25 to 70 deg C
Bulb Base	Integral LED
Certification	CE & CCC
Colour	White
Component Name	XA2E
Connections	Terminals: Screw Clamp Terminals, <= 2x1.5 mm² with Cable End Conforming to EN/IEC 60947-1 Screw Clamp Terminals, 1x0.5-1x2.5 mm² without Cable End Conforming to EN/IEC 60947-1
Customer Care Number	1800 103 0011
Depth	53 mm
Device Mounting	Fixing Hole-Diameter: 22.5 mm 22.3 +0.4/0 Conforming to EN/IEC 60947-5-1
Diameter	22 mm
Fixing Center	>= 30x40 mm (Support Panel) Metal-Thickness: 1-6 mm >= 30x40 mm (Support Panel) Plastic-Thickness: 2-6 mm
Fixing Mode	Fixing Nut Beneath Head Recommended Torque: 1.2 Nm (±0.4 Nm)
Frequency	50-60 Hz
Height	29 mm
Impulse Voltage	6 kV EN/IEC 60947-1
Item Code	XA2EVQ1LC
Life Hours	50000hr at Rated Voltage & 25 deg C
Light Source	LED
Mounting Diameter	22 mm
Overvoltage Category	Class I Conforming to IEC 536
Protection Class	IP40 (Front Face) Conforming to IEC 60529 IP40 (Rear Face) Conforming to IEC 60529
Protective Treatment	TC
Series	Easy Harmony XA2
Shape	Round
Shape of Signaling Unit Head	Round
Shock Resistance	50 gn (Duration: 11 ms) for Half Sine Wave Acceleration Conforming to IEC 60068-2-27 30 gn (Duration: 18 ms) for Half Sine Wave Acceleration Conforming to IEC 60068-2-27
Signalling Type	Steady
Standards	GB 14048.1 IEC 60947-5-1 GB 14048.5 IEC 60947-1
Supply Voltage	0.8-1.1 V AC
Terminal Type	(X1-X2)PL
Type	Monolithic Pilot Light
Vibration Resistance	5 gn (f: 2-500 Hz) Conforming to IEC 60068-2-6
Voltage	380-400 V
Warranty	1 Year
Weight	0.017 kg
Width	29 mm
Country of origin	India
Manufacturer Details	Schneider Electric, 10th Floor, DLF Cyber city,Building Number 10 C,Gurgaon,Haryana-122002,,India.
Packer Details	Schneider Electric, 10th Floor, DLF Cyber city,Building Number 10 C,Gurgaon,Haryana-122002,,India.
Common/Generic Name	Pilot Light
Weight	17 g

Show All Specifications

Product Details

The Schneider Electric Easy Harmony XA2EVQ1LC is a premium-grade white round pilot light engineered for industrial signaling applications. Operating on 380–400V, this integral LED unit offers high visibility and long operational life, making it ideal for monitoring electrical circuits and equipment status at a glance. The built-in LED provides consistent brightness with low power consumption, while the smooth lens design ensures even light diffusion for maximum clarity. Constructed with robust materials and fitted with secure screw clamp terminals, it guarantees reliable performance even in harsh industrial environments. The XA2 series complies with international safety and durability standards, ensuring safe, long-term use. Its compact and modular design allows for easy installation in control panels, switchboards, and machinery interfaces. Whether you're managing manufacturing lines, HVAC systems, or automated equipment, this pilot light delivers dependable, maintenance-free signaling. Its plug-and-play convenience combined with a sleek finish makes it an ideal choice for professionals seeking efficiency and reliability in visual indicators.
