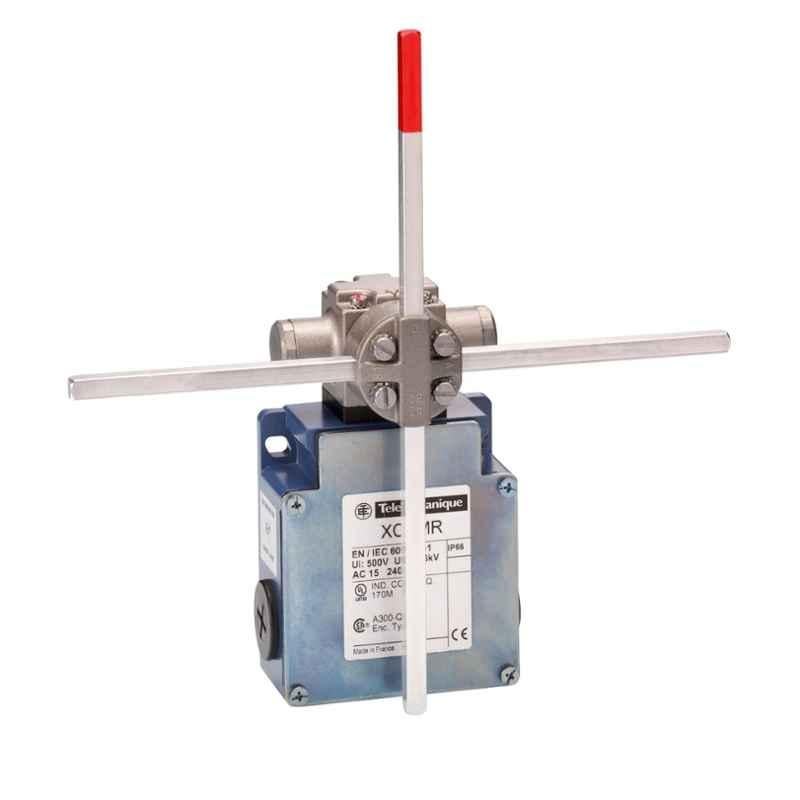

Schneider Electric 3A 230V AC Limit Switch, XCKMR54D1H29

Name: Schneider Electric 3A 230V AC Limit Switch, XCKMR54D1H29
Brand: Schneider Electric
SKU: MSNG9VNEYOW6KP
Price: 13249 INR
Availability: OutOfStock

₹13,249 (Incl. of all taxes)

₹11,227 + ₹2,022 GST

MRP ₹13,594 2% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Fixed Body with Rotary Head.
3 Cable entries tapped for M20x1.5 cable gland, 7-13mm cable outer diameter.
Slow-break, staggered Contact Operation.

Product Specifications

Brand	Schneider Electric
Head Type	Rotary Head
Item Code	XCKMR54D1H29
Body Material	Zamak
Contact Configuration	2 x (2NC)
Current	3 Amp
Depth	59 mm
Displacement	Angle: -180 deg/180 deg (Max)
Head Material	Zamak
Height	118 mm
Impact Resistant	IK07 conforming to EN 50102
Material	Metal
Mechanical Durability	2000000 cycles
Model	XCKMR
Number of Poles	4
Number of Positions	5 electrical positions
Operating Temperature	Ambient: -25 to 70 deg C
Operation	Stay put crossed rods lever metal square rod 6 mm, L = 200 mm
Protection	Short Circuit: 10 A cartridge fuse, type gG
Protection Class	IP66
Series	OsiSense XC
Shock Resistance	Class I conforming to IEC 60536
Storage Temperature	Ambient: -40 to 85 deg C
Terminal Type	Screw-clamp terminals (clamping capacity: 1x0.5 - 2x2.5 mm²)
Torque	Positive Opening: 0.75 Nm (min) Tripping: 0.5 Nm (min)
Type	Body type: Fixed Head Type: Rotary Head
Voltage	230 V AC
Weight	0.55 Kg
Width	200 mm
Weight	550 g

Show All Specifications

Product Details

The Schneider Electric 3A 230V AC Limit Switch, XCKMR54D1H29, is a top-of-the-line rotary head switch designed for precision and durability. With a fixed body and rotary head, this switch is perfect for industrial applications where reliability is key. The switch features three cable entries tapped for M20x1.5 cable glands, accommodating cable outer diameters of 7-13mm. The slow-break, staggered contact operation ensures smooth and safe performance. Made of high-quality Zamak, this limit switch can withstand ambient temperatures ranging from -25 to 70 degrees Celsius. With four poles and a weight of just 0.55 Kg, this Schneider Electric switch is a trustworthy choice for your automation needs.
