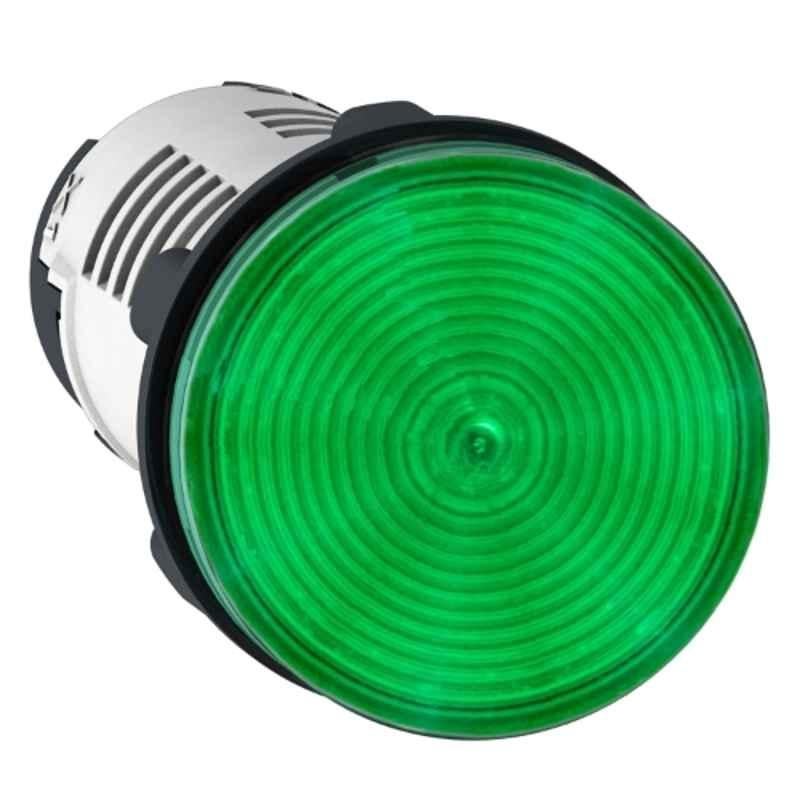

Schneider Electric Harmony XB7 22mm 24V Green LED Round Pilot Light with Smooth Lens, XB7EV03BPN

Schneider Electric Harmony XB7 22mm 24V Green LED Round Pilot Light with Smooth Lens, XB7EV03BPN

Hover to Zoom

Schneider Electric Harmony XB7 22mm 24V Green LED Round Pilot Light with Smooth Lens, XB7EV03BPN

Name: Schneider Electric Harmony XB7 22mm 24V Green LED Round Pilot Light with Smooth Lens, XB7EV03BPN
Brand: Schneider Electric
SKU: MSNE5N8M3GWYKL
Price: 279 INR
Availability: InStock

₹279 (Incl. of all taxes)

₹265 ₹14 GST

MRP ₹336 16% OFF

Buy More & Save More

Qty 2

₹276 /pc

17% OFF

Qty 3

₹275 /pc

18% OFF

Qty 4 - 5

₹274 /pc

18% OFF

Qty 6 - 7

₹272 /pc

19% OFF

Qty 8+

₹270 /pc

19% OFF

Sign Up & Earn 10 Mogli Coins

& save extra money on your next purchase.

Get Best Offers & Coupons

for Your Purchase

All Coupons & Offers

India’s Leading B2B Online Store

4.7

Avg. Rating

50+ Lac

Orders Delivered

93%

Happy Customers

Money Back

Genuine Product

Easy Return

Get GST Invoice

Secure Payments

365 Days Help Desk

About This Product

Key Features

Uses an Integral LED & Screw Clamp Terminals.
It is Easily Installed into Standard 22mm Diameter Cut-Outs.
It is Impact Resistant, Dust Resistant, Water Resistant & Vibration Resistant.

Product Specifications

Brand	Schneider Electric
Ambient Temperature	Operation: -25 to 70 deg C Storage: -40 to 70 deg C
Bulb Base	Integral LED
Current	20-27 mA
Current Rating	1000 Amp
Dimensions	29x29x54 mm
Frequency	50-60 Hz
Head Shape	Round
Impulse Withstand Voltage	6 kV
Insulation Voltage	250 V
Item Code	XB7EV03BPN
Lens Colour	Green
Life Cycle	70000 hr at Rated Voltage & 25 deg C
Light Source	LED
Mounting	Fixing Hole: Diameter: 22.5 mm 22.3 +0.4/0
Mounting Diameter	22 mm
Protection Class	Rear Face: IP20 Front Face: IP65
Series	Harmony XB7
Shock Resistance	50 gn (Duration = 11 ms) for Half Sine Wave Acceleration
Standards	UL 508 JIS C8201-5-1 CSA C22.2 No 14 EN/IEC 60947-5-1 EN/IEC 60947-1 JIS C8201-1
Supply Voltage	24 V AC/DC
Terminal Type	Screw Clamp Terminals, <= 2 x 1.5 mm² with Cable End Screw Clamp Terminals, 1 x 0.22-2 x 2.5 mm² without Cable End
Tightening Torque	0.8-1.2 Nm
Vibration Resistance	5 gn (f= 2-500 Hz)
Warranty	18 Months
Country of origin	India
Manufacturer Details	Schneider Electric DLF Building No 10, 9th Floor, Tower C, DLF Cyber City, Gurgaon - 122002
Packer Details	Schneider Electric DLF Building No 10, 9th Floor, Tower C, DLF Cyber City, Gurgaon - 122002
Common/Generic Name	Pilot Light
Dimensions LxWxH	2.9x2.9x5.4 cm
Weight	0.3 kg

Show All Specifications

Product Details

The Schneider Electric Harmony XB7 22mm 24V Green LED Round Pilot Light with Smooth Lens, XB7EV03BPN is a top-of-the-line pilot lamp designed for industrial applications. With a mounting diameter of 22mm, current rating of 1000 Amp, and dimensions of 29x29x54 mm, this pilot light is built to last. It operates in temperatures ranging from -25 to 70 deg C and offers an insulation voltage of 250V.Key features include an integral LED, screw clamp terminals, easy installation into standard 22mm diameter cut-outs, impact resistance, dust resistance, water resistance, and vibration resistance. The Schneider Electric Harmony XB7 pilot light is a reliable and efficient solution for your industrial lighting needs.
