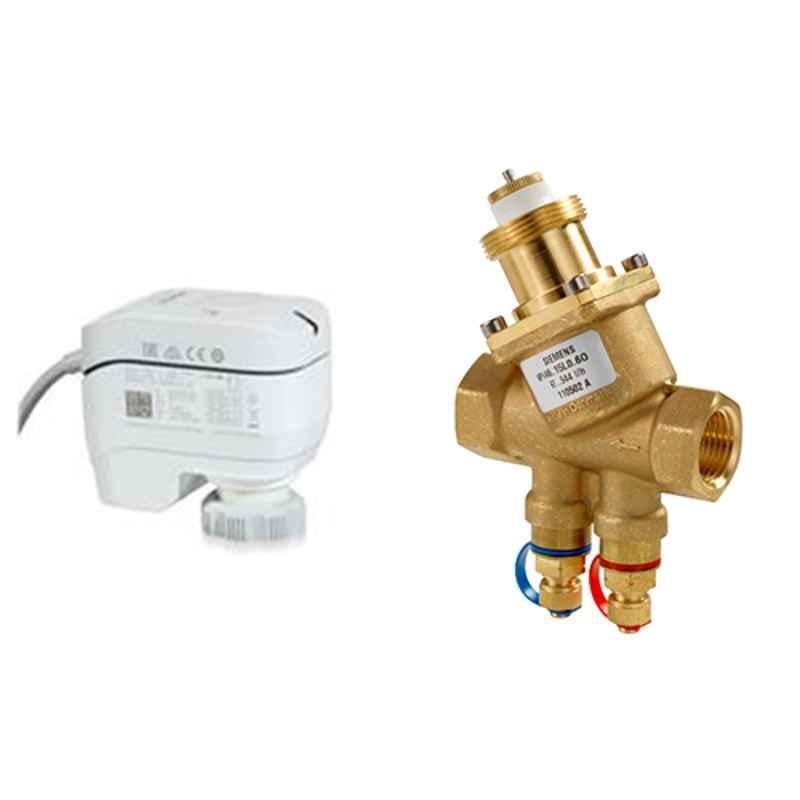

Siemens VPI46.32F4Q DN25 PN32 Pressure Independent Control Valve & SSA161E.05HF 2.5VA IP54 Electromotoric Actuator Combo

AVAILABLE ON REQUEST

About This Product

Key Features

Volumetric Flow with Differential Pressure Test Points.

Product Specifications

Brand	Siemens
Additional Details	Leakage rate: Class IV Connecting thread: Rp 1¼ inch
Ambient Temperature	1-50 deg C
Cable Length	1.5 m
Degree of Protection	Delete
Flow Medium	Water & Water with Anti-Freeze
Force	100 N
Material	Brass
Medium Temperature	1-120 deg C
Model	VPI46.32F4Q SSA161E.05HF
Mounting	Position: 360 Deg
Nominal Size	DN35
Notes	Images are for Reference Purposes Only
Operating Pressure	2500 kPa
Operating Voltage	24 V AC/DC
Position	Positioning Signal: 0-10 V DC
Power Consumption	2.5 VA
Pressure Rating	PN25
Protection Class	IP54
Stroke	2.5 mm 5 mm
Suitable For	Ventilation & Air Conditioning Plants for Control on the Water Side & Automatic Hydraulic Balancing of Terminal Units, Such as Fan Coils, Induction Units & Iin Heat Exchangers for Heating or Cooling, Heating Zones Like Self-contained Heating Systems, Apartments & Individual Rooms
Volumetric Flow Rate	4000 l/h
Warranty	12 Months
Country of origin	India
Manufacturer Details	Siemens Limited, Birla Aurora, Level 21, Plot No. 1080, Dr. Annie Besant Road, Worli, Mumbai 400030, India
Packer Details	Siemens Limited, Birla Aurora, Level 21, Plot No. 1080, Dr. Annie Besant Road, Worli, Mumbai 400030, India
Common/Generic Name	Siemens Combo
Dimensions LxWxH	12.5x25.6x11.3 cm
Weight	1.3 kg

Show All Specifications

Product Details

Siemens VPI46.32F4Q DN25 PN32 Pressure Independent Control Valve & SSA161E.05HF 2.5VA IP54 Electromotoric Actuator Combo is a premium quality product from Siemens . Moglix is a well-known ecommerce platform for qualitative range of HVAC Valves. All Siemens VPI46.32F4Q DN25 PN32 Pressure Independent Control Valve & SSA161E.05HF 2.5VA IP54 Electromotoric Actuator Combo are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Siemens VPI46.32F4Q DN25 PN32 Pressure Independent Control Valve & SSA161E.05HF 2.5VA IP54 Electromotoric Actuator Combo, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Siemens products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Siemens HVAC Valves .
