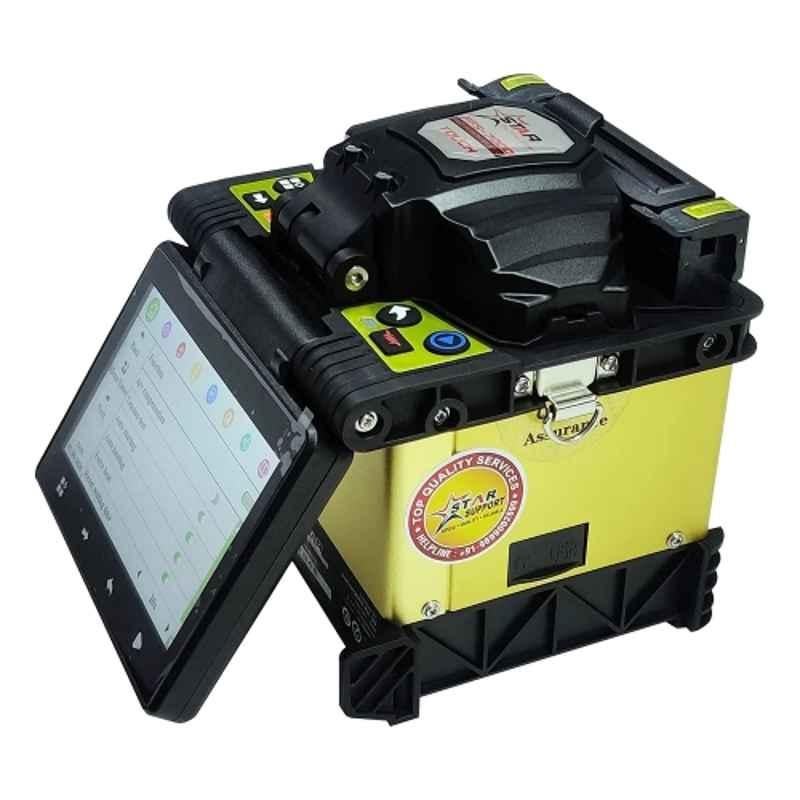

Star The Fiber Expert 5-16mm Yellow Fusion Splicer, FFS-7000

Name: Star The Fiber Expert 5-16mm Yellow Fusion Splicer, FFS-7000
Brand: Star
SKU: MSN153V3462YK3
Price: 160126 INR
Availability: OutOfStock

₹160,126 (Incl. of all taxes)

₹135,700 ₹24,426 GST

MRP ₹220,000 27% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Designed for Outdoor Work, Its Output Light is Strong Enough to be Visible at Night.
Revolutionary Splicing Machine, is Equipped with a Sharp, High Definition Touch Screen.
All the Parameters & Data are Displayed on Screen, which Makes Operation Easier & Reduces the Time Consumption.
It is One of the Most Hi-Tech & has Inbuilt Automatic Fiber Type Identification for Efficient & Effective Working, Making it One of the Most Advanced Splicing Machines in India.

Show All Key Features

Product Specifications

Brand	Star
Acoustic Noise	60 dB
Additional Details	Tensile Test: 2-2.25 N Tube Heating Time: 13 sec (Adjustable) Average Splice Loss: 0.02 dB (SMF), 0.01 dB (MMF) & 0.04 dB (NZ/DS)
Battery Capacity	6800 mAh
Battery Type	Li-ion
Battery Voltage	12 V
Body Colour	Yellow
Capacity	Splice Programs: Max 100
Compatible With	Applicable Fibers: Single/SMF (G.652/652D), MMF(G.651), DSF(G.653), NZDSF(G.655), G657A & G657B
Diameter	Cladding: 80-150 um Sheath: 100-1000 um
Display Size	5 inch
Display Type	LCD
Frequency	50/60 Hz
Length	Cleave: 5-16 mm
Life	Electrode: 5000 Splices
Model	FFS-7000
Operating Humidity	0 to 95% RH
Operating Temperature	-20 to 60 deg C
Run Time	Splice: 6 sec (SM Fast)
Series	The Fiber Expert
Storage Capacity	20000 Records
Voltage	100-240 V
Country of origin	India
Manufacturer Details	B1-626, 2nd Floor, Janak Puri, New Delhi-110058, India
Packer Details	B1-626, 2nd Floor, Janak Puri, New Delhi-110058, India
Common/Generic Name	Fusion Splicer
Dimensions LxWxH	38x30x23 cm
Weight	6 kg

Show All Specifications

Product Details

Introducing the Star 'The Fiber Expert FFS-7000' Yellow Fusion Splicer, a must-have product for all your fiber optic needs. This cutting-edge fusion splicer can effortlessly join fibers with a diameter of 5-16mm, making it perfect for a variety of applications. The sleek and vibrant yellow design adds a touch of style to any workspace, making it an ideal addition to the 'Other Office Supplies' category.

Operating in a wide range of temperatures from -20 to 60 degrees Celsius, this fusion splicer is built to withstand even the harshest conditions. With an impressive operating humidity range of 0 to 95% RH, it guarantees optimal performance and reliability.

The LCD display provides clear and precise visuals, allowing you to monitor and control every aspect of the fusion splicing process effortlessly. Additionally, the acoustic noise level of just 60 dB ensures a peaceful working environment.

Equipped with a model FFS-7000, this fusion splicer offers exceptional quality and accuracy. The cladding diameter of 80-150 um ensures precise fusion with minimal loss. Plus, the tensile test of 2-2.25 N proves its robustness and durability.

In summary, the Star 'The Fiber Expert FFS-7000' Yellow Fusion Splicer is a powerful and reliable tool that exceeds industry standards. With its versatile features, it's a game-changer for any fiber optic professional.
