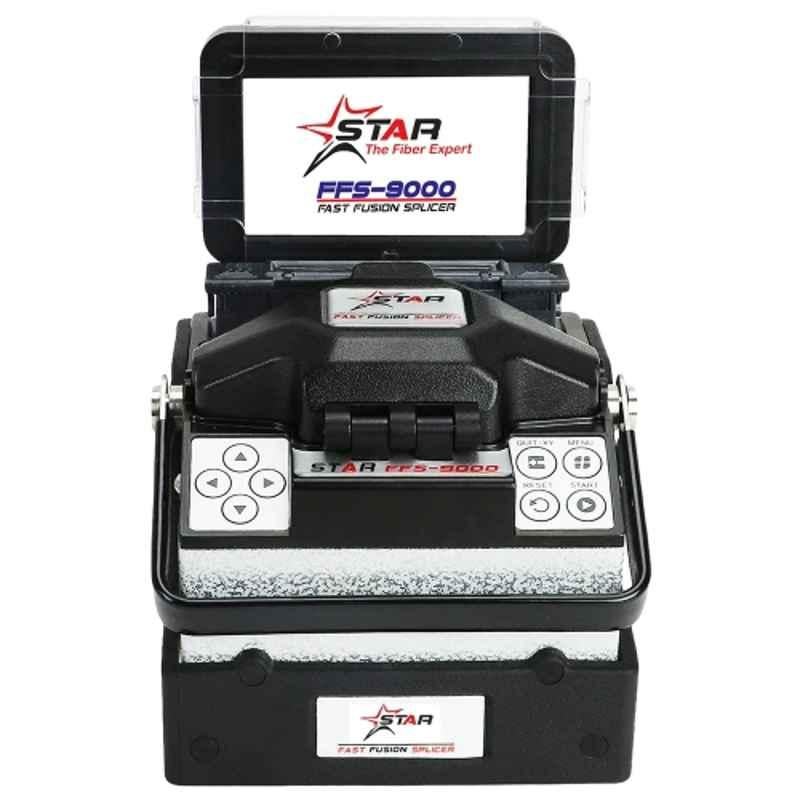

Star The Fiber Expert 5-16mm Black Fusion Splicer, FFS-9000

Name: Star The Fiber Expert 5-16mm Black Fusion Splicer, FFS-9000
Brand: Star
SKU: MSNQ94P1DYXEK0
Price: 194936 INR
Availability: OutOfStock

₹194,936 (Incl. of all taxes)

₹165,200 ₹29,736 GST

MRP ₹240,000 18% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Strengthened Functions Like Shockproof & Dust Proof.
This Machine has More Features & Capabilities, Like More Battery Capacity & Colorized LCD Screen.
Easier to Cover All the Demands of Our Clients & Businesses with a Faster Splicing Process & More Efficiency.
It has a Typical Fusion Time of 7 Seconds & a Typical Quick Heating Time, with Automatic Intelligent Heating When Closing the Cover.
It is a Top-Notch Fusion Splicing Machine Specially Developed with the Capability of Carrying Out a Precise Splicing Process of Fusing Two Broken Single Micro Strands of Fiber Optic Cable Ends.

Show All Key Features

Product Specifications

Brand	Star
Additional Details	Tensile Test: 2.25 N Tube Heating Time: 17 sec Average Splice Loss: 0.02 dB (SM), 0.01 dB(MM), 0.04 dB(DS) & 0.04 dB(NZDS)
Battery Backup	3 hrs
Battery Capacity	6800 mAh
Battery Type	Li-ion
Battery Voltage	11.1 V
Body Colour	Black
Camera	2xCMOS
Capacity	Splice Programs: Max 80
Compatible With	Applicable Fibers: Single/SMF(G.652/652D), MMF(G.651), DSF(G.653), NZDSF(G.655), G657A & G657B
Current	5 Amp
Diameter	Cladding: 80-150 um Sheath: 100-1000 um
Display Size	4.3 inch
Display Type	LCD
Interface	USB 2.0 & PC Software Upgrade/Data Management
Length	Cleave: 5-16 mm
Life	Electrode: 5000 Splices
Model	FFS-9000
Operating Humidity	0 to 95% RH Non-Dew
Operating Temperature	10 to 60 deg C
Run Time	Splice: 7 sec (SM Fast)
Series	The Fiber Expert
Standards	ITU-T & IEC
Storage Capacity	10000 Records
Voltage	12 V
Country of origin	India
Manufacturer Details	B1-626, 2nd Floor, Janak Puri, New Delhi-110058, India
Packer Details	B1-626, 2nd Floor, Janak Puri, New Delhi-110058, India
Common/Generic Name	Fusion Splicer
Dimensions LxWxH	42x33x28 cm
Weight	8 kg

Show All Specifications

Product Details

Introducing the Star The Fiber Expert FFS-9000 5-16mm Black Fusion Splicer, a cutting-edge addition to our range of Other Office Supplies. With its sleek design and reliable performance, this fusion splicer is perfect for all your fiber optic needs. The brand name Star ensures top-notch quality, while the battery backup of 3 hours guarantees uninterrupted usage. Operating at temperatures ranging from 10 to 60 degrees Celsius and with an operating humidity of 0 to 95% RH Non-Dew, this splicer can withstand various environmental conditions. The LCD display offers a clear and user-friendly interface, and the additional details such as a Tensile Test of 2.25 N and a 2xCMOS camera make this splicer a must-have for any professional. Choose the model FFS-9000 for exceptional performance and reliability.
