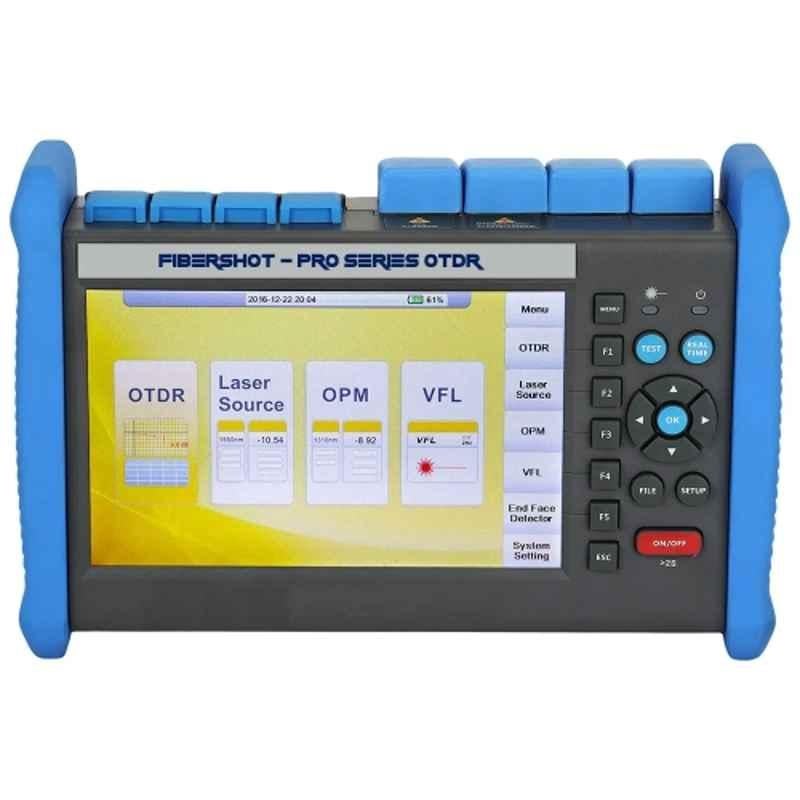

Star The Fiber Expert Pro 1310-1550nm 35/33dB Dual Mode Touch Screen Connector Fiber OTDR Tester, Pro-D35

Name: Star The Fiber Expert Pro 1310-1550nm 35/33dB Dual Mode Touch Screen Connector Fiber OTDR Tester, Pro-D35
Brand: Star
SKU: MSN75DQW783V92
Price: 148680 INR
Availability: OutOfStock

₹148,680 (Incl. of all taxes)

₹141,600 ₹7,080 GST

MRP ₹300,000 50% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

7 inch Anti Reflection LCD Screen.
Integrated Design, Smart & Rugged.
Support Multi-language Display & Input.
IP65 Protection Level & Outdoor Enhanced.

Show All Key Features

Product Specifications

Brand	Star
Accuracy	+/- 1 m
Additional Details	Power Saving: Backlight off: 1-99 min Disable Auto Shutdown: 1-99 min Disable Testing Distance: Single Mode: 100 m to 240 km, Multi Mode: 500 m to 40 km Sampling Resolution Minimum: 5 cm Sampling Point Maximum: 128000 points Distance Resolution: 0.01 m Reflectance Accuracy: Single Mode: +/- 2 dB, Multi Mode: +/- 4 dB IOR Setting: 1.40-1.70 & 0.0001 step Testing Modes: Visual Fault Locator: Visible Red Light for Fiber Identification & Troubleshooting, Light Source: Stabilized Light Source (CW, 270 Hz, 1 KHz, 2KHz Output) Field Microscope Probe Launching Mode: CW & 2 Hz Calibrated Wavelength: 850-1650 nm
Battery Type	Lithium
Battery Voltage	7.4 V DC
Charging Time	4 hr
Connector Type	FC & UPC
Display Size	7 inch
Display Type	TFT LCD
Dynamic Range	35/33 dB
Frequency	50-60 Hz
Internal Memory	4 GB
Model	Pro-D35
Operating Humidity	95%
Operating Temperature Range	-10 - +50 deg C
Operating Time	12 hr
Package Content	Main Unit, Power Adapter, Lithium Battery, Fc Adapter, Usb Cord, User Guide, CD Disk & Carrying Case, Optional: SC/ST/LC Adapter & Bare Fiber Adapter
Power	10 MW
Pulse Width	Single Mode: 3 ns to 20s, Multi Mode: 3 ns to 2s
Range	2 Km
Resolution	0.01 dB
Sensor Size	1/3 inch
Series	The Fiber Expert Pro
Storage Temperature Range	-20 - +75 deg C
Test Range	Type A: -65 - +5 dBm Standard, Type B: -40 - /+23 dBm
Voltage	10 V DC & 100-240 V AC
Wavelength Range	1310-1550 Nm
Country of origin	India
Manufacturer Details	Star Infomatic Pvt Ltd., B1-626, 2nd Floor, Janak Puri, New Delhi- 110058, India
Packer Details	Star Infomatic Pvt Ltd., B1-626, 2nd Floor, Janak Puri, New Delhi- 110058, India
Common/Generic Name	Optical Time Domain Reflectometer
Dimensions LxWxH	28x20x16 cm
Weight	2 kg

Show All Specifications

Product Details

Introducing the Star The Fiber Expert Pro 850-1650nm 35/33dB Dual Mode Touch Screen Connector Fiber OTDR Tester, Pro-35 OTDR from our brand, Star. This cutting-edge fiber OTDR tester is designed for professionals in the industry, guaranteeing optimal performance and accuracy. With a wide operating humidity range of 95%, it can withstand various environmental conditions. The TFT LCD display provides clear and vivid visuals, ensuring easy navigation and precise readings. Additionally, this device features a power-saving function, allowing you to set the backlight to turn off after a specific duration, ranging from 1 to 99 minutes. The Pro-35 OTDR model offers a maximum range of 2 kilometers, making it suitable for a wide range of applications. Powered by a reliable lithium battery, this OTDR tester can deliver consistent results for extended periods. As part of our prestigious The Fiber Expert Pro series, it represents our commitment to providing innovative and high-quality solutions in the fiber optics sector. Explore the possibilities with the Star The Fiber Expert Pro 850-1650nm 35/33dB Dual Mode Touch Screen Connector Fiber OTDR Tester, Pro-35 OTDR in the Other Office Supplies category to fulfill your professional needs.
