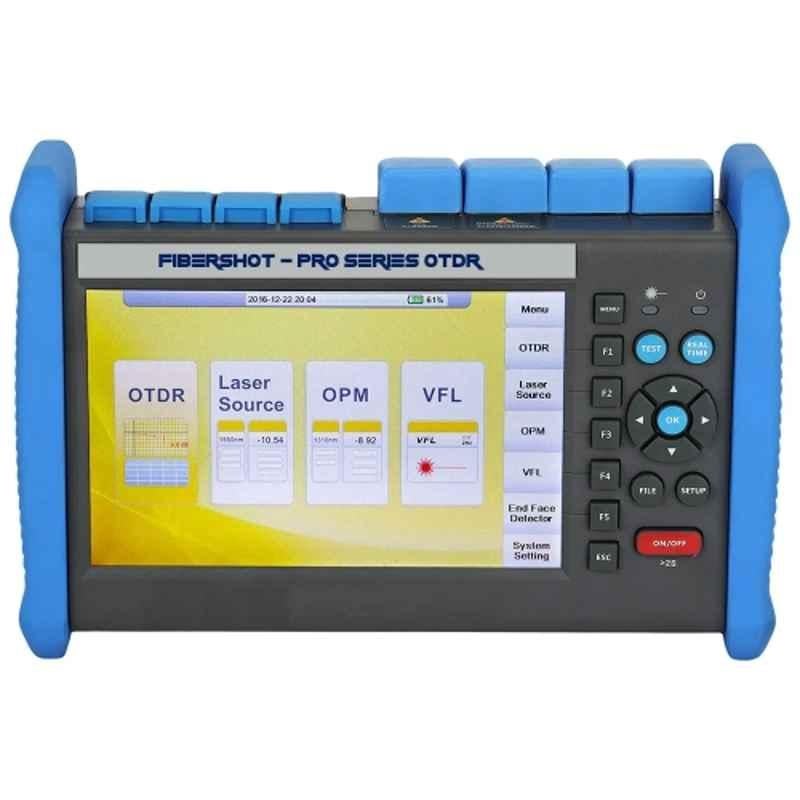

Star The Fiber Expert Pro 1310-1550nm 40/38dB Dual Mode Touch Screen Connector Fiber OTDR Tester, Pro-D40

Name: Star The Fiber Expert Pro 1310-1550nm 40/38dB Dual Mode Touch Screen Connector Fiber OTDR Tester, Pro-D40
Brand: Star
SKU: MSN8580OME1L92
Price: 185850 INR
Availability: OutOfStock

₹185,850 (Incl. of all taxes)

₹177,000 ₹8,850 GST

MRP ₹350,000 46% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

7 inch Anti Reflection LCD Screen.
Integrated Design, Smart & Rugged.
Support Multi-language Display & Input.
IP65 Protection Level & Outdoor Enhanced.

Show All Key Features

Product Specifications

Brand	Star
Accuracy	+/- 1 m
Additional Details	Power Saving: Backlight off: 1-99 min Disable Auto Shutdown: 1-99 min Disable Internal memory: 4 GB Testing Distance: Single Mode: 100 m to 240 km, Multi Mode: 500 m to 40 km Sampling Resolution Minimum: 5 cm Sampling Point Maximum: 128000 points Distance Resolution: 0.01 m Reflectance Accuracy: Single Mode: +/-2 dB, Multi Mode: +/-4 dB IOR Setting: 1.40~1.70 & 0.0001 step Testing Modes: Visual Fault Locator: Visible Red Light for Fiber Identification & Troubleshooting, Light Source: Stabilized Light Source (CW, 270 Hz, 1 KHz, 2KHz Output) Field Microscope Probe Launching Mode: CW & 2 Hz Calibrated Wavelength: 850-1650 nm
Battery Type	Lithium
Battery Voltage	7.4 V DC
Charging Time	4 hr
Connector Type	FC & UPC
Display Size	7 inch
Display Type	TFT LCD
Dynamic Range	40/38 dB
Frequency	50-60 Hz
Internal Memory	4 GB
Model	Pro-D40
Operating Humidity	95%
Operating Temperature Range	-10 - +50 deg C
Operating Time	12 hr
Package Content	Main Unit, Power Adapter, Lithium Battery, Fc Adapter, Usb Cord, User Guide, CD Disk & Carrying Case, Optional: SC/ST/LC Adapter & Bare Fiber Adapter
Power	10 MW
Pulse Width	Single Mode: 3 ns to 20s, Multi Mode: 3 ns to 2s
Range	2 Km
Resolution	0.01 dB
Sensor Size	1/3 inch
Series	The Fiber Expert Pro
Storage Temperature Range	-20 - +75 deg C
Test Range	Type A: -65- +5 dBm Standard, Type B: -40 -/+23 dBm
Voltage	10 V DC & 100-240 V AC
Wavelength Range	1310-1550 Nm
Country of origin	India
Manufacturer Details	Star Infomatic Pvt Ltd., B1-626, 2nd Floor, Janak Puri, New Delhi- 110058, India
Packer Details	Star Infomatic Pvt Ltd., B1-626, 2nd Floor, Janak Puri, New Delhi- 110058, India
Common/Generic Name	Optical Time Domain Reflectometer
Dimensions LxWxH	28x20x16 cm
Weight	2 kg

Show All Specifications

Product Details

Introducing the Star The Fiber Expert Pro 850-1650nm 40/38dB Dual Mode Touch Screen Connector Fiber OTDR Tester, Pro-40 OTDR. This high-performance tool falls under the category of Other Office Supplies, perfect for meeting your fiber testing needs. Designed by the reputable brand Star, you can trust in its reliability and accuracy.

With an impressive operating humidity of 95%, this OTDR tester is well-suited for various testing environments. Equipped with a TFT LCD display, it guarantees clear and detailed readings. Thanks to its power-saving feature, you can prolong battery life by adjusting the backlight to turn off between 1 to 99 minutes of inactivity.

The Star The Fiber Expert Pro-40 OTDR offers a range of up to 2 Km, ensuring efficient testing capabilities for your fiber optic connections. Powered by a long-lasting lithium battery, this OTDR tester is ready for extended usage. Part of the acclaimed The Fiber Expert Pro series, you can expect top-notch quality and performance.

In conclusion, the Star The Fiber Expert Pro 850-1650nm 40/38dB Dual Mode Touch Screen Connector Fiber OTDR Tester, Pro-40 OTDR, is the ideal solution for all your fiber testing requirements. Its advanced features, including the TFT LCD display and power-saving option, make it a standout tool in the field. Trust in the reliable brand Star and enjoy the convenience and efficiency of this OTDR tester.
