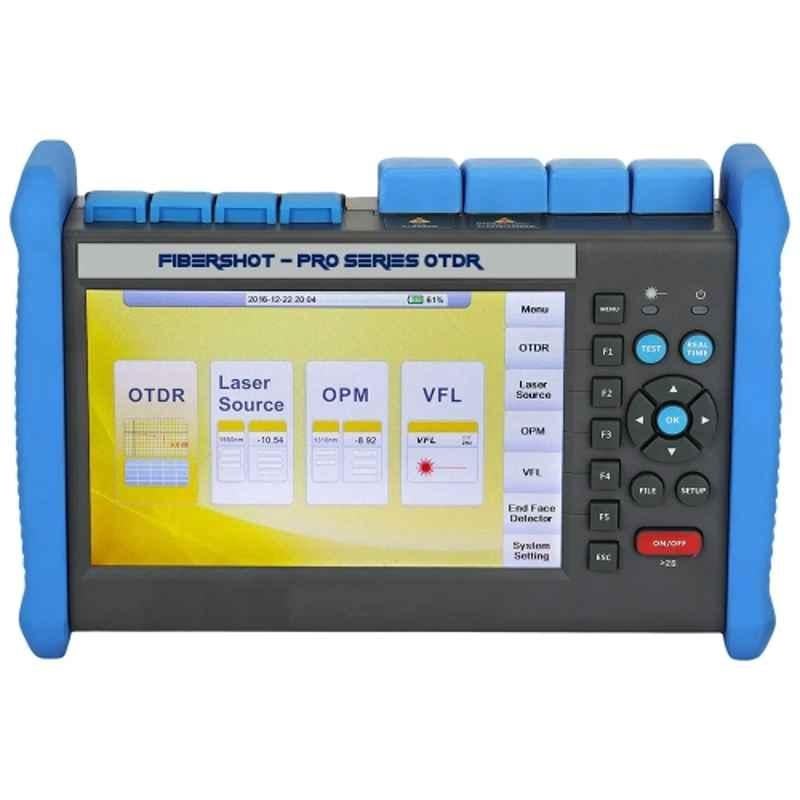

Star The Fiber Expert Pro 1310-1550nm 45/43dB Dual Mode Touch Screen Connector Fiber OTDR Tester, Pro-D45

Name: Star The Fiber Expert Pro 1310-1550nm 45/43dB Dual Mode Touch Screen Connector Fiber OTDR Tester, Pro-D45
Brand: Star
SKU: MSNZ526E3Z8W9X
Price: 185850 INR
Availability: OutOfStock

₹185,850 (Incl. of all taxes)

₹177,000 ₹8,850 GST

MRP ₹350,000 46% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

7 inch Anti Reflection LCD Screen.
Integrated Design, Smart & Rugged.
Support Multi-language Display & Input.
IP65 Protection Level & Outdoor Enhanced.

Show All Key Features

Product Specifications

Brand	Star
Accuracy	+/- 1 m
Additional Details	Power Saving: Backlight off: 1-99 min Disable Auto Shutdown: 1-99 min Disable Testing Distance: Single Mode: 100 m to 240 km, Multi Mode: 500 m to 40 km Sampling Resolution Minimum: 5 cm Sampling Point Maximum: 128000 points Distance Resolution: 0.01 m Reflectance Accuracy: Single Mode: +/- 2 dB, Multi Mode: +/- 4 dB IOR Setting: 1.40 - 1.70 & 0.0001 step Testing Modes: Visual Fault Locator: Visible Red Light for Fiber Identification & Troubleshooting, Light Source: Stabilized Light Source (CW, 270 Hz, 1 KHz, 2KHz Output) Field Microscope Probe Launching Mode: CW & 2 Hz Calibrated Wavelength: 850-1650 nm
Battery Type	Lithium
Battery Voltage	7.4 V DC
Charging Time	4 hr
Connector Type	FC & UPC
Display Size	7 inch
Display Type	TFT LCD
Dynamic Range	45/43 dB
Frequency	50-60 Hz
Internal Memory	4 GB
Model	Pro-D45
Operating Humidity	95%
Operating Temperature Range	-10 - +50 deg C
Operating Time	12 hr
Package Content	Main Unit, Power Adapter, Lithium Battery, Fc Adapter, Usb Cord, User Guide, CD Disk & Carrying Case, Optional: SC/ST/LC Adapter & Bare Fiber Adapter
Power	10 MW
Pulse Width	Single Mode: 3 ns to 20s, Multi Mode: 3 ns to 2s
Range	2 Km
Resolution	0.01 dB
Sensor Size	1/3 inch
Series	The Fiber Expert Pro
Storage Temperature Range	-20 - +75 deg C
Test Range	Type A: -65 - +5 dBm Standard, Type B: -40 -/+23 dBm
Voltage	10 V DC & 100-240 V AC
Wavelength Range	1310-1550 Nm
Country of origin	India
Manufacturer Details	Star Infomatic Pvt Ltd., B1-626, 2nd Floor, Janak Puri, New Delhi- 110058, India
Packer Details	Star Infomatic Pvt Ltd., B1-626, 2nd Floor, Janak Puri, New Delhi- 110058, India
Common/Generic Name	Optical Time Domain Reflectometer
Dimensions LxWxH	28x20x16 cm
Weight	2 kg

Show All Specifications

Product Details

Introducing the Star The Fiber Expert Pro-45 OTDR, a top-notch fiber OTDR tester specifically designed for professionals. This dual-mode touch screen connector boasts an impressive 45/43dB power, catering to a wide range of fiber testing needs. With its sleek and user-friendly TFT LCD display, navigating through the various functions and settings is effortless.

Operating with an impressive humidity tolerance of 95%, this OTDR tester does not shy away from challenging conditions. Its power-saving feature allows for flexibility, with the option to set the backlight to turn off after a specified period ranging from 1 to 99 minutes – a valuable feature for those seeking to conserve battery life.

The model Pro-45 OTDR offers a remarkable testing range of 2 Km, ensuring precise and reliable results. Powered by a lithium battery, this tester guarantees longevity and efficiency during lengthy testing sessions. Part of the renowned series, The Fiber Expert Pro, this OTDR tester effortlessly showcases the cutting-edge technology and expertise associated with the Star brand.

In summary, the Star The Fiber Expert Pro-45 OTDR is the perfect solution for professionals in need of a reliable and efficient fiber OTDR tester. With its dual-mode touch screen connector, impressive power, sleek TFT LCD display, and additional features such as power-saving and a lithium battery, this tester offers an unparalleled testing experience within the Other Office Supplies category.
