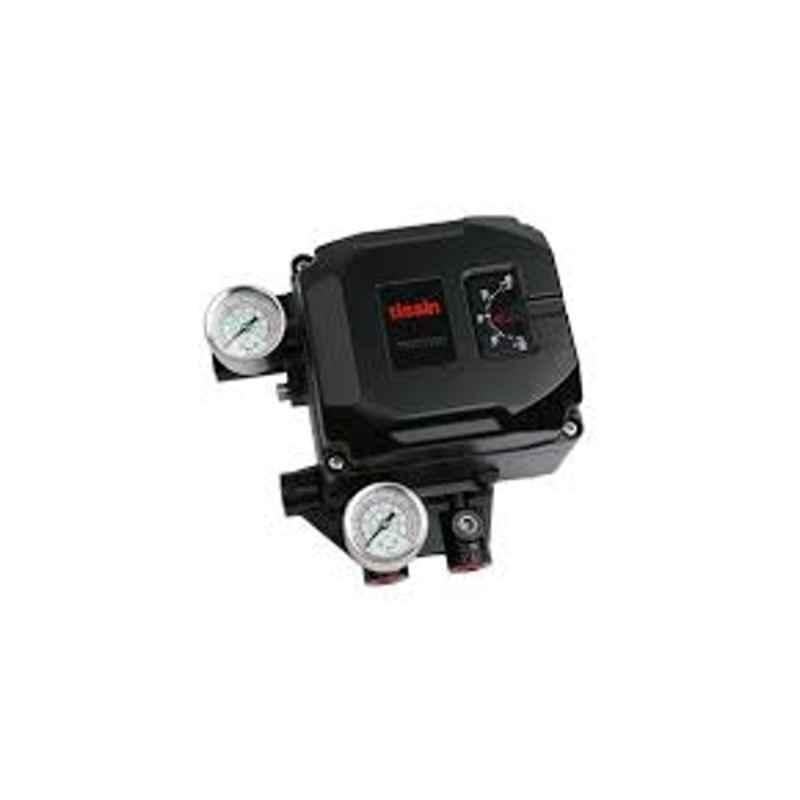

Tissin TS610 Electro Pneumatic Positioner

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand	Tissin
Additional Details	Supply Pressure: 0.14-0.7 mPa Conduit: G(PF) 1/2 or NPT 1/2
Air Consumption	Below 2.5 lpm (Sup.=0.14 mPa) & Over 80 lpm (Sup.=0.14 mpa)
Ambient Temperature	-20 to 70 deg C
Connection	Air: PT1/4, NPT1/4 & G1/4 Gauge: NPT1/8
Hysteresis	±1% F.S.
Input Signal	0.02-0.1 mPa
Linearity	±1% F.S.
Material	Aluminum Die Cast
Model	TS610
Notes	Images are for Reference Purpose Only
Protection Class	IP66
Repeatability	±0.5% F.S.
Sensitivity	±0.2% F.S.
Stroke	Linear: 10-150 mm Rotary: 0-90 deg
Country of origin	India
Manufacturer Details	Tissin Co. Ltd.
Packer Details	Supreme Technolgy
Common/Generic Name	Electro Pneumatic Positioner
Dimensions LxWxH	28x20x22 cm
Weight	3.5 kg

Show All Specifications

Product Details

Enhance your pneumatic control valve system with the Tissin TS610 Electro Pneumatic Positioner. This high-quality positioner, belonging to the renowned Tissin brand, comes with various connection air options including PT1/4, NPT1/4 & G1/4'. Experience precise control and reliable performance with the TS610 model, boasting a supply pressure of 0.14-0.7 mPa and repeatability of ±0.5% F.S. The positioner operates within an ambient temperature range of -20 to 70 deg C and accepts input signals ranging from 0.02 to 0.1 mPa. Please note that images are for reference purposes only. Upgrade your control valve system with the Tissin TS610 today.
