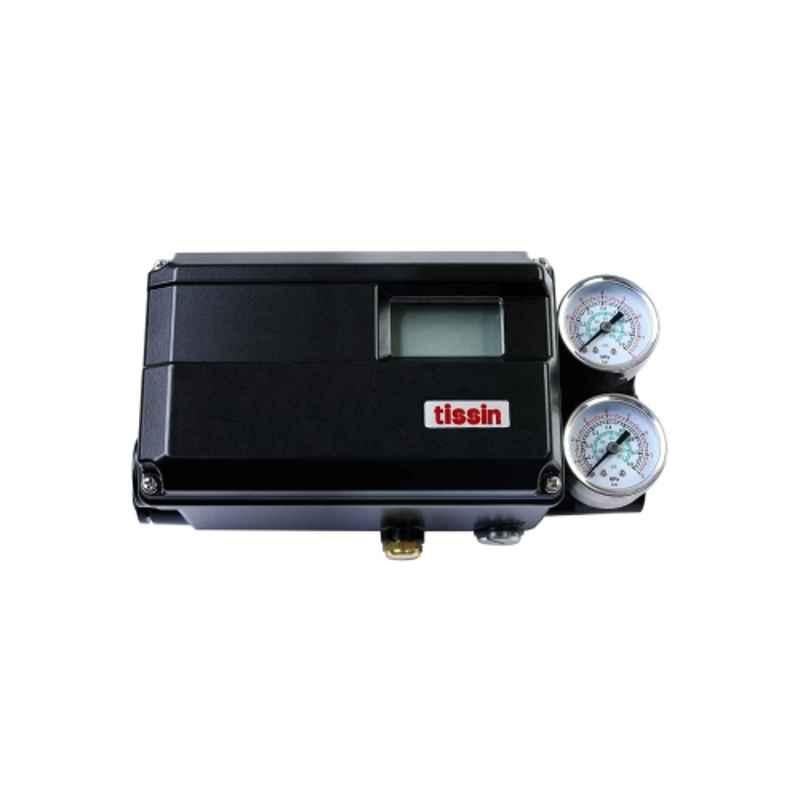

Tissin TS700 Smart Valve Positioner

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand	Tissin
Additional Details	Supply Pressure: 0.14-0.7 mPa Conduit: G1/2, NPT1/2 & M20
Air Consumption	Below 0.01 lpm (Sup.=0.14 mPa) & Over 75 lpm (Sup.=0.14 mpa)
Ambient Temperature	-25 to 80 deg C & Low: -40 to 80 deg C
Connection	Air: PT1/4, NPT1/4 & G1/4 Gauge: PT1/8 & NPT1/8
Hysteresis	±0.5% F.S.
Impedance	500 Ω
Input Signal	4-20 mA DC
Linearity	±0.5% F.S.
Material	Aluminum Die Cast
Model	TS700
Notes	Images are for Reference Purpose Only
Protection Class	IP66
Repeatability	±0.3% F.S.
Sensitivity	±0.2% F.S.
Stroke	Linear: 10-150 mm Rotary: 0-90 deg
Country of origin	India
Manufacturer Details	Tissin Co. Ltd.
Packer Details	Supreme Technolgy
Common/Generic Name	Smart Valve Positioner
Dimensions LxWxH	28x20x22 cm
Weight	3.5 kg

Show All Specifications

Product Details

Enhance the performance of your pneumatic actuators with the Tissin TS700 Smart Valve Positioner. Designed with precision in mind, this state-of-the-art product features a connection air of PT1/4, NPT1/4 & G1/4, ensuring seamless integration into your existing system. With a supply pressure range of 0.14-0.7 mPa and repeatability of ±0.3% F.S., the TS700 model delivers unparalleled accuracy and efficiency. Suitable for a wide range of applications, this valve positioner operates at ambient temperatures from -25 to 80 deg C, with a low temperature range of -40 to 80 deg C. The input signal of 4-20 mA DC guarantees smooth and reliable performance. Trust Tissin for quality and reliability in every application. Please note, images are for reference purposes only.

Browse through the extensive list of Pneumatic Actuators at Moglix. Shop online for other Tissin Pneumatic Actuators. available at Moglix in the lowest price range.
