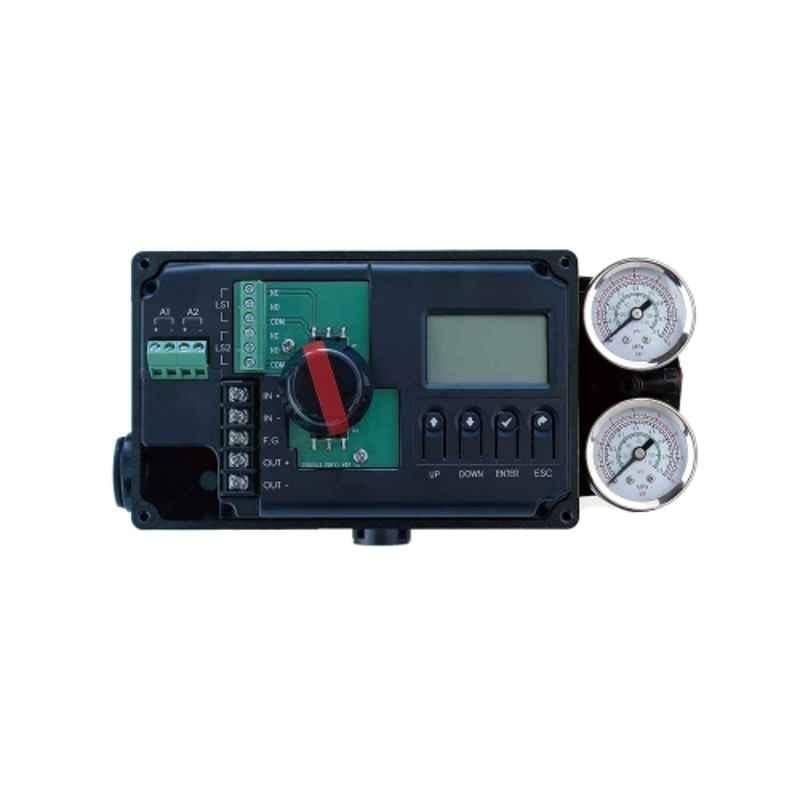

Tissin TS800R Smart Valve Positioner

AVAILABLE ON REQUEST

About This Product

Key Features

Strong Vibration Resistance & Impact Resistance.
PST & Alarm Function, Quick & Easy Calibration & Auto/Manual Switch Included.
LCD & 4 Button Local Control, Modularization of the Internal Parts.
Improvement of Valve Control Speed by Applying Large Flow Pilot Valve.

Show All Key Features

Product Specifications

Brand	Tissin
Additional Details	Supply Pressure: 0.14-0.7 mPa Conduit: G(PF)1/2 & NPT1/2
Air Consumption	Below 2.3 lpm (Sup.=0.14 mPa) & Over 100 lpm (Sup.=0.14 mpa)
Ambient Temperature	-30 to 85 deg C & Low: -40 to 85 deg C
Connection	Air: PT1/4 & NPT1/4 Gauge: PT1/8 & NPT1/8
Hysteresis	±0.5% F.S.
Impedance	500 Ω
Input Signal	4-20 mA DC
Linearity	±0.5% F.S.
Material	Aluminum Die Cast
Model	TS800R
Notes	Images are for Reference Purpose Only
Protection Class	IP66
Repeatability	±0.3% F.S.
Sensitivity	±0.2% F.S.
Series	TS800
Stroke	0-90 deg
Country of origin	India
Manufacturer Details	Tissin Co. Ltd.
Packer Details	Supreme Technolgy
Common/Generic Name	Smart Valve Positioner
Dimensions LxWxH	28x20x22 cm
Weight	3.5 kg

Show All Specifications

Product Details

Introducing the Tissin TS800R Smart Valve Positioner, a top-of-the-line product in the Pneumatic Actuators category. With a connection air of PT1/4 & NPT1/4, this smart valve positioner is designed to provide accurate and reliable performance. The supply pressure range from 0.14-0.7 mPa ensures smooth operation, while the model TS800R offers repeatability of ±0.3% F.S. This positioner can operate in ambient temperatures ranging from -30 to 85 deg C, with a low range of -40 to 85 deg C. The input signal of 4-20 mA DC allows for easy integration into existing systems. Trust Tissin for top-quality products in valve control technology. Please note that images are for reference purposes only.
