What is the field of view of the camera?

The camera has a 4mm lens, providing a wide field of view that allows you to capture a larger area

Home
Security
CCTV Cameras
Network IP Cameras

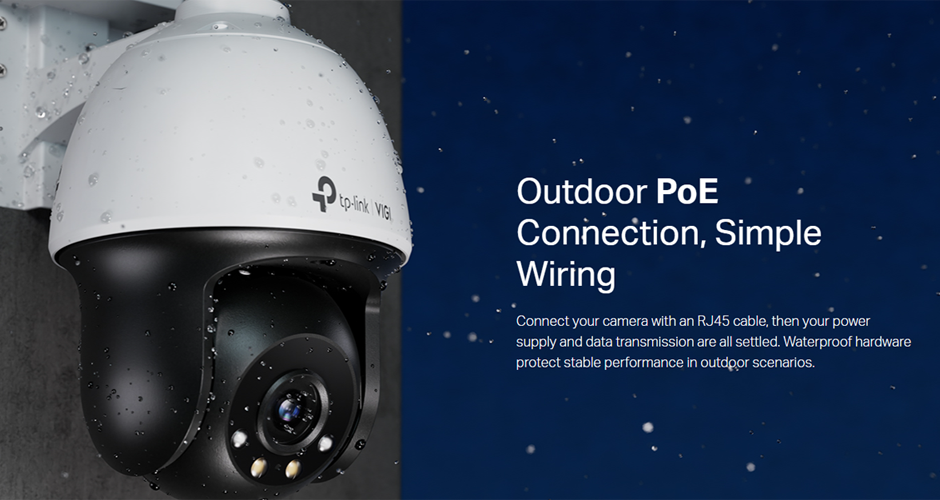

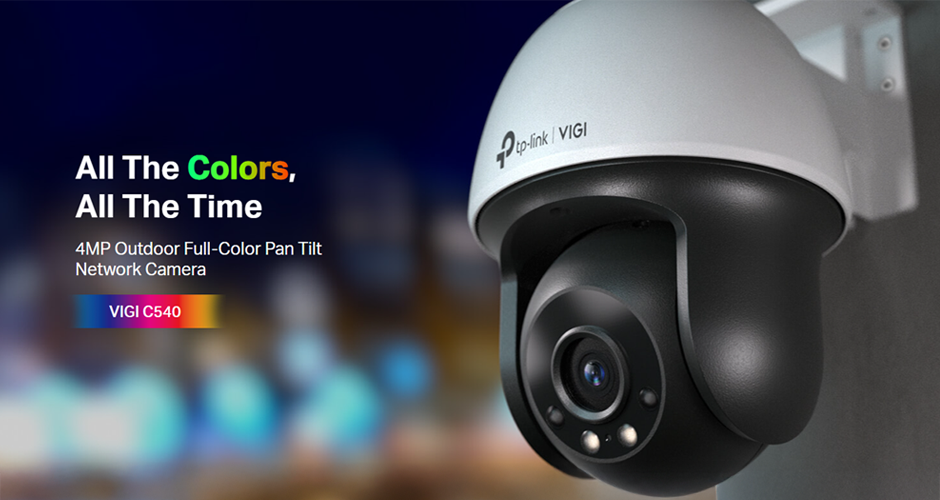

TP-Link VIGI C540 4MP 4mm Outdoor Full-Colour Pan Tilt Network Camera

TP-Link VIGI C540 4MP Outdoor Network IP Camera with High Definition Full-Colour PT , NVR Enable, 24h Full-Colour, Smart Detect & IP66 Waterproof

Hover to Zoom

TP-Link VIGI C540 4MP Outdoor Network IP Camera with High Definition Full-Colour PT , NVR Enable, 24h Full-Colour, Smart Detect & IP66 Waterproof

Name: TP-Link VIGI C540 4MP Outdoor Network IP Camera with High Definition Full-Colour PT , NVR Enable, 24h Full-Colour, Smart Detect & IP66 Waterproof
Brand: TP-Link
SKU: MSN2KM1L74Y89V
Price: 6569 INR
Availability: OutOfStock
Rating: 4.64 (25 reviews)

4.6

(25 Reviews)

₹6,569 (Incl. of all taxes)

₹5,566 ₹1,003 GST

MRP ₹7,999 17% OFF

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

H.265+.
VIGI App.
Waterproof.
PoE/12V DC.
24h Full-Color.
Smart Detection.
Powerful Pan Tilt.
4MP High Definition.

Show All Key Features

Product Specifications

Brand	TP-Link
Additional Details	Day & Night Mechanism: IR Cut Filter Pan & Tilt Range: Pan: 0 deg to 350 deg & Tilt: 0 deg to 120 deg WDR: DWDR & Simultaneous Live View: 3 Main Streams & 3 Sub-Streams Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR & White Balance Adjustable by Client Software Smart Event: Area Intrusion Detection, Line-Crossing Detection & Human Detection Basic Event: Motion Detection, Camera Tampering Detection & Exception Illegal Login Trigger Notification: ONVIF & HTTPS
Aperture	F1.6
Audio Input	Built-in Microphone
Audio Output	Built-in Speaker
Certification	CE, RCM, BSMI, VCCI, RoHS, NTRA & KC
Digital Zoom	Yes
Frame rate	1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps & 30 fps
IR Range	30 m
Image Enhancement	BLC/3D DNR & Prevent Overexposure to Infrared Light
Image Sensor	1/3 inch Progressive Scan CMOS
Lens Mount	M12
Lens Size	4 mm
Lens Type	Fixed Focal Lens
Material	Plastic
Mega Pixel	4 MP
Minimum Illumination	0 Lux with IR & White Light
Model	VIGI C540
Network interface	1xRJ45 10/100M Self-Adaptive Ethernet Port
Noise Reduction Rating	3D DNR
Operating Temperature	-30 to 60 deg C
Package Contents	VIGI Network Camera, Quick Start Guide, Waterproof Cable Attachments & Mounting Accessories (Screws, Drywall Anchors, Hex Key)
Power Consumption	14 W
Power Supply	12 V DC
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP & SSL/TLS
Resolution	640x480p, 352x288p & 320x240p
Security	Password Protection, HTTPS Encryption, IP Address Filter & Digest Authentication
Size	Power Plug: 5.5 mm
Storage	Built-In Memory Card Slot, Support MicroSD Card & Up to 256 GB
Video Bit Rate	Main Stream: 256 kbps to 4 Mbps & Sub-Stream: 64-512 Kbps
Video Compression	Sub-Stream: H.265 & H.264 Main Stream: H.265+/H.265/H.264+ & H.264
Video Streaming	Main Stream & Sub-Stream
View Angle	Horizontal FOV: 79 deg, Vertical FOV: 43 deg & Diagonal FOV: 93 deg
Weather Proof rating	IP66
Country of origin	China
Manufacturer Details	South Building, No.5 Keyuan Road, Central Zone, Science & Technology Park, Nanshan, Shenzhen, P. R. China, Postcode: 518057
Packer Details	South Building, No.5 Keyuan Road, Central Zone, Science & Technology Park, Nanshan, Shenzhen, P. R. China, Postcode: 518057
Importer Details	TP-Link India Pvt Ltd ,207-A , Modi Tower ,98 Nehru Place ,New Delhi-110019
Common/Generic Name	CCTV Camera
Dimensions LxWxH	12x17.2x19.8 cm
Weight	0.195 kg

Show All Specifications

Product Details

Experience Advanced Outdoor Surveillance with the Tp-Link Vigi C540 4Mp Pan Tilt Network Camera. with Its 4mm Lens & Full-Color Capability, it Captures Crisp 4Mp Resolution Footage, Even in Low Light. the Pan & Tilt Function Ensures Comprehensive Coverage, While Its Durable Build is Tailored for Outdoor Use. Enjoy Real-Time Monitoring, Motion Detection, & Two-Way Audio Communication. Effortless Setup & Compatibility with Tp-Link's Security Ecosystem Make this Camera A Reliable Choice for Enhancing Your Outdoor Security.
