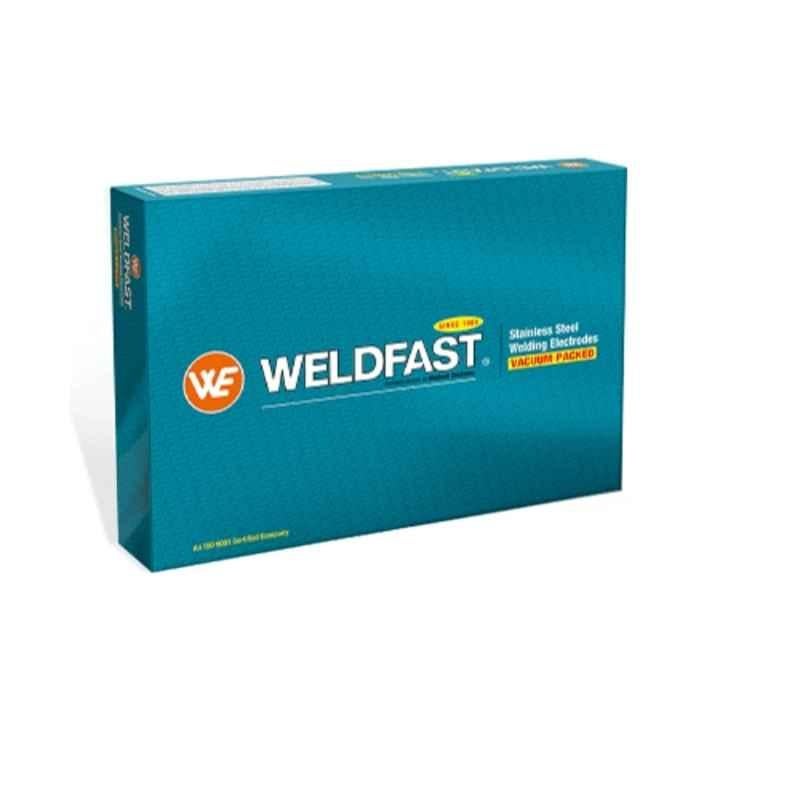

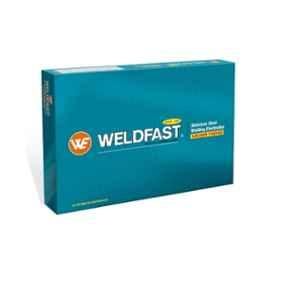

Weldfast 316 L 8kg 2.5x350mm Stainless Steel Electrode Box

Name: Weldfast 316 L 8kg 2.5x350mm Stainless Steel Electrode Box
Brand: Weldfast
SKU: MSNM9XYLQ46DKJ
Price: 4589 INR
Availability: OutOfStock

₹4,589 (Incl. of all taxes)

₹3,889 + ₹700 GST

MRP ₹5,120 10% OFF

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

A Rutile Basic Coated all Position Electrode Having Extra Low Carbon with Weld Deposit of 18cr/13ni/2.5mo Stainless Steel.
Resistant to Stress Corrosion Cracking, Chemical Corrosion Cracking at Temperature Up to 850 deg C & the Weld Metal Deposit has Excellent Creep Strength & is of Radiographic Quality.

Product Specifications

Brand	Weldfast
Current Range	40-70 Amp
Electrode Diameter	2.5 mm
Electrode Length	350 mm
Classification	E 316L-16
Elongation	30 % (min)
Material	Stainless Steel
Package Contents	1 Box Contains 4 Packet of Electrodes & 1 Packet Contains 2kg of Electrodes
Redrying Temperature	300 deg C for 1 hr
Series	316 L
Standards	IS 5206 / E19.12.2LR26 AWS A/SFA-5.4
Additional Details	Mechanical Properties: UTS 490 N/mm² Weld Analysis: C: 0.04 %, Mn: 0.60-1.20 %, Si: 1 %, Cr: 17-20 %, Ni: 11-14 %, Mo: 2-3 %, S: 0.03% & P: 0.04%
Weight	8 kg
Country of origin	India
Manufacturer Details	Weldfast Electrodes Pvt. Ltd. D-57, 58 & 59 Hingna Industrial Area, M.I.D.C. Nagpur - 440 016 (M.S.) INDIA
Packer Details	Weldfast Electrodes Pvt. Ltd. D-57, 58 & 59 Hingna Industrial Area, M.I.D.C. Nagpur - 440 016 (M.S.) INDIA
Common/Generic Name	Electrode
Dimensions LxWxH	22x15x7 cm
Weight	8 kg

Show All Specifications

Product Details

Weldfast 316 L 8kg 2.5x350mm Stainless Steel Electrode Box is a premium quality product from Weldfast . Moglix is a well-known ecommerce platform for qualitative range of Electrodes. All Weldfast 316 L 8kg 2.5x350mm Stainless Steel Electrode Box are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Weldfast 316 L 8kg 2.5x350mm Stainless Steel Electrode Box, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Weldfast products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Weldfast Electrodes .
