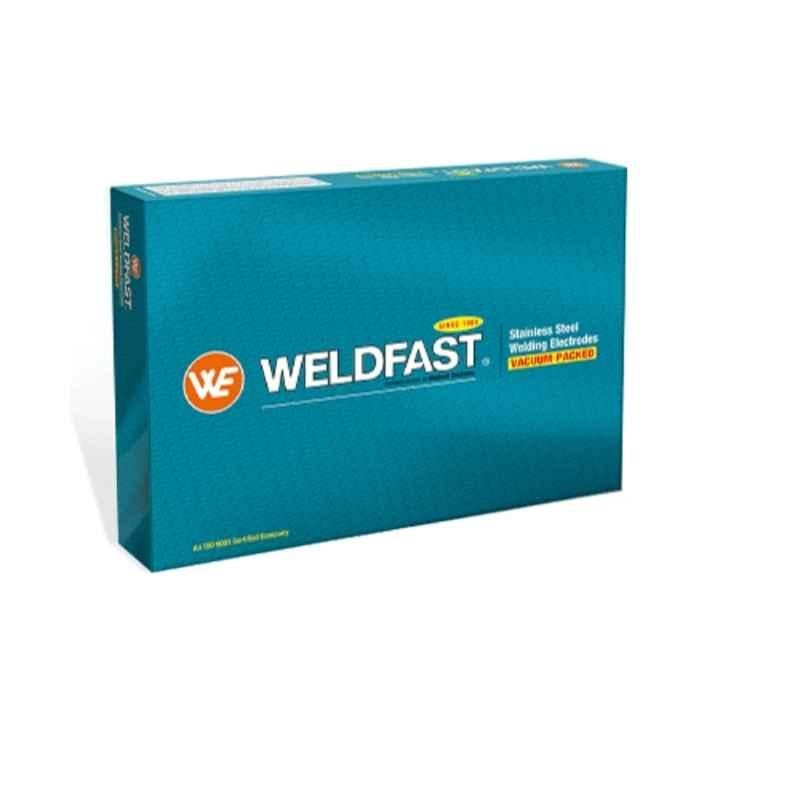

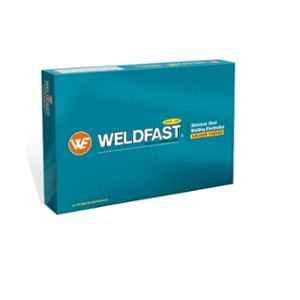

Weldfast 410Ni-Mo SPL 8kg 3.15x350mm Stainless Steel Electrode Box

Name: Weldfast 410Ni-Mo SPL 8kg 3.15x350mm Stainless Steel Electrode Box
Brand: Weldfast
SKU: MSNNKQG0DR8Z9X
Price: 4195 INR
Availability: OutOfStock

₹4,195 (Incl. of all taxes)

₹3,555 ₹640 GST

MRP ₹4,680 10% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Basic Coated all Position Electrode.
It Gives Smooth Arc, Easy Removal of Slag & Uniform Weld Bead & the Weld Deposit is of Radiographic Quality.

Product Specifications

Brand	Weldfast
Current Range	60-90 Amp
Electrode Diameter	3.15 mm
Electrode Length	350 mm
Classification	E 410NiMo-15
Elongation	14 % (min)
Impact Energy	45-50 J
Material	Stainless Steel
Package Contents	1 Box Contains 4 Packet of Electrodes & 1 Packet Contains 2kg of Electrodes
Redrying Temperature	300 deg C for 1 hr
Series	410Ni-Mo (SPL)
Standards	AWS A/SFA - 5.4
Additional Details	Mechanical Properties: UTS 790 N/mm² & YS: 590 N/mm² Weld Analysis: C: 0.05 %, Mn: 0.60-0.90 %, Si: 0.30-0.60 %, Cr: 11.5-14.0 %, Mo: 0.40-0.60 %, Ni: 3.80-5.50 %, S: 0.03 % & P: 0.03 % Impact Energy: CVN: 45 J at 0 deg C & 50 J at -23 deg C
Weight	8 kg
Country of origin	India
Manufacturer Details	Weldfast Electrodes Pvt. Ltd. D-57, 58 & 59 Hingna Industrial Area, M.I.D.C. Nagpur - 440 016 (M.S.) INDIA
Packer Details	Weldfast Electrodes Pvt. Ltd. D-57, 58 & 59 Hingna Industrial Area, M.I.D.C. Nagpur - 440 016 (M.S.) INDIA
Common/Generic Name	Electrode
Dimensions LxWxH	22x15x7 cm
Weight	8 kg

Show All Specifications

Product Details

Weldfast 410Ni-Mo SPL 8kg 3.15x350mm Stainless Steel Electrode Box is a premium quality product from Weldfast . Moglix is a well-known ecommerce platform for qualitative range of Electrodes. All Weldfast 410Ni-Mo SPL 8kg 3.15x350mm Stainless Steel Electrode Box are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Weldfast 410Ni-Mo SPL 8kg 3.15x350mm Stainless Steel Electrode Box, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Weldfast products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Weldfast Electrodes .
