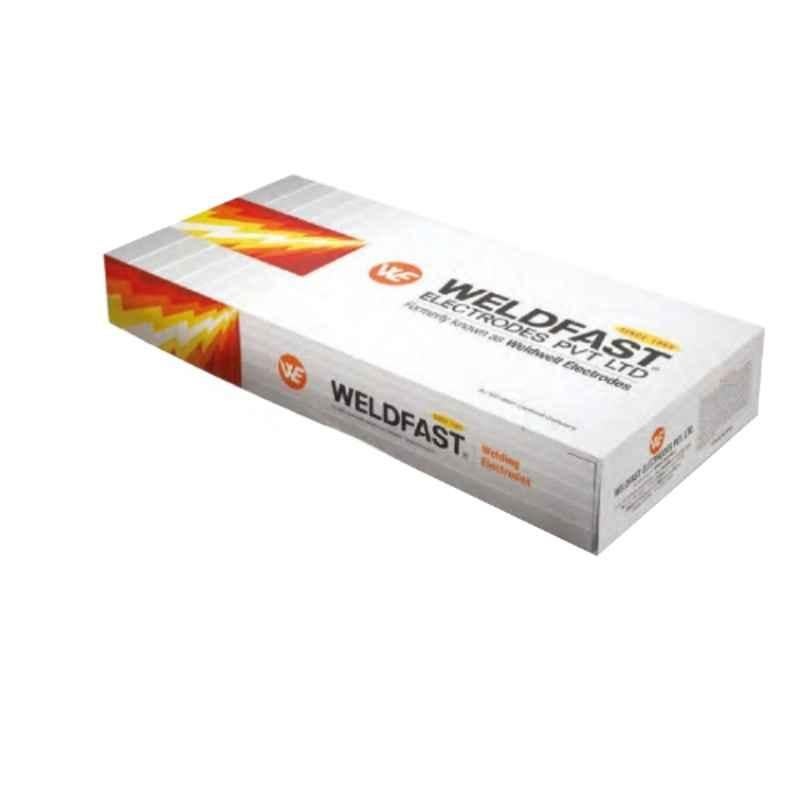

Weldfast LH18-1 360 Pcs 2.50x350mm Low Hydrogen Electrode Box

Name: Weldfast LH18-1 360 Pcs 2.50x350mm Low Hydrogen Electrode Box
Brand: Weldfast
SKU: MSNZ526302MW9X
Price: 1233 INR
Availability: OutOfStock

₹1,233 (Incl. of all taxes)

₹1,045 ₹188 GST

MRP ₹1,376 10% OFF

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

A Basic Coated Low Hydrogen all Position Welding Electrode with Deposition Efficiency of Approximately 110%.
The Weld Metal has Excellent Toughness Even at-50 deg C & Satisfies X-Ray, Ultrasonic & Radiographic Requirements, It Gives Excellent Arc Stability, Smooth Arc & Is Very Easy in Slag Removal, Used in Welding Boiler & Pressure Vessels, Penstocks, Storage Tanks, Bridges, Heavy Structures Subjected to Dynamic Loading & Under Restrained Conditions.

Product Specifications

Brand	Weldfast
Current Range	50-80 Amp
Electrode Diameter	2.50 mm
Electrode Length	350 mm
Classification	E7018-1
Elongation	24-28 %
Impact Energy	50-65 J
Package Contents	1 Box Contains 8 Packet of Electrodes & 1 Packet Contains 90 Pcs of Electrodes
Redrying Temperature	300 deg C for 1 hr
Series	LH18-1
Standards	IS 814 / EB 5526H3JX DIN 1913 / E 5155B1029 AWS A/ SFA - 5.1
Additional Details	Mechanical Properties: UTS 550-610 N/mm² & YS: 440-530N/mm² Weld Analysis: C: 0.10%, Mn: 1.60%, Si: 0.75%, S: 0.03% & P: 0.03% Impact Energy: CVN: 50-65 J at -45 deg C
Country of origin	India
Manufacturer Details	Weldfast Electrodes Pvt. Ltd. D-57, 58 & 59 Hingna Industrial Area, M.I.D.C. Nagpur - 440 016 (M.S.) INDIA
Packer Details	Weldfast Electrodes Pvt. Ltd. D-57, 58 & 59 Hingna Industrial Area, M.I.D.C. Nagpur - 440 016 (M.S.) INDIA
Common/Generic Name	Electrode
Dimensions LxWxH	22x15x7 cm
Weight	23 kg

Show All Specifications

Product Details

Weldfast LH18-1 360 Pcs 2.50x350mm Low Hydrogen Electrode Box is a premium quality product from Weldfast . Moglix is a well-known ecommerce platform for qualitative range of Electrodes. All Weldfast LH18-1 360 Pcs 2.50x350mm Low Hydrogen Electrode Box are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Weldfast LH18-1 360 Pcs 2.50x350mm Low Hydrogen Electrode Box, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Weldfast products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Weldfast Electrodes .
