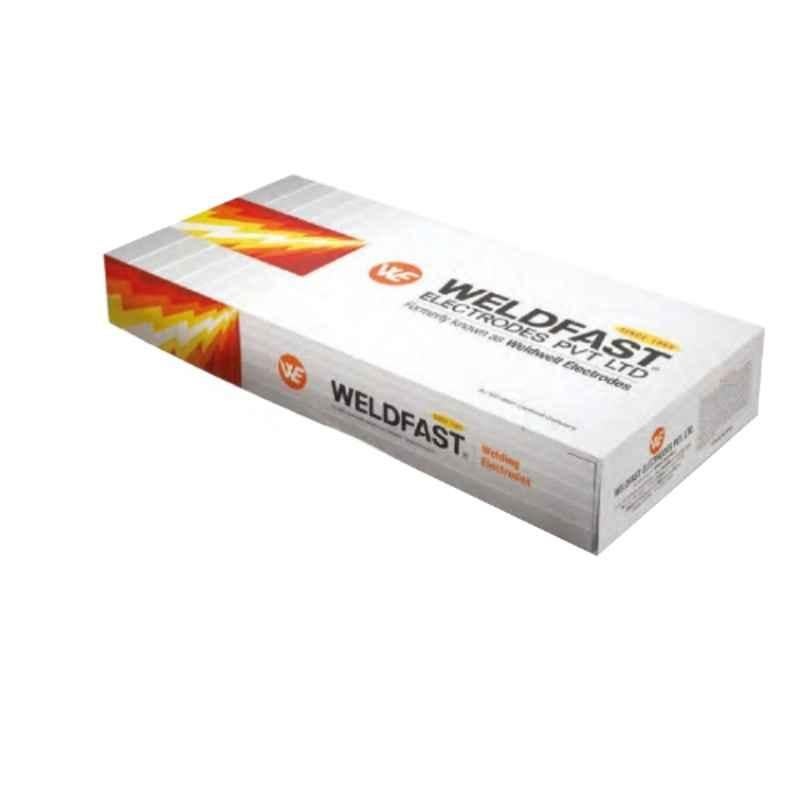

Weldfast Tensal 100D2 20kg 5x450mm Low Alloy High Tensile Steel Electrode Box

Name: Weldfast Tensal 100D2 20kg 5x450mm Low Alloy High Tensile Steel Electrode Box
Brand: Weldfast
SKU: MSN2KM1O3Z289V
Price: 3485 INR
Availability: OutOfStock

₹3,485 (Incl. of all taxes)

₹2,953 ₹532 GST

MRP ₹3,888 10% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

A Low Alloy, Low Hydrogen, Iron-Powder Electrode for Welding of High Tensile Steels.
Weld Metal is of Mn-Mo type, It Gives Smooth Arc & Easy Slag Removal & Welds are of Radiographic Quality.

Product Specifications

Brand	Weldfast
Current Range	130-270 Amp
Electrode Diameter	5 mm
Electrode Length	450 mm
Classification	E10018-D2
Elongation	16 % (min)
Impact Energy	27 J
Material	Low Alloy High Tensile Steel
Package Contents	1 Box Contains 4 Packet of Electrodes & 1 Packet Contains 5kg of Electrodes
Redrying Temperature	300 deg C for 1 hr
Series	Tensal 100D2
Standards	AWS A/ SFA-5.5
Additional Details	Mechanical Properties: UTS 690 N/mm² & YS: 600 N/mm² Weld Analysis: C: 0.15 %, Mn: 1.65-2 %, Si: 0.80 %, Ni: 0.90 %, Mo: 0.25-0.45 %, S: 0.03% & P: 0.03% Impact Energy: CVN: 27 J at -50 deg C
Weight	20 kg
Country of origin	India
Manufacturer Details	Weldfast Electrodes Pvt. Ltd. D-57, 58 & 59 Hingna Industrial Area, M.I.D.C. Nagpur - 440 016 (M.S.) INDIA
Packer Details	Weldfast Electrodes Pvt. Ltd. D-57, 58 & 59 Hingna Industrial Area, M.I.D.C. Nagpur - 440 016 (M.S.) INDIA
Common/Generic Name	Electrode
Dimensions LxWxH	22x15x7 cm
Weight	80 kg

Show All Specifications

Product Details

Weldfast Tensal 100D2 20kg 5x450mm Low Alloy High Tensile Steel Electrode Box is a premium quality product from Weldfast . Moglix is a well-known ecommerce platform for qualitative range of Electrodes. All Weldfast Tensal 100D2 20kg 5x450mm Low Alloy High Tensile Steel Electrode Box are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Weldfast Tensal 100D2 20kg 5x450mm Low Alloy High Tensile Steel Electrode Box, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Weldfast products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Weldfast Electrodes .
