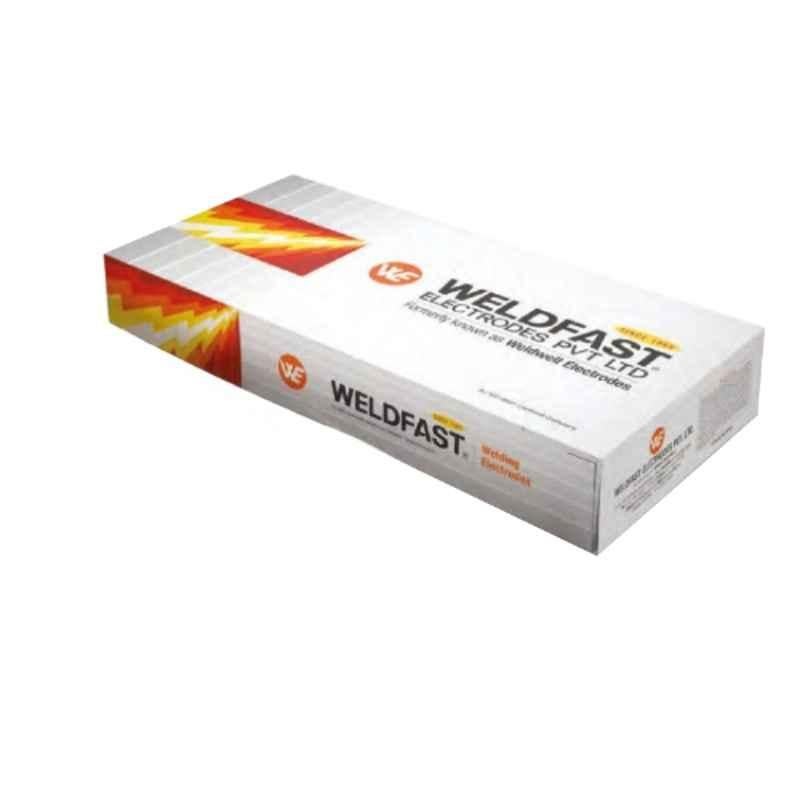

Weldfast Tensal 60 20kg 5x450mm Low Alloy High Tensile Steel Electrode Box

₹3,872 (Incl. of all taxes)

₹3,281 ₹591 GST

MRP ₹4,320 10% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

  • A Basic Coated all Position Electrode for Welding Fine Grained High Tensile Steels.

  • It Gives a Very Smooth Arc, Medium Penetration, Low Spatter & Easy Operation in all Position & The Welds are Of Radiographic Quality.

Product Specifications

Brand
Current Range
130-270 Amp
Electrode Diameter
5 mm
Electrode Length
450 mm
Classification
E8018G
Elongation
19 % (min)
Impact Energy
50-150 J
Material
Low Alloy High Tensile Steel
Package Contents
1 Box Contains 4 Packet of Electrodes & 1 Packet Contains 5kg of Electrodes
Redrying Temperature
300 deg C for 1 hr
Series
Tensal 60
Standards
IS 1395/E55BG129Fe
AWS A/ SFA - 5.5
Additional Details
Mechanical Properties: UTS 550 N/mm² & YS: 460 N/mm²
Weld Analysis: C: 0.06-0.10 %, Mn: 0.90-1.40 %, Si: 0.50 %, Ni: 0.70-1 %, Mo: 0.30-0.50 %, S: 0.03% & P: 0.03%
Impact Energy: CVN: 50-150 J at 27 deg C
Weight
20 kg
Country of origin
India
Manufacturer Details
Weldfast Electrodes Pvt. Ltd. D-57, 58 & 59 Hingna Industrial Area, M.I.D.C. Nagpur - 440 016 (M.S.) INDIA
Packer Details
Weldfast Electrodes Pvt. Ltd. D-57, 58 & 59 Hingna Industrial Area, M.I.D.C. Nagpur - 440 016 (M.S.) INDIA
Common/Generic Name
Electrode
Dimensions LxWxH
22x15x7 cm
Weight
80 kg
Show All Specifications

Product Details

Weldfast Tensal 60 20kg 5x450mm Low Alloy High Tensile Steel Electrode Box is a premium quality product from Weldfast . Moglix is a well-known ecommerce platform for qualitative range of Electrodes. All Weldfast Tensal 60 20kg 5x450mm Low Alloy High Tensile Steel Electrode Box are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Weldfast Tensal 60 20kg 5x450mm Low Alloy High Tensile Steel Electrode Box, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Weldfast products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Weldfast Electrodes .
