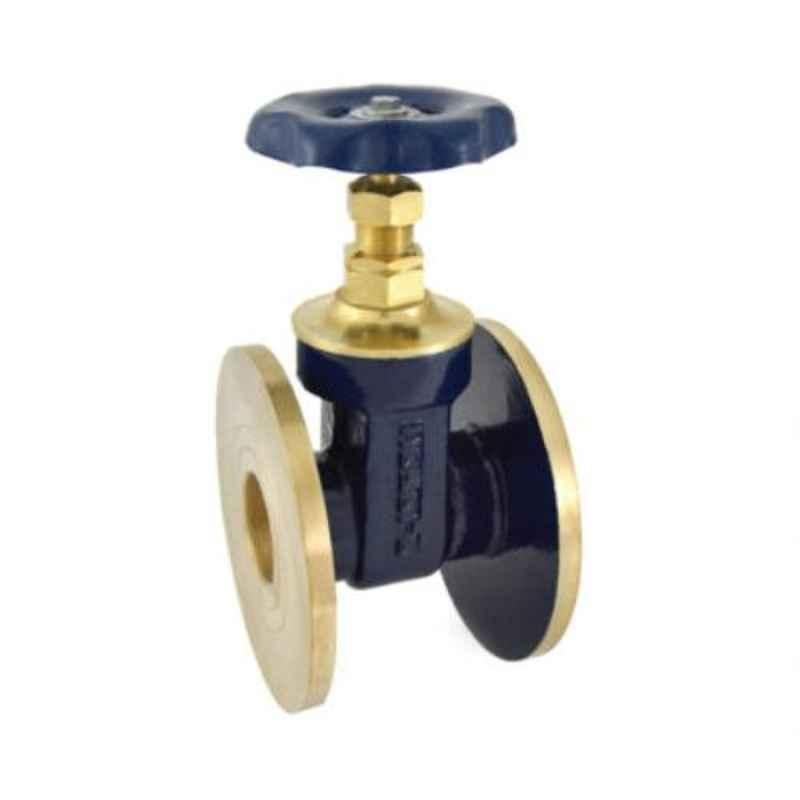

Zoloto 100mm Bronze Flanged Gate Valve, 1036

Name: Zoloto 100mm Bronze Flanged Gate Valve, 1036
Brand: Zoloto
SKU: MSNEKPQD4MEY52
Price: 33719 INR
Availability: OutOfStock

₹33,719 (Incl. of all taxes)

₹28,575 ₹5,144 GST

MRP ₹48,115 29% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Flanged Ends to is 778.
Screwed in Bonnet, Inside Screw, Non-Rising Stem, Integral Seat, Solid Wedge.
Designed Sheet Metal Handwheel for A Firm Grip & Convenient Operation.
Premium Quality Ptfe Gland Packing & Provision for Re-Packing Under Pressure..

Show All Key Features

Product Specifications

Brand	Zoloto
Size	100 mm
Body Material	Bronze
End Connection	Flanged End
Item Code	1036
Suitable For	Water Oil
Material	Screw / Bolt: Carbon Steel (Zinc Plated) Washer: Carbon Steel (Zinc Plated) Handwheel: Sheet Metal (Power Coated Paint)/ Cast Iron Stem: Forged Brass Gland Nut: Forged Brass Gland: Forged Brass Gland Packing: PTFE Stuffing Box: Forged Brass Bonnet: Forged Brass Wedge: Bronze Name Plate: Aluminium
Notes	This Item is Not Returnable Image is only for refrence purpose
Size (Inch)	4 inch
Test Pressure	Shell:1.5 MPa Seat:1.0 MPa
Type	Flanged
Working Temperature	45 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Gate Valve
Dimensions LxWxH	186x112x30 cm
Weight	93 kg

Show All Specifications

Product Details

The Zoloto 100mm Bronze Flanged Gate Valve, 1036 is a top-quality valve designed for various industrial applications. With a body material of bronze and flanged ends to IS 778 standard, this valve offers durability and reliability. The valve features a screwed in bonnet, integral seat, non-rising stem, and a solid wedge for smooth operation. It also includes premium quality PTFE gland packing for a leak-free performance. Suitable for use with water and oil, this valve is designed to withstand temperatures of up to 45 degrees Celsius. Upgrade your system with the Zoloto 100mm Bronze Flanged Gate Valve, 1036.
