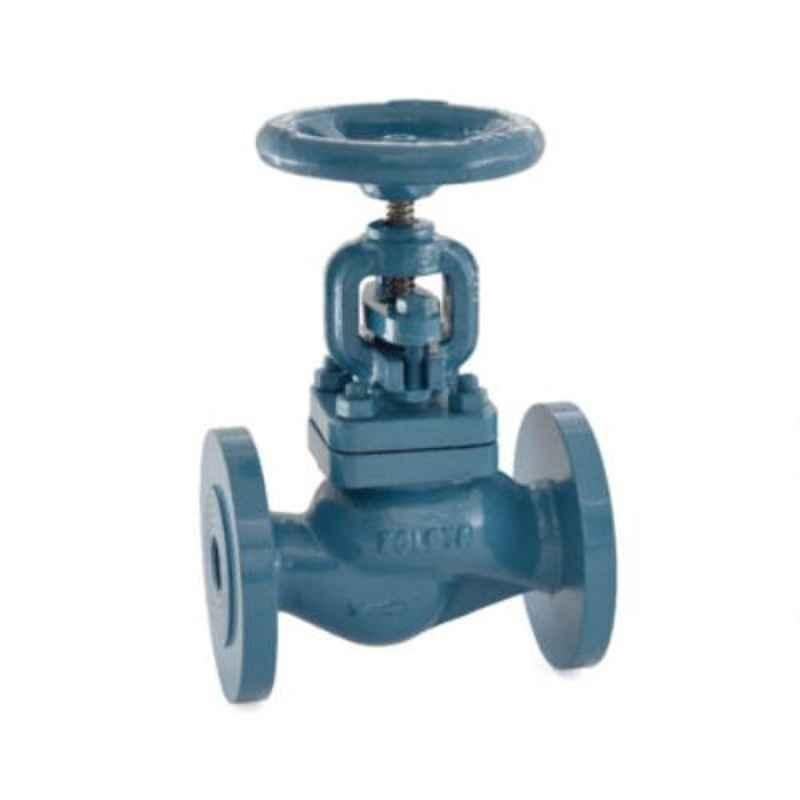

Zoloto 100mm Cast Iron Straight Pattern Flanged Globe Steam Stop Valve, 1065

Name: Zoloto 100mm Cast Iron Straight Pattern Flanged Globe Steam Stop Valve, 1065
Brand: Zoloto
SKU: MSNZ52670LYM9X
Price: 13248 INR
Availability: OutOfStock

₹13,248 (Incl. of all taxes)

₹11,227 ₹2,021 GST

MRP ₹18,985 30% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Flanged Ends to Din 2533 Pn 16Rf.
Straight Pattern, Outside Screw, Yoke Type, Rising Stem.
Provision for Re-Packing Under Pressure & Minimum Pressure Drop Inside the Body Due to Streamlined Body Design.

Product Specifications

Brand	Zoloto
Body Material	Cast Iron
End Connection	Flanged Ends
Item Code	1065
Material	Nut: Carbon Steel Washer: Carbon Steel Handwheel: Cast Iron Stem: Stainless Steel Yoke Bush: Bronze Locking Screw: Carbon Steel Gland Flange: Cast Iron Bonnet: Cast Iron Gland Packing: Braided Graphited Asbestos Studs: Carbon Steel Nuts: Carbon Steel Gasket: Steam Jointing Sheet
Notes	This Item is Not Returnable Image is only for refrence purpose
Size	100 mm
Size (Inch)	4 inch
Suitable For	Water Steam
Test Pressure	Shell:370 psig Seat:185 psig
Type	Flanged
Working Temperature	220 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Globe Valve
Dimensions LxWxH	79x48x16 cm
Weight	39.4 kg

Show All Specifications

Product Details

This Zoloto 100mm Cast Iron Straight Pattern Flanged Globe Steam Stop Valve, 1065 is a high-quality globe valve suitable for water and steam applications. With a size of 4 inches and a working temperature of up to 220Â°C, this valve features flanged ends to Din 2533 Pn 16Rf, a straight pattern, outside screw, yoke type, rising stem, and provision for re-packing under pressure. Its streamlined body design ensures minimum pressure drop inside the body, making it an efficient and reliable choice for your industrial needs. Trust Zoloto for durable and dependable valve solutions.
