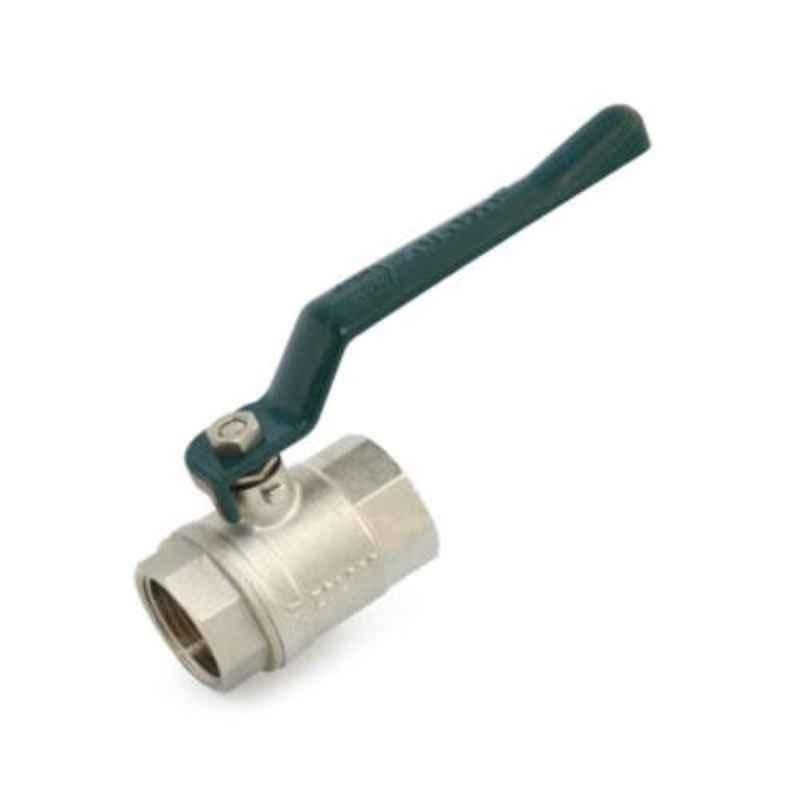

Zoloto 100mm Two Piece Design Forged Brass Screwed Ball Valve, 1008B

Name: Zoloto 100mm Two Piece Design Forged Brass Screwed Ball Valve, 1008B
Brand: Zoloto
SKU: MSNG9VN707JDKP
Price: 16017 INR
Availability: OutOfStock

₹16,017 (Incl. of all taxes)

₹13,575 + ₹2,442 GST

MRP ₹22,969 30% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Screwed Female Ends to is 554 / Bs 21 / Iso 7.
Full Bore, Two Piece Design.
Quarter Turn, Lever Operated.
Provided with Forged Brass Hard Chrome Plated Ball.
Premium Quality Ptfe Gland Packing & Seating..

Show All Key Features

Product Specifications

Brand	Zoloto
Bore Type	Full
Nominal Size	100 mm
Number of Ways	2
Body Material	Forged Brass
Design	Two Piece
End Connection	Screwed End
Item Code	1008 B
Mode of Operation	Lever Operated
Seat Test Pressure	225 psig
Thread Type	BSP Female
Additional Details	Bonnet Material: Forged Brass Body Seat Ring Material: PTFE Thrust Washer Material: PTFE Gland Packing Material: PTFE Stem Material: Forged Brass Gland Material: Forged Brass Lever Material: Aluminium Alloy / Mild Steel Nut Material: Brass (Chrome Plated)
Ball Material	Forged Brass
Finish	Chrome Finish
Notes	This Item is Not Returnable Image is only for refrence purpose
Size (Inch)	4 inch
Suitable For	Water, Oil
Test Pressure	Shell: 350 psig Seat: 225 psig
Type	Screwed
Working Pressure	Shell: 350 psig Seat: 225 psig
Working Temperature	220 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Ball Valve
Dimensions LxWxH	128x77x20 cm
Weight	63.8 kg

Show All Specifications

Product Details

Introducing the Zoloto 100mm Two Piece Design Forged Brass Screwed Ball Valve, a must-have for any industry requiring reliable flow control. This ball valve, designed under the prominent brand Zoloto, falls under the category name \
