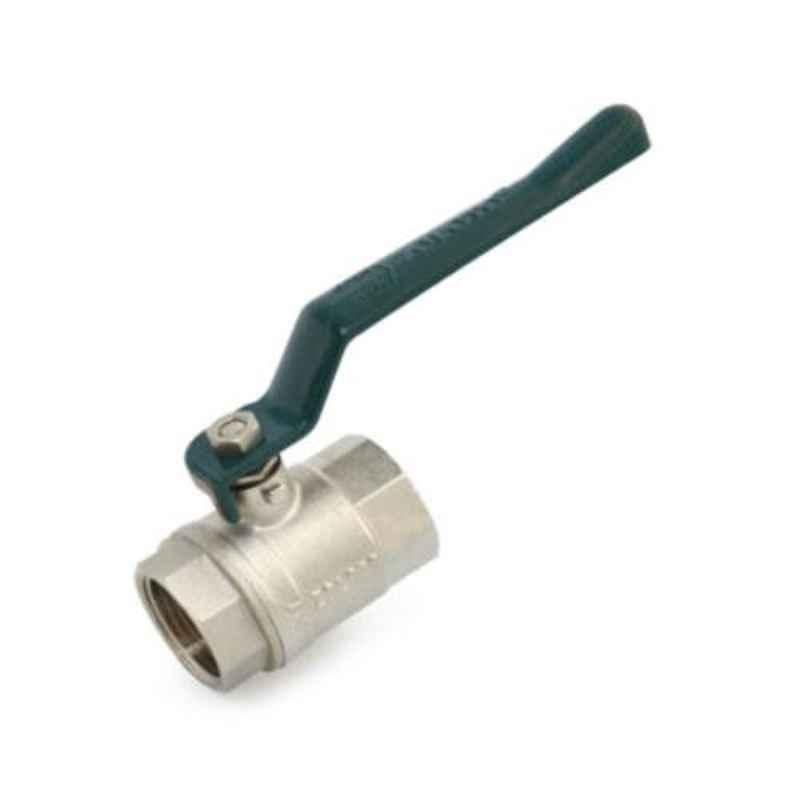

Zoloto 10mm Two Piece Design Forged Brass Screwed Ball Valve, 1008B

Name: Zoloto 10mm Two Piece Design Forged Brass Screwed Ball Valve, 1008B
Brand: Zoloto
SKU: MSNE5N8313N0KL
Price: 517 INR
Availability: OutOfStock

₹517 (Incl. of all taxes)

₹438 + ₹79 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Screwed Female Ends to is 554 / Bs 21 / Iso 7.
Full Bore, Two Piece Design.
Quarter Turn, Lever Operated.
Provided with Forged Brass Hard Chrome Plated Ball.
Premium Quality Ptfe Gland Packing & Seating..

Show All Key Features

Product Specifications

Brand	Zoloto
Bore Type	Full
Nominal Size	10 mm
Number of Ways	2
Body Material	Forged Brass
Design	Two Piece
End Connection	Screwed End
Item Code	1008 B
Mode of Operation	Lever Operated
Seat Test Pressure	225 psig
Thread Type	BSP Female
Additional Details	Bonnet Material: Forged Brass Body Seat Ring Material: PTFE Thrust Washer Material: PTFE Gland Packing Material: PTFE Stem Material: Forged Brass Gland Material: Forged Brass Lever Material: Aluminium Alloy / Mild Steel Nut Material: Brass (Chrome Plated)
Ball Material	Forged Brass
Finish	Chrome Finish
Notes	This Item is Not Returnable Image is only for refrence purpose
Size (Inch)	3/8 inch
Suitable For	Water, Oil
Test Pressure	Shell: 350 psig Seat: 225 psig
Type	Screwed
Working Pressure	Shell: 350 psig Seat: 225 psig
Working Temperature	220 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Ball Valve
Dimensions LxWxH	2x2x1 cm
Weight	1 kg

Show All Specifications

Product Details

Introducing the Zoloto 10mm Two Piece Design Forged Brass Screwed Ball Valve, 1008 B, a high-quality addition to our Ball Valves category. Manufactured by the reputable brand Zoloto, this valve is designed to withstand a working pressure shell of 350 psig, ensuring durability and reliability. Its lever-operated mode of operation enables easy and convenient use. With a size of 3/8 inch, this valve boasts a full bore design, providing optimal flow performance. Tested to withstand a seat pressure of 225 psig, it guarantees a secure and leak-free sealing. With a working temperature of 220 deg C, it is suitable for various applications. The valve's nominal size of 10 mm makes it perfect for smaller systems. Trust the Zoloto 10mm Two Piece Design Forged Brass Screwed Ball Valve, 1008 B to deliver exceptional performance and reliability.
