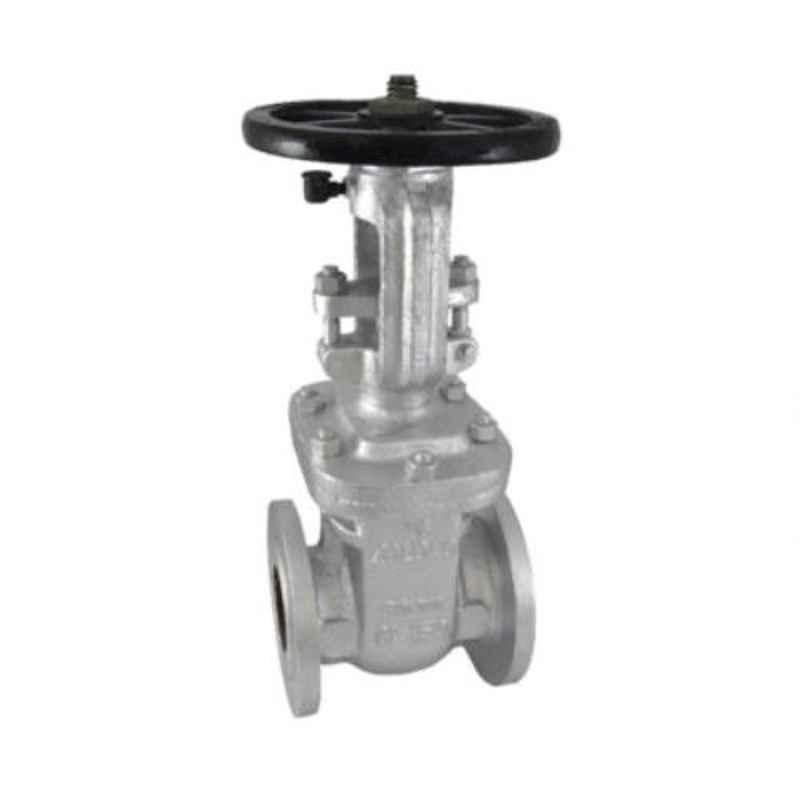

Zoloto 125mm Cast Steel Yoke Type Class-150 Flanged Gate Valve, 1077

Name: Zoloto 125mm Cast Steel Yoke Type Class-150 Flanged Gate Valve, 1077
Brand: Zoloto
SKU: MSN75DQZ0GOV92
Price: 29777 INR
Availability: OutOfStock

₹29,777 (Incl. of all taxes)

₹25,236 ₹4,541 GST

MRP ₹42,688 30% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Design Standard�Bs En Iso 10434 / Api 600.
Bolted Bonnet, Outside Screw, Yoke Type & Rising Stem.

Product Specifications

Brand	Zoloto
Size	125 mm
Body Material	Cast Iron
End Connection	Flanged End
Item Code	1077
Suitable For	Water Oil Steam
Additional Details	Body Seat Ring: Stainless Steel Wedge: Cast Steel Wedge Facing Ring: Stainless Steel Stem: Stainless Steel Studs: Alloy Steel Nuts: H.T. Steel Gasket: Steam Jointing Sheet Back Seat Bush: Aluminium Bronze Gland Packing: Braided Graphite Pin for Eye Bolt: Stainless Steel Gland: Stainless Steel
Notes	This Item is Not Returnable Image is only for refrence purpose
Size (Inch)	5 inch
Test Pressure	Shell:425 psig Seat:150
Type	Yoke
Working Temperature	425 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Gate Valve
Dimensions LxWxH	178x107x38 cm
Weight	88.6 kg

Show All Specifications

Product Details

The Zoloto 125mm Cast Steel Yoke Type Class-150 Flanged Gate Valve, 1077 is a reliable and versatile valve designed for a variety of applications. With a size of 125mm and flanged end connections, this gate valve is made from durable cast steel to ensure long-lasting performance. It operates at temperatures up to 425 deg C and is suitable for use with water, oil, and steam.This gate valve features a stainless steel body seat ring, cast steel wedge, stainless steel wedge facing ring, stainless steel stem, alloy steel studs, H.T. steel nuts, steam jointing sheet gasket, aluminium bronze back seat bush, braided graphite gland packing, and stainless steel pin for eye bolt and gland. Designed to BS En Iso 10434 / API 600 standards, the bolted bonnet, outside screw, yoke type, and rising stem design ensure ease of use and maintenance. Choose the Zoloto 125mm Cast Steel Yoke Type Class-150 Flanged Gate Valve, 1077 for high-quality performance in your industrial or commercial setting.
