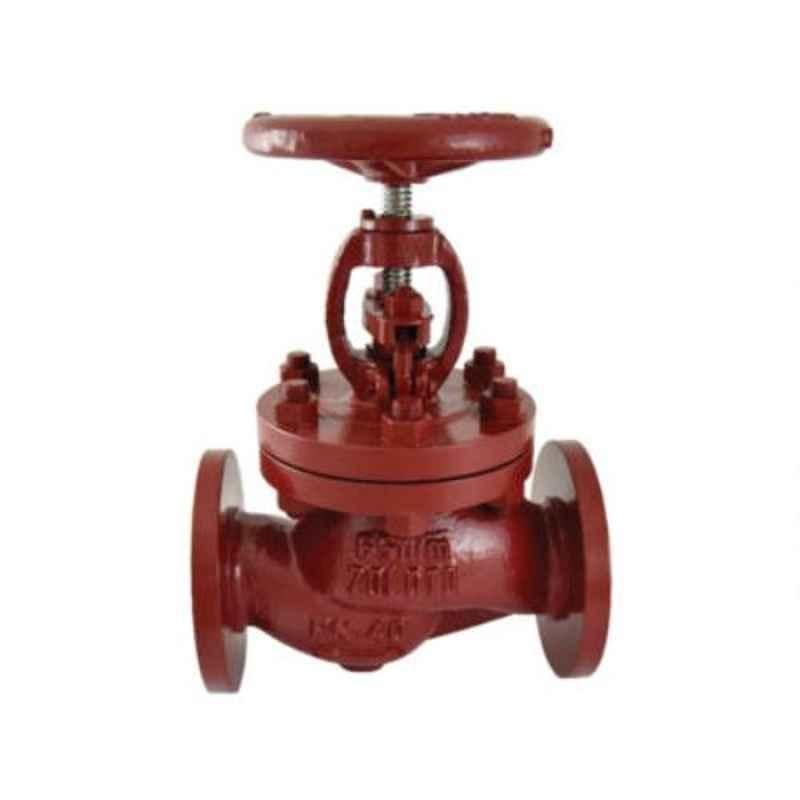

Zoloto 150mm Cast Steel Flanged Globe Steam Stop Valve, 1071

Name: Zoloto 150mm Cast Steel Flanged Globe Steam Stop Valve, 1071
Brand: Zoloto
SKU: MSNG9VN704JDKP
Price: 53281 INR
Availability: OutOfStock

₹53,281 (Incl. of all taxes)

₹45,151 + ₹8,130 GST

MRP ₹76,385 30% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Flanged Ends to Din 2545 Pn�40.
Straight Pattern, Outside Screw, Yoke Type, Rising Stem & Bolted Bonnet.
Minimum Pressure Drop Inside the Body Due to Streamlined Body Design & Handwheel Operated..

Product Specifications

Brand	Zoloto
Body Material	Cast Iron
End Connection	Flanged Ends
Item Code	1071
Material	Nut: Carbon Steel Washer: Carbon Steel Handwheel: Malleable Iron Stem: Stainless Steel Yoke Bush: Aluminium Bronze Locking Screw: Carbon Steel Gland Flange: Cast Steel Gland: Stainless Steel Bonnet: Cast Steel Gland Packing: Braided�Graphite Gasket: Spiral Wound S.S (Type 316) Graphite�Filled Back Seat Bush: Aluminium Bronze
Notes	This Item is Not Returnable Image is only for refrence purpose
Size	150 mm
Size (Inch)	6 inch
Suitable For	Water Oil Steam
Test Pressure	Shell:870 psig Seat:580 psig
Type	Flanged
Working Temperature	425 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Globe Valve
Dimensions LxWxH	317x191x38 cm
Weight	158.5 kg

Show All Specifications

Product Details

The Zoloto 150mm Cast Steel Flanged Globe Steam Stop Valve, 1071 is designed for high-pressure applications where precise control of steam, water, or oil flow is required. This flanged valve features a durable cast iron body and flanged ends to Din 2545 Pn?40 for easy installation. The straight pattern design, outside screw, yoke type, rising stem, and bolted bonnet ensure reliable operation. The streamlined body minimizes pressure drop while the handwheel allows for manual operation. With a working temperature of 425 deg C, this valve is suitable for various industrial applications. Trust Zoloto for quality valves that deliver exceptional performance.
