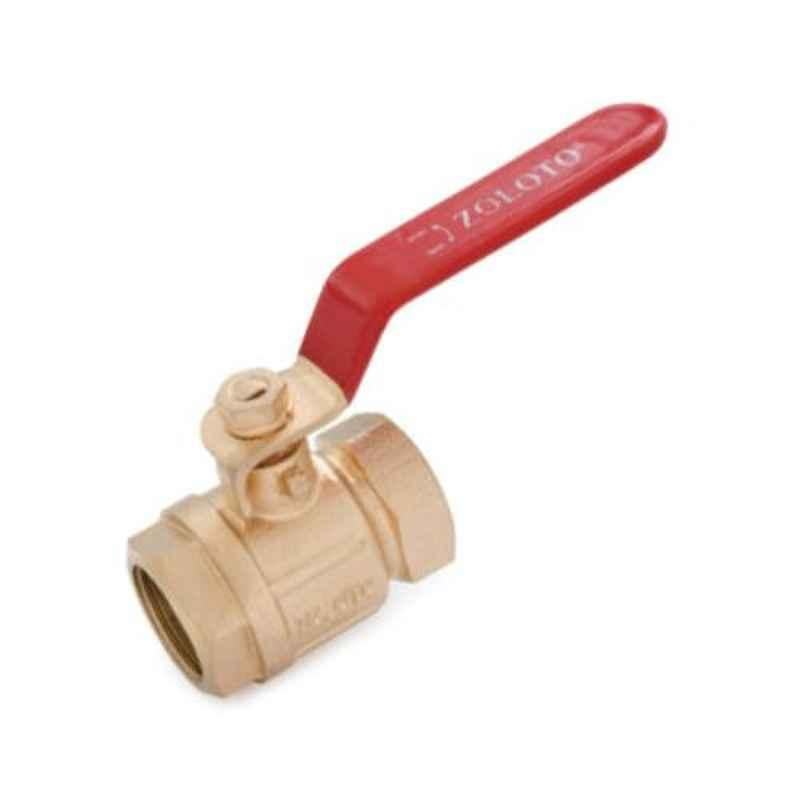

Zoloto 15mm Bronze Screwed Ball Valve, 1008

Name: Zoloto 15mm Bronze Screwed Ball Valve, 1008
Brand: Zoloto
SKU: MSNNKQG2DQ1Z9X
Price: 1004 INR
Availability: OutOfStock

₹1,004 (Incl. of all taxes)

₹855 + ₹149 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Screwed Female Ends to is 554 / Bs 21 / Iso 7.
Full Bore, Two Piece Design.
Quarter Turn, Lever Operated.
Provided with Stainless Steel Ball.
Premium Quality Ptfe Gland Packing & Seating..

Show All Key Features

Product Specifications

Brand	Zoloto
Bore Type	Full
Nominal Size	15 mm
Number of Ways	2
Body Material	Bronze
Design	Two Piece
End Connection	Screwed End
Item Code	1008
Seat Test Pressure	225 psig
Thread Type	BSP Female
Additional Details	Bonnet Material: Forged Brass Body Seat Ring Material: PTFE Thrust Washer Material: PTFE Gland Packing Material: PTFE Stem Material: Stainless Steel Gland Material: Forged Brass Lever Material: Mild Steel Nut Material: Carbon Steel
Ball Material	Stainless Steel
Notes	This Item is Not Returnable Image is only for refrence purpose
Size (Inch)	1/2 inch
Standards	Stem: ASTM A276 Type 410 Gland: IS 6912 Gr. FLB Bonnet: IS 318 GR. LTB 2 / IS 6912 Gr. FLB Body: IS 318 Gr. LTB 2 Ball: ASTM A276 Type 304 / ASTM A351 Gr. CF8
Suitable For	Water, Oil
Testing Pressure	Shell: 350 psig
Type	Screwed
Working Temperature	220 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Valve
Dimensions LxWxH	4x3x cm
Weight	2 kg

Show All Specifications

Product Details

The Zoloto 15mm Bronze Screwed Ball Valve, 1008 is a high-quality ball valve designed for industrial applications. With a seat test pressure of 225 psig and a working temperature of 220 deg C, this valve is built to withstand demanding conditions. The two-piece design and quarter turn operation make it easy to use, while the stainless steel ball and premium quality PTFE gland packing ensure reliable performance. With screwed female ends to IS 554 / BS 21 / ISO 7 standards, this valve is a durable and efficient choice for your plumbing needs. Upgrade to the Zoloto 15mm Bronze Screwed Ball Valve, 1008 for long-lasting performance and peace of mind.
