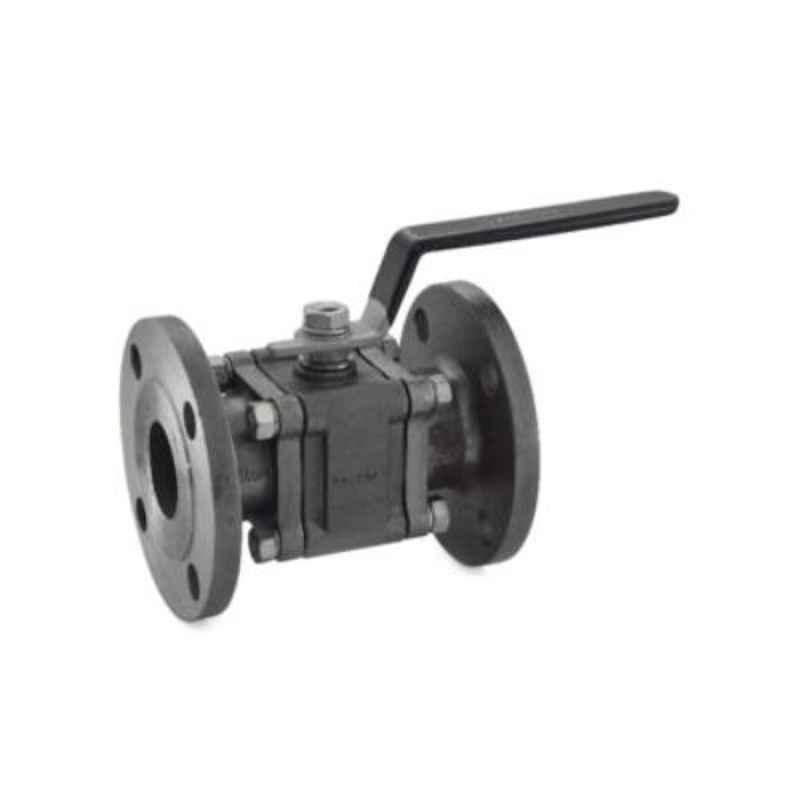

Zoloto 15mm Cast Steel Class-150 Flanged Three Piece Design Ball Valve, 1089

Name: Zoloto 15mm Cast Steel Class-150 Flanged Three Piece Design Ball Valve, 1089
Brand: Zoloto
SKU: MSN75DQZ0R7V92
Price: 3183 INR
Availability: OutOfStock

₹3,183 (Incl. of all taxes)

₹2,698 + ₹485 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Design Standard Bs En Iso 17292.
Screwed Female Ends to Bsp.
Flanged Ends to Ansi B16.5 Class-150.
Three Piece Design & Superb in Quality & Performance.

Show All Key Features

Product Specifications

Brand	Zoloto
Bore Type	Full
Nominal Size	15 mm
Number of Ways	3
Body Material	Cast Iron
Body Test Pressure	300 psig
End Connection	Flanged End
Item Code	1089
Seat Test Pressure	200 psig
Additional Details	Ball: Stainless Steel Thrust Washer: PTFE 35% Carbon Filled Stem: Stainless Steel Packing Ring: PTFE 35% Carbon Filled Gland: Stainless Steel Cup Washer: Stainless Steel Nut: H.T Steel Spring Washer: Spring Steel / Stainless Steel Lever: Carbon Steel Body Seat Ring: PTFE Gasket: PTFE
Notes	This Item is Not Returnable Image is only for refrence purpose
Size (Inch)	1/2 inch
Suitable For	Water, Oil, Steam
Type	Flanged
Working Temperature	220 deg C
Country of origin	India
Manufacturer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Packer Details	S.V. Enterprises, 3631 gali piao wali chawri bazar , Delhi, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Ball Valve
Dimensions LxWxH	13x8x9 cm
Weight	6.5 kg

Show All Specifications

Product Details

Experience unparalleled quality and performance with the Zoloto 15mm Cast Steel Class-150 Flanged Three Piece Design Ball Valve, 1089. This ball valve, designed to BS EN ISO 17292 standards, features screwed female ends to BSP and flanged ends to ANSI B16.5 Class-150. With a seat test pressure of 200 psig and a body test pressure of 300 psig, this valve is built to withstand high pressures. The cast iron body material ensures durability, while the 1/2 inch size and working temperature of 220 deg C make it versatile for various applications. Trust Zoloto for exceptional quality and reliability in every valve.
